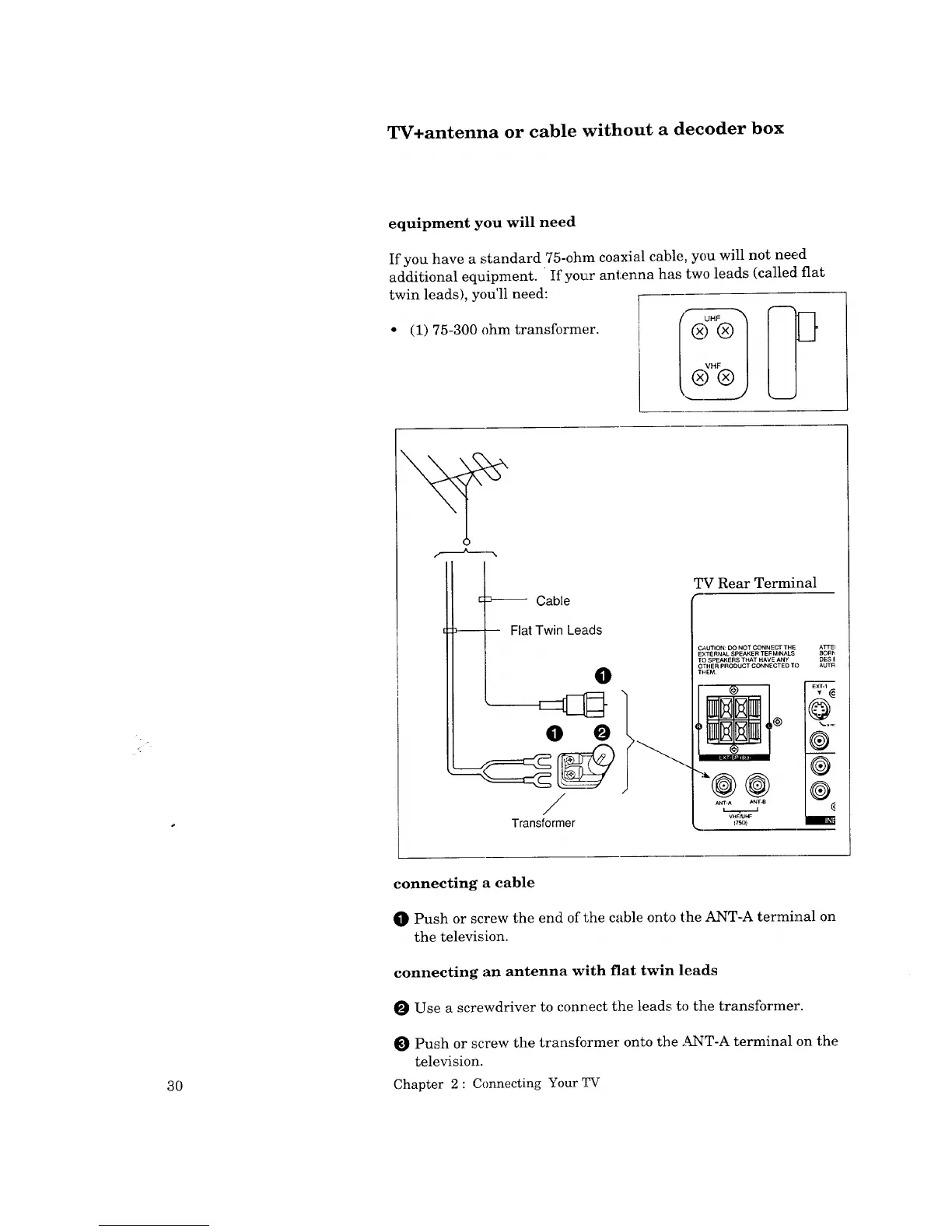

TV+antenna or cable without a decoder box
equipment you will need
If you have a standard 75-ohm coaxial cable, you will not need
additional equipment. If your antenna has two leads (called flat
twin leads), you'll need:
f_U_F_j___ /_
" (1) 75-300 ohm transformer. /_)VF C)H D
Cable
_-_ -- Flat Twin Leads
0
0 0
/
Transformer
TV Rear Terminal
CAUTION: DO NOT CONNECT THE ATrEI
EXTERNAL SPEAKER TEF MINALS BOPb
TO SPEAKERS THAT HAVE ANY DES [
OTHER PROOUCT CONNECTED TO AUTR
THEM.
@
@
VHF_HF
EXT-1
@
®
®
®
30
connecting a cable
O Push or screw the end of the cable onto the ANT-A terminal on
the television.
connecting an antenna with fiat twin leads
O Use a screwdriver to connect the leads to the transformer.
O Push or screw the transformer onto the ,MNT-A terminal on the
television.
Chapter 2: Connecting Your TV
