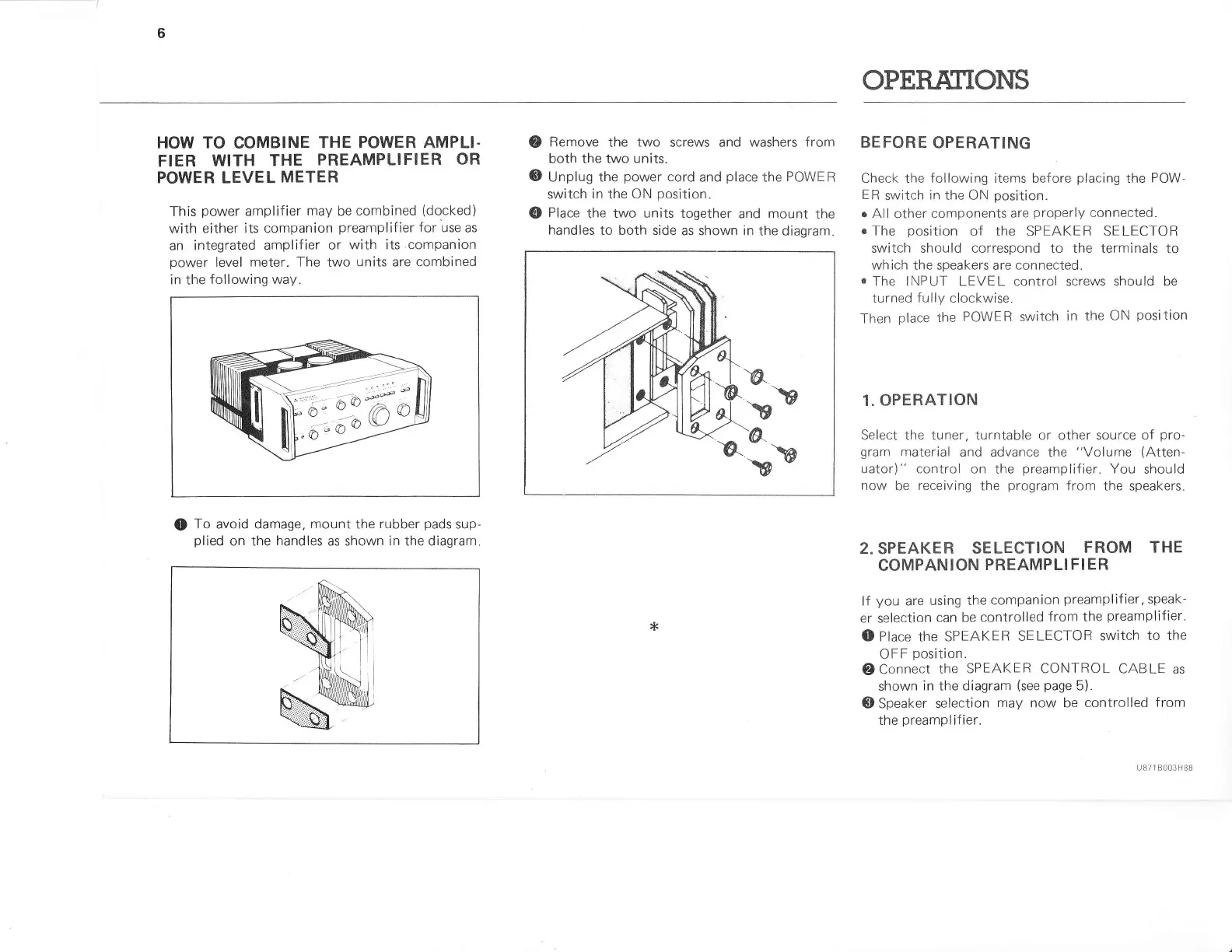

OPERAHONS
-@
\EY
a
vv
HOW TO COMBINE
THE
POWER
AMPLI.
FIER
WITH THE
PREAMPLIFIER
OR
POWER LEVEL
METER
This
power
amplifier
may
be
combined
(docked)
with
either its companion
preamplif
ier for use
as
an
integrated amplifier
or
with its.companion
power
level
meter. The two
units are combined
in
the
following way.
(D
Remove
the
two
screws and washers
from
both the two
units.
@
Unplug the
power
cord and
place
the
POWER
switch
in
the ON
position.
@
Place
the two units together
and mount
the
handles to both
side as shown in
the diagram.
BEFORE
OPERATING
Check
the
following
items before
placing
the
POW-
ER
switch
in
the ON
position.
o
All other
components are
properly
connected.
c
The
position
of the SPEAKER SELECTOB
switch should correspond
to the terminals to
which the speakers are
connected.
r
The INPUT
LEVEL
control screws should be
turned fully clockwise.
Then
place
the
POWER switch
in the
ON
position
1.
OPERATION
Select the tuner, turntable or other source
of
pro-
gram
material
and advance
the
"Volume
(Atten-
uator)" control on
the
preamplifier.
You
should
now
be
receiving
the
program
from
the speakers.
2. SPEAKER
SELECTION
FROM THE
COMPAN
ION
PREAMPLI
FI ER
lf
you
are
using the
companion
preamplifier,
speak-
er selection
can be
controlled
from the
preamplif
ier.
0 Place the SPEAKER
SELECTOR
switch
to the
OFF
position.
OConnect
the
SPEAKEB CONTBOL
CABLE as
shown
in
the
diagram
(see
page
5).
@
Speaker
selection
may
now be
controlled from
the
preamplifier.
Q
To avoid damage,
mount
the rubber
pads
sup-
plied
on the
handles
as shown in the diagram.
u871 8003H88
