7.1 Optional Macintosh Adapter AD-A205 settings
The AD-A205 Macintosh Adapter(option) allows you to
take an advantage of the built in video capabilities of
your Macintosh computer with the monitor.

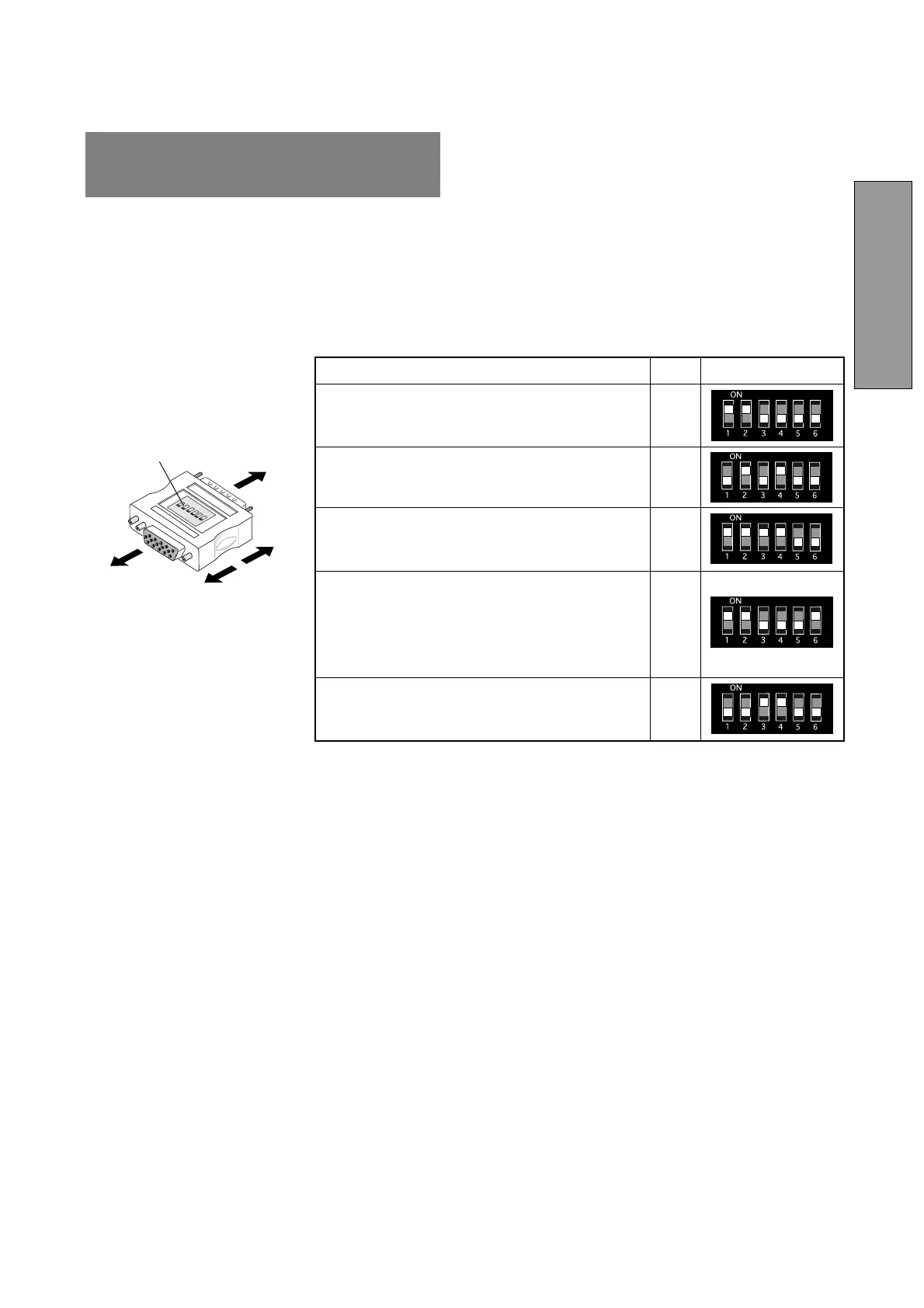

(1) Set the dip switches of the adapter, before connect-
ing to the computer.
Apple Macintosh
Switch
ON
Switch Setting
2,4
Macintosh LC, LCII
Macintosh LC III, LC475, LC630
1,2
Macintosh Quadra 610, 650, 700, 800, 840AV, 900, 950
Macintosh Centris 610, 650, 660AV
Macintosh IIvi, IIvx
Power Macintosh 4400, G3
Performa 6260, 6310, 6410, 6420
Power Macintosh 6100, 6100AV, 6200, 6300
Power Macintosh 7100AV, 7200, 7300, 7500, 7600
Power Macintosh 8100, 8100AV, 8500, 8600
Power Macintosh 9500, 9600
Workgroup Server 7350, 8150, 9150, 9650
1,2,3,4
1,2,6
ON
ON
1 2 3
4
5 6
AD-A205
ON
OFF
M
IT
S
U
B
IS
H
I
Macintosh
Display monitor
Dip Switches
(2) Set the dip switches according to the following chart.
By using the following chart, you can choose a main
resolution, quickly.
If you wish to use other resolutions, refer to the "AD-
A205 Mac Adapter Setting Chart” on the next page.
