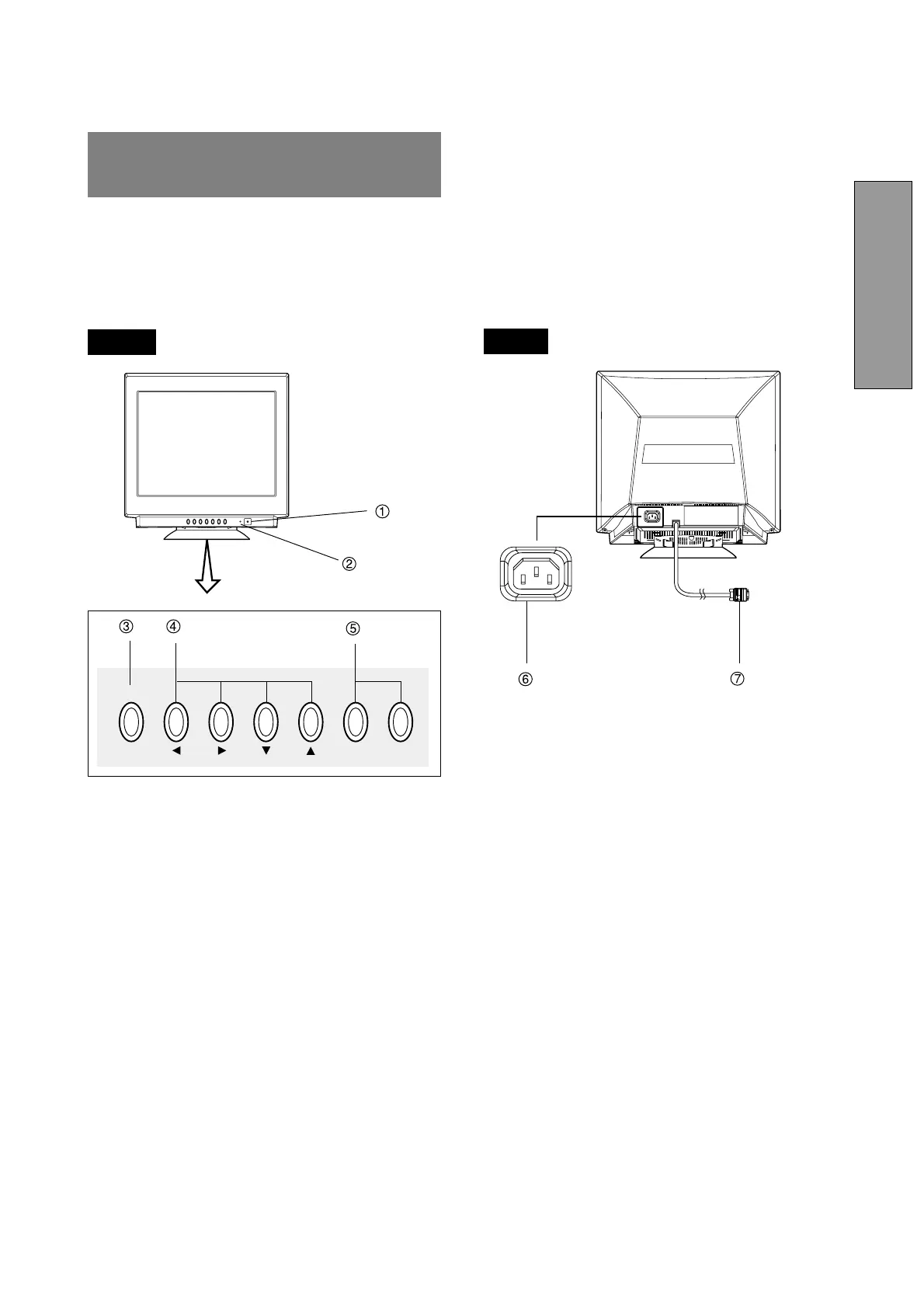

2.1 Control Names
See Figures 3 and 4 for the location of the user controls,
indicator and connectors.
Each part is identified by number and is described
individually.
REAR
2
2
PART NAME
FRONT
Figure 3
6. AC POWER CONNECTOR
7. SIGNAL INPUT CONNECTOR: DB9-15P
Figure 4
2.2 Function
1. POWER SWITCH: A push-on / push-off switch for AC
power.
2. POWER-ON INDICATOR: This indicator illuminates
green when AC power is on, and illuminates orange
when the monitor is in the power management modes.
3. FPM (FINE PICTURE MODE) / OSD OFF BUTTON:
•Without OSD screen, push to on/off the contrast
enhancement function.
•With OSD screen, push to turn the OSD screen off.
4. ITEM SELECT BUTTONS: Push to select the item icon.
5. FUNCTION ADJUST BUTTONS: Push the adjust
buttons to adjust the image on the screen.
