3-2
CRT BOARD

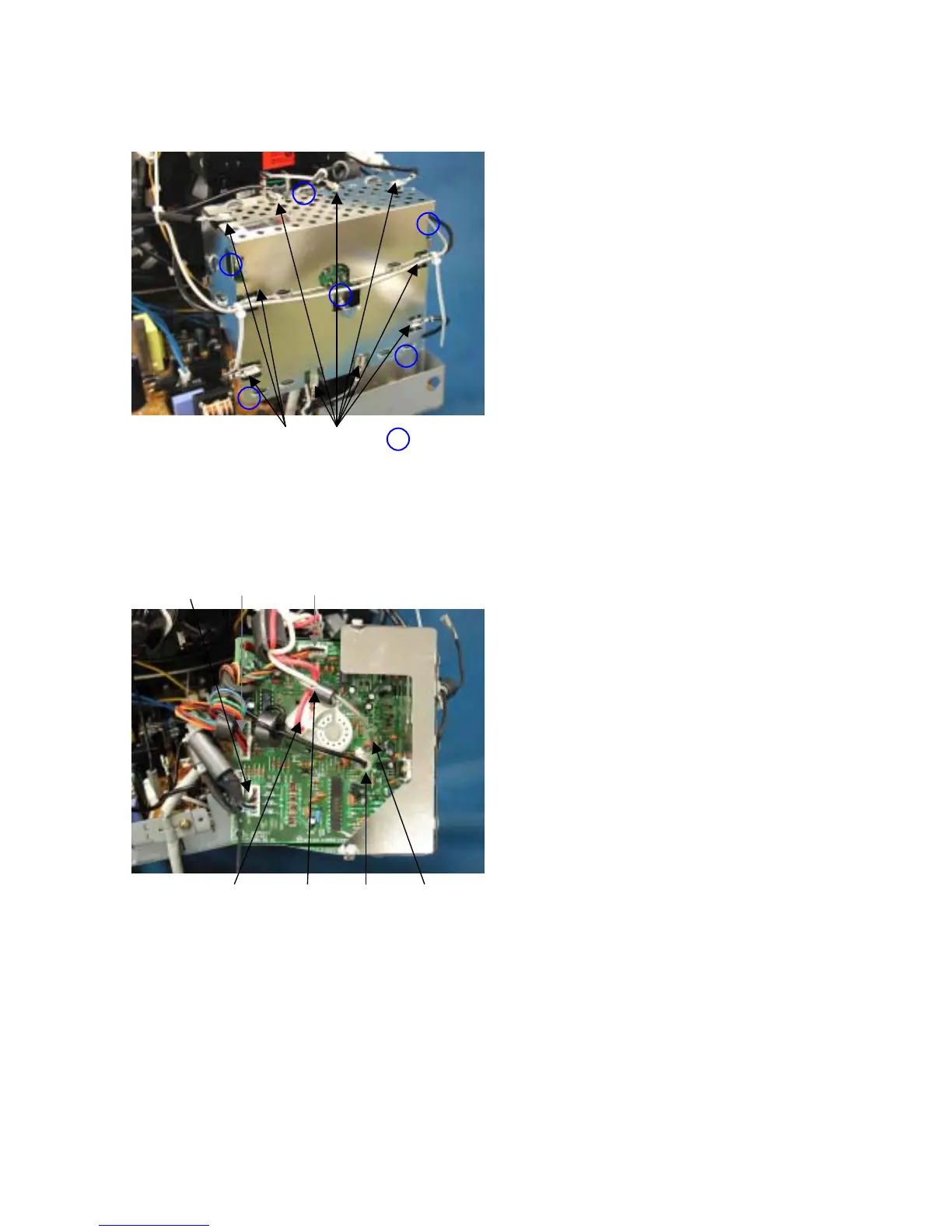

1. Ten terminals are removed, and six solder is removed.
2. Disconnect the connectors “S201”, “S202”, “S203” and “GND”.
3. Unsolder the wires “White wire”, “Red wire” and “G2”.
S202 S201 S203
Red wire White wire GND G2
terminals solder
