Diamond Pro 750
SB
/ Diamond Plus 93
SB
5
Quick Start
To attach the Diamond Pro 750
SB
/ Diamond Plus 93
SB
monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. If necessary, install the display card into your system. For more information, refer to the display card
manual.
3. For the PC: Connect the 15-pin mini D-SUB of the captive signal cable to the connector of the display card
in your system (Figure A.1). Tighten all screws.
For the Mac: Connect the Diamond Pro 750
SB
/ Diamond Plus 93
SB
Macintosh cable adapter (not included)
to the monitor connector on the Macintosh (Figure B.1). Attach the 15-pin mini D-SUB end of the captive
signal cable to the Diamond Pro 750
SB
/ Diamond Plus 93
SB
Macintosh cable adapter on the computer
(Figure B.1). Tighten all screws.
4. Connect one end of the power cord to the Diamond Pro 750
SB
/ Diamond Plus 93
SB
monitor and the other
end to the power outlet (Figure C.1).
5. Turn on the monitor (Figure D.1) and the computer.
NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual.

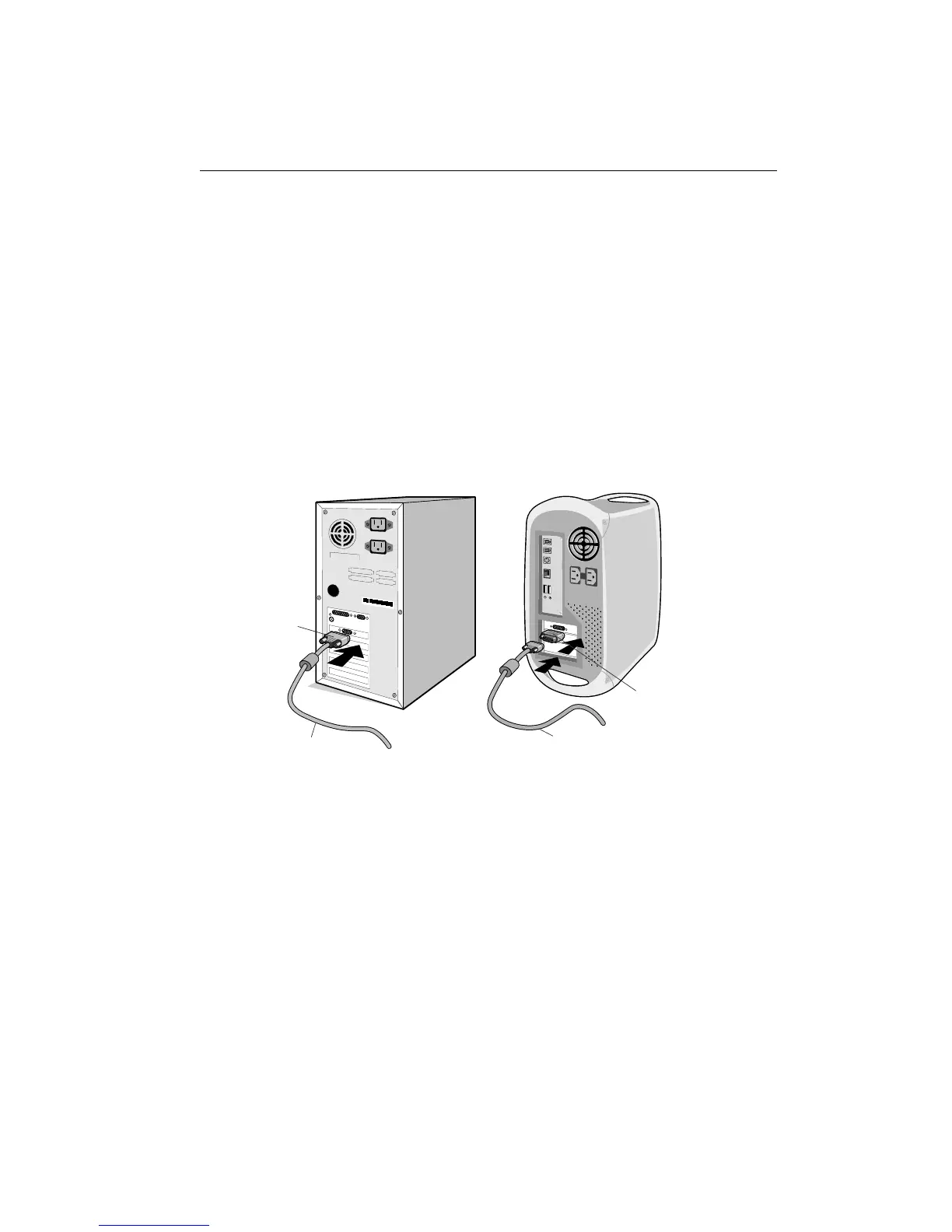

Figure A.1
15-pin
mini
D-SUB
Captive Signal Cable
Figure B.1
Mac Adapter
(Not Included)
Captive Signal Cable
To Next Page
