3-3
MAIN BOARD

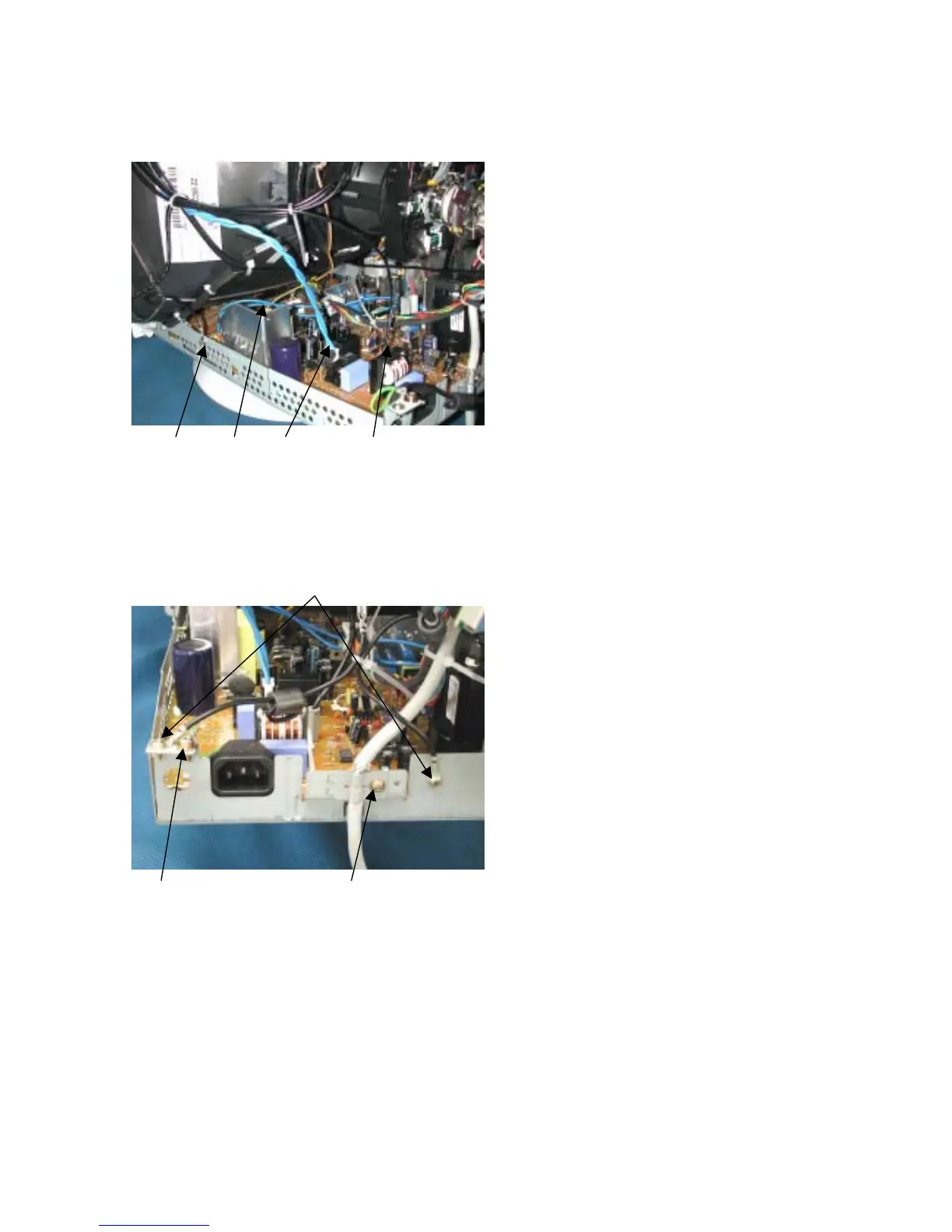

1. Disconnect the connectors “S102”, “S701” and “GND”.
2. Remove the screw (P-#2CRBITS*3*8*15BF).
3. Remove the two screws (P-#2CRBITS*3*8*15BF), screw (PL-CPTS*3*8*15BF)
and screw (PL-CPIMS*4*10*15BF).
Screw S701 S101 GND
Screw Screw
(PL-CPIMS*4*10*15BF) (PL-CPTS*3*8*15BF)
Screw
(P-#2CRBITS*3*8*15BF)
