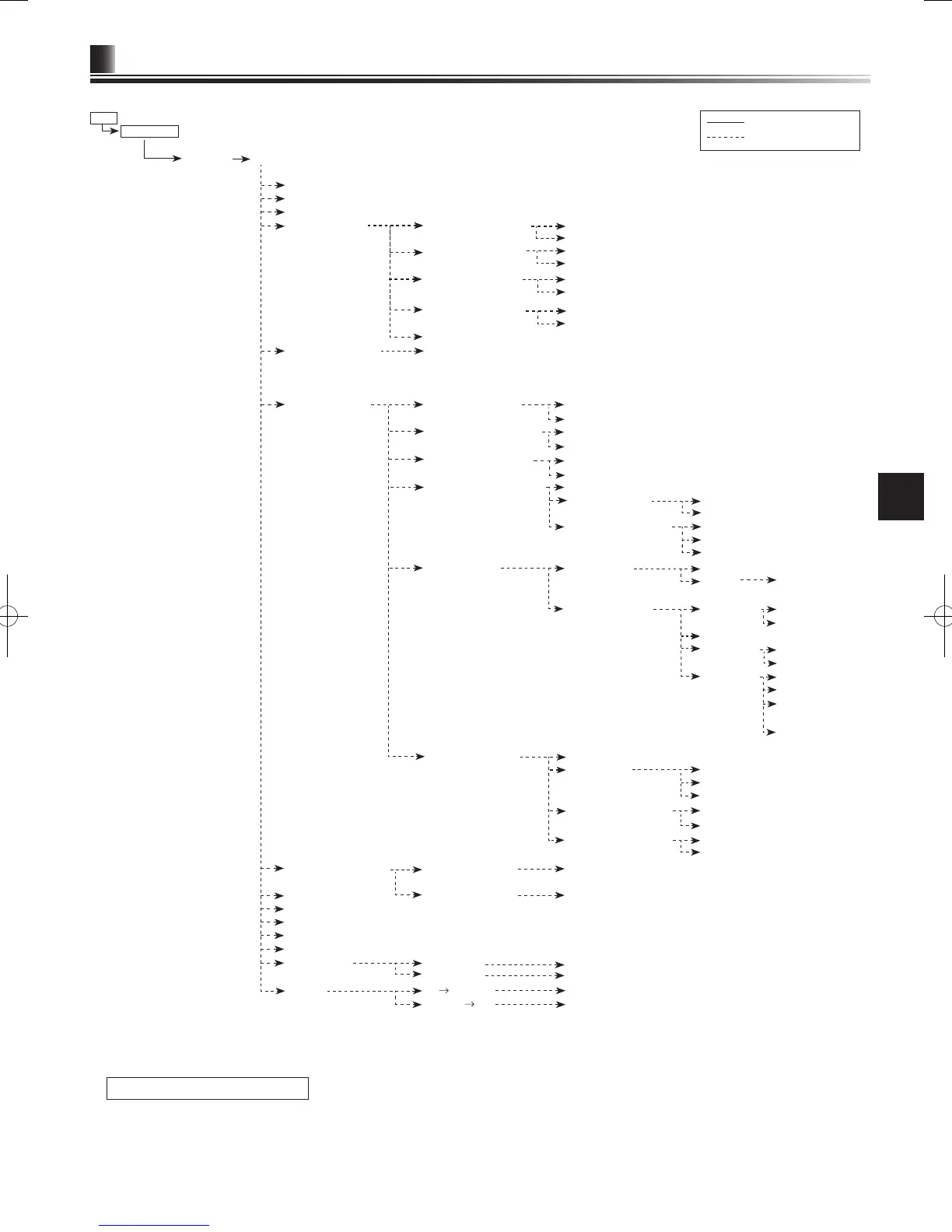

<Main Controller Menu Tree>
Initial
Main screen
Main menu Service
Manual operation
Function settings
Thermistor adjustment
Auxiliary settings
Economy settings for pump
ON/OFF
Delay
Electric heater (Heating)
ON/OFF
Delay
Electric heater (DHW)
ON/OFF
Delay
Mixing valve control Running
Interval
Pump speed
Heat source setting Standard (Heat pump & electric heater)/Heater (Electric heater only)/
Boiler/Hybrid (Heat pump & heater/Boiler)
Operation settings Freeze stat function Flow t.
Outdoor ambient temp.
Simultaneous operation ON/OFF
Outdoor ambient temp.
Cold weather function ON/OFF
Outdoor ambient temp.
Room temp. control (Heating)
Temp. control interval
Flow temp. range Min. temp.
Max. temp.
H/P thermo diff. adjust ON/OFF
Lower limit
Upper limit
Boiler settings Hybrid settings Outdoor ambient temp.
*2 Priority Ambient/Cost /CO2
Intelligent settings Energy price Electricity
Boiler
Schedule
CO
2
emission
Electricity
Boiler
Heat source
Heat pump capacity
Boiler efciency
Booster heater 1
capacity
Booster heater 2
capacity
Floor dry up function ON/OFF
(For more details,
refer to
Page 41.)
Target temp. Start & Finish
Max. temp.
Max. temp. period
Flow temp. (Increase) Temp. increase step
Increase interval
Flow temp. (Decrease) Temp. decrease step
Decrease interval
External input settings Demand control OFF (Heat source)/Boiler
Running information Outdoor thermostat Heater/Boiler
Thermistor reading
Summary of settings
Error history
Password protection
Manual reset
Main controller
Yes/No
FTC Yes/No
SD card SD
Main RC Select download data
Main RC
SD Select upload data
Continued from the previous page.
*2 For more details, refer to the installation manual of PAC-TH011HT-E.
(Password protected)
Unrestricted access
Installer only
30
System Set Up
5
GB
