3-88
Features and controls
3

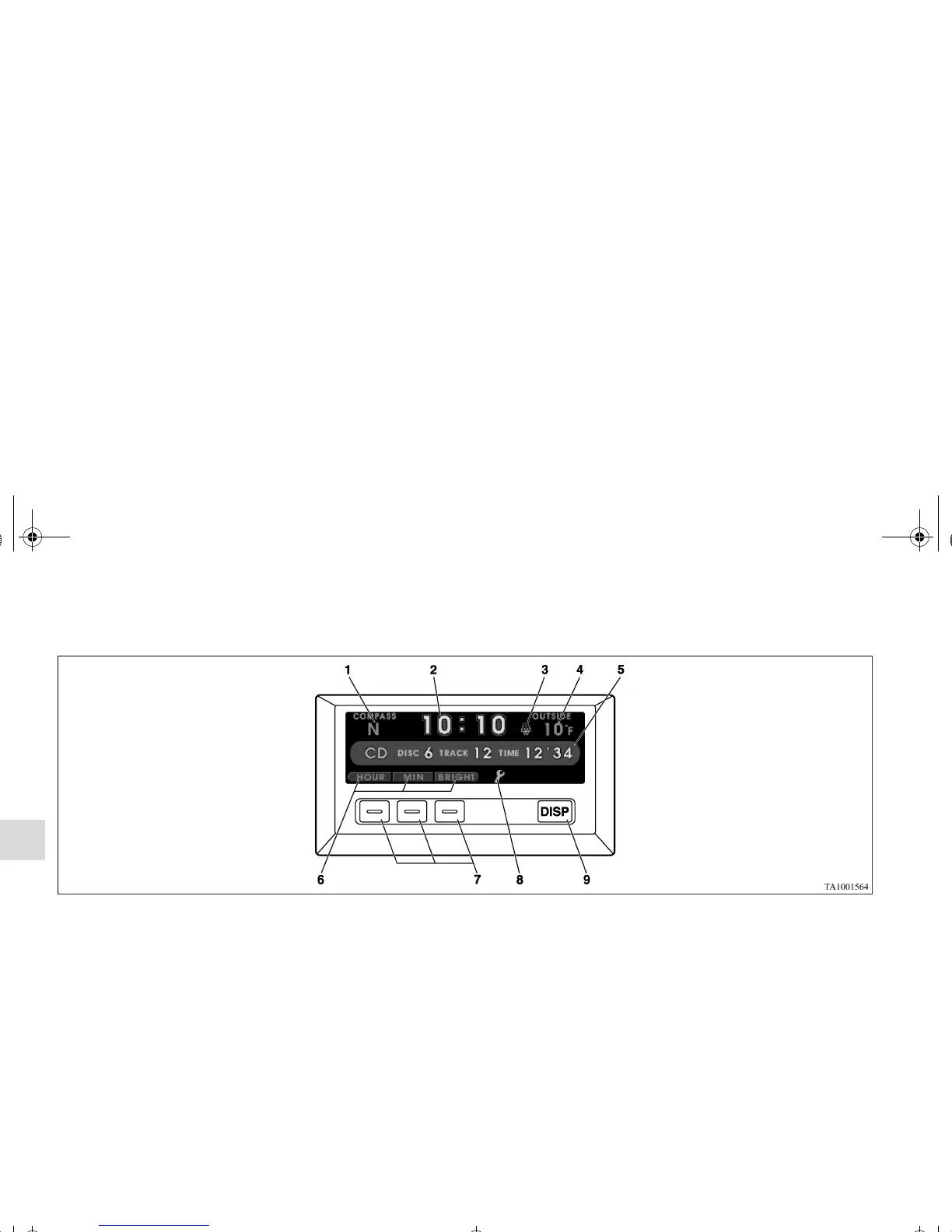

Controls and display
N00533100093
1- Electronic compass
This display shows the compass direction of the vehicle.
2- Digital clock → P.3-90
3- Road surface freeze warning → P.3-92
4- Outside temperature → P.3-92
5- Audio
This display shows the audio condition.
Refer to “Audio” on page 3-96.
6- Display for function buttons
This display shows the options available for each function
button.
7- Function buttons
These buttons can select the options shown in the display.
8- Maintenance reminder → P.3-115
It is possible to set the dates when maintenance tasks (engine
oil replacement, oil filter replacement, etc.) were last per-
formed and the driving distances before the maintenance
tasks have to be performed again.
“Record maintenance” → P.3-115
9- DISP button
This button can change the display.
“Change of display” → P.3-89
“Setting and customization” → P.3-108
