7-42
Vehicle care and maintenance
7
Fuse replacement
1. Before replacing a fuse, always turn off the electrical item
connected to the fuse and turn the ignition key to the
“LOCK” position.

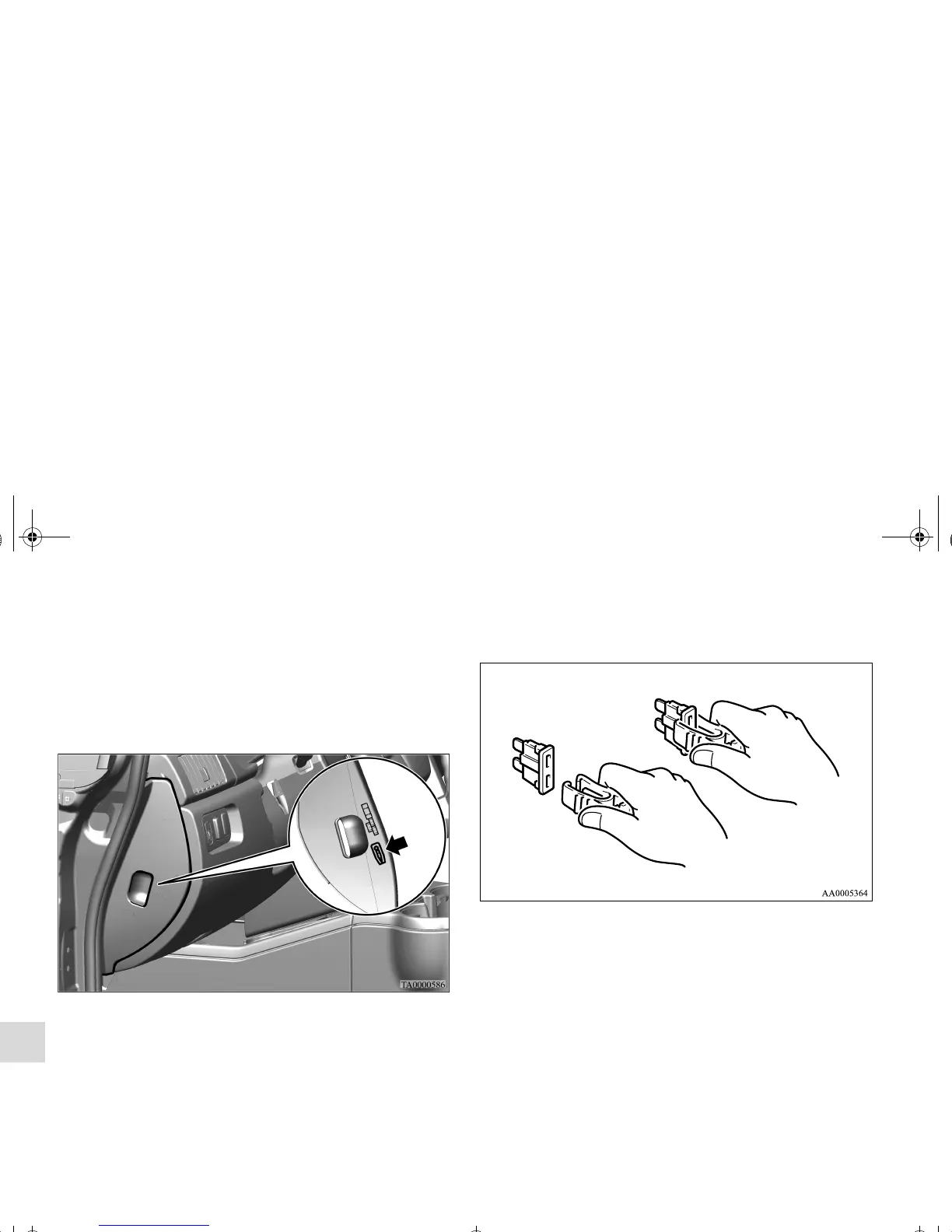

2. There is a fuse puller in the cover of the instrument panel
(driver’s side).
3. Remove the fuse puller from the cover.
4. Clamp it on the fuse you wish to remove, and pull the fuse
straight out from the fuse block.
