Mitsubishi Endeavor

3-208
Features and controls
3
Tonneau cover
(if so equipped)
N00528300114
To u s e

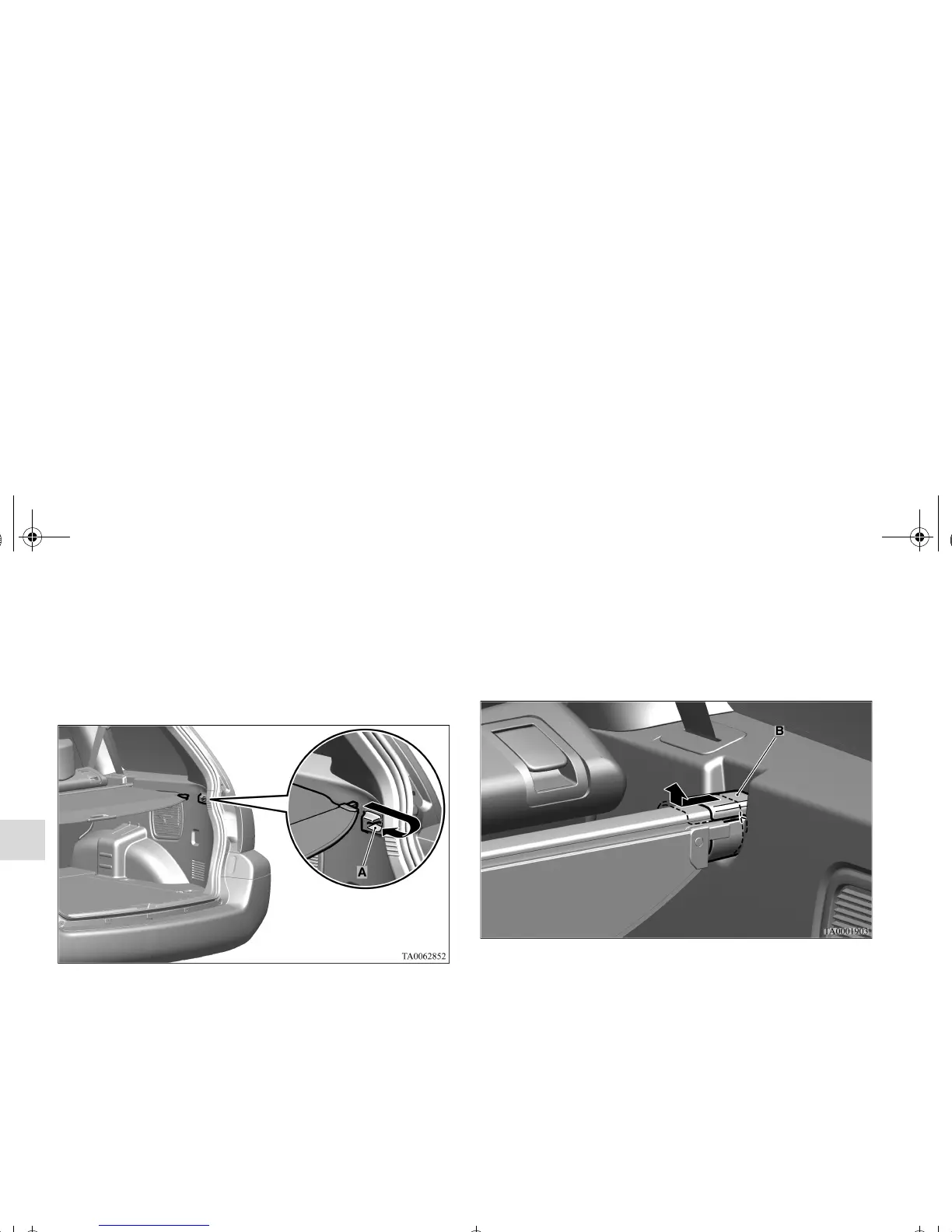

1. Draw out the spring-loaded cover and insert it in the
mounting grooves (A).
2. Remove the cover from the mounting grooves, and the
cover will be rolled back into the retracted position.
N
OTE
● Do not place anything on the tonneau cover.
To remove
1. Roll back the tonneau cover.
2. Move one of the sliders (B) toward the inside of the vehi-
cle and lift it to remove the tonneau cover.
