Comfort controls
5-3
5

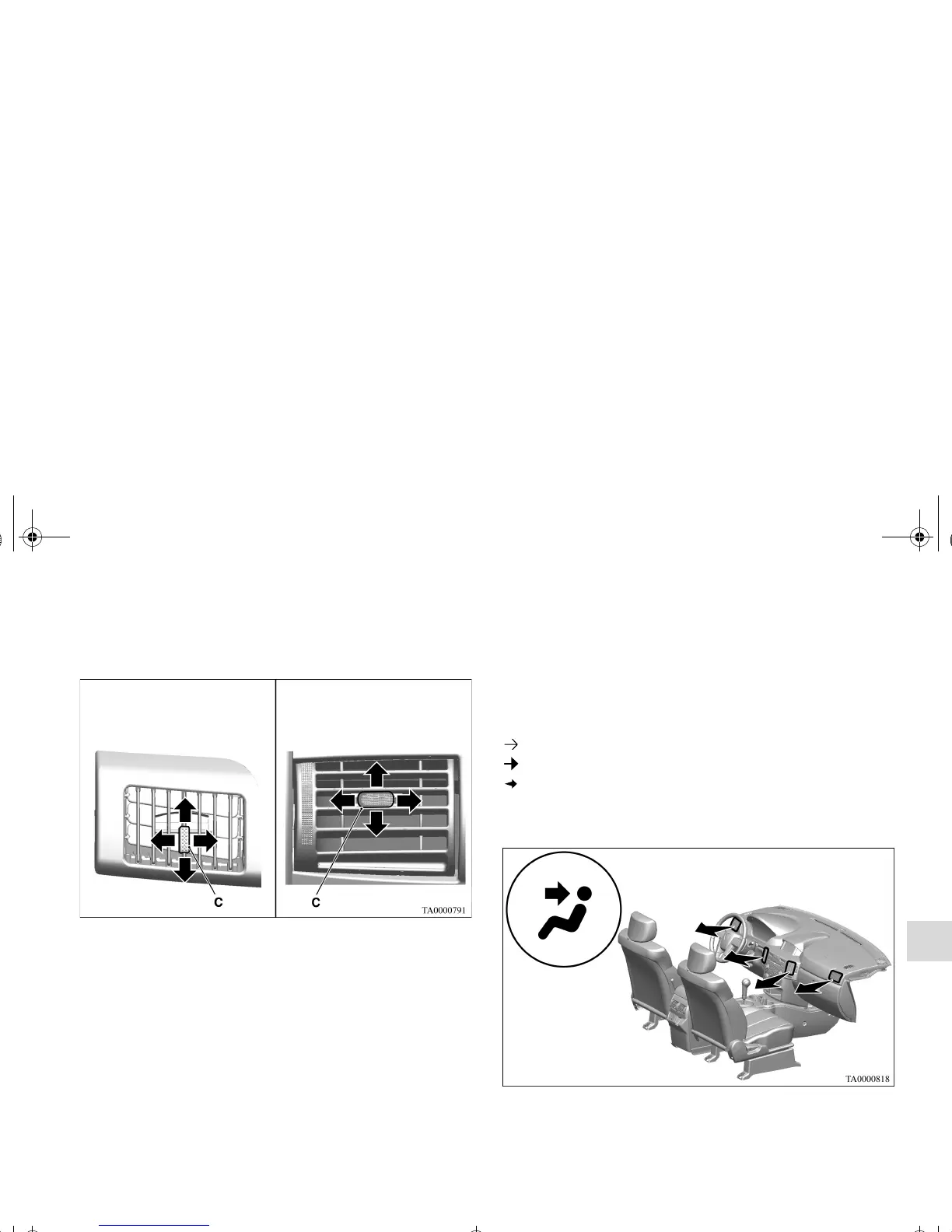

Side/Rear (for vehicles with automatic air conditioning)
vents
Adjust the direction of the air flow by moving the knob (C).
OTE
● On rare occasions, air from the vents of an air-conditioned
vehicle may be foggy. This is only moist air cooling sud-
denly and does not indicate a problem.
Changing the mode selection
N00736400435
To change the position and amount of air flowing from the
vents, turn the mode selection dial. (Refer to “Mode selection
dial” on page 5-7, 5-18.)
These symbols are used in the next several illustrations to dem-
onstrate the quantity of air coming from the vents.
: Small amount of air from the vents
: Medium amount of air from the vents
: Large amount of air from the vents
Face position
Air flows only to the upper part of the passenger compartment.
Side vents Rear vents
