Mitsubishi Endeavor

For emergencies
6-9
6

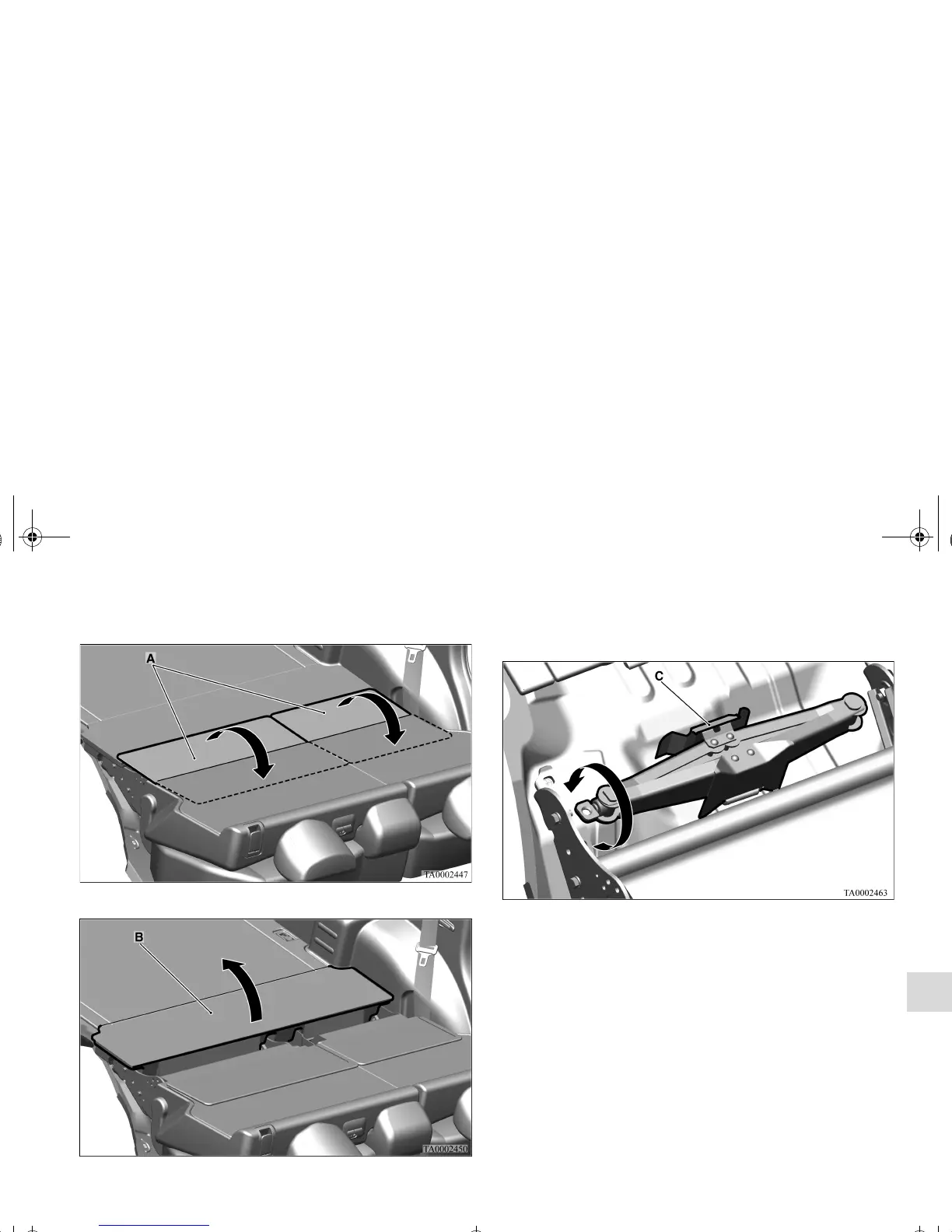

2. Lift the carpet (A) toward the front of the vehicle.
3. Lift the cover (B).
4. To remove the jack, turn the shaft end so that the jack
retracts and detach it from fixing bracket (C).
