Vehicle care and maintenance
7-49
7
Front fog lights (if so equipped)
N00943600398
To remove

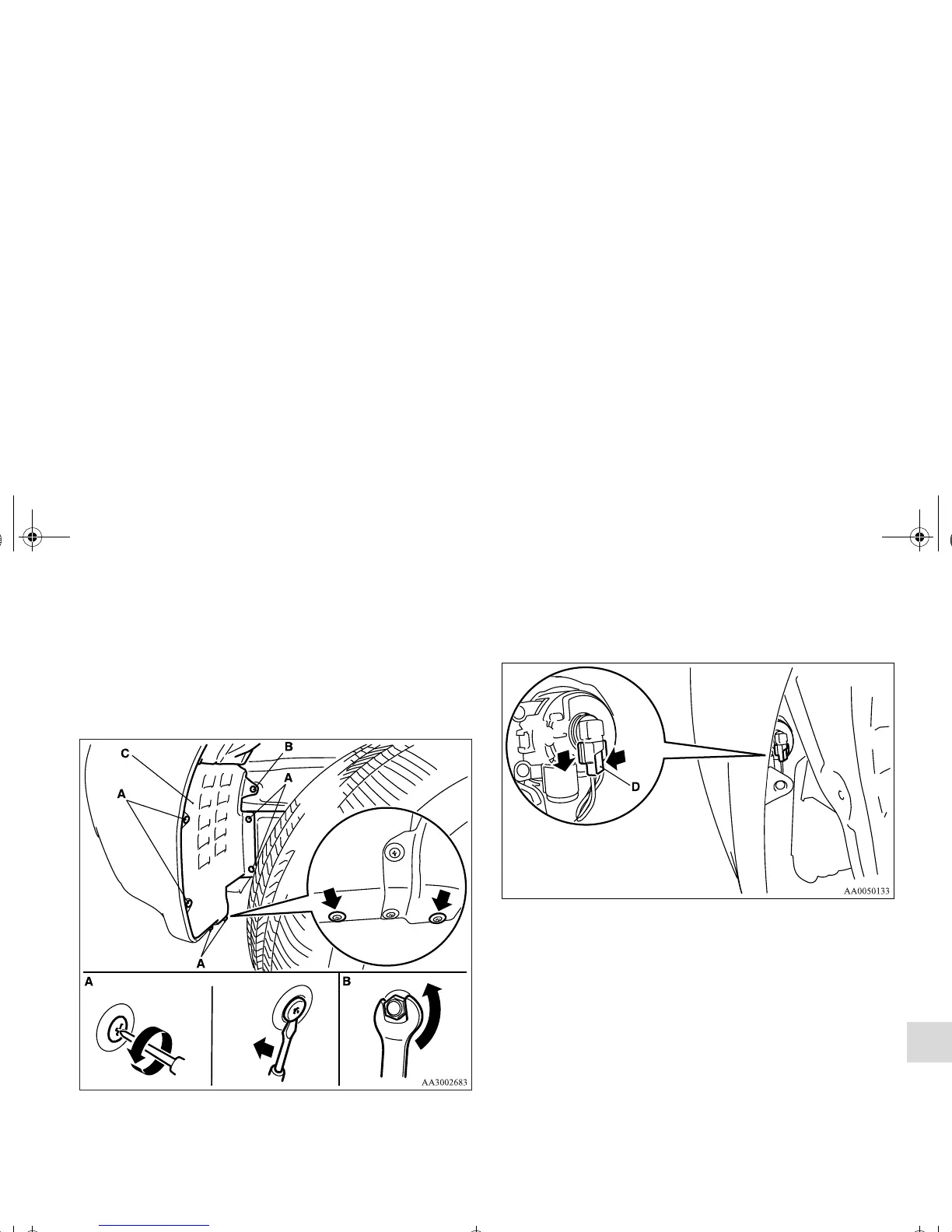

1. Remove the six clips (A) by turning them counterclock-
wise or prying them, and remove the screw (B) by turning
it counterclockwise, then remove the cover (C).
2. Depress the tab (D) on the harness connector and pull the
harness connector to downward to remove it.
