7-56
Vehicle care and maintenance
7

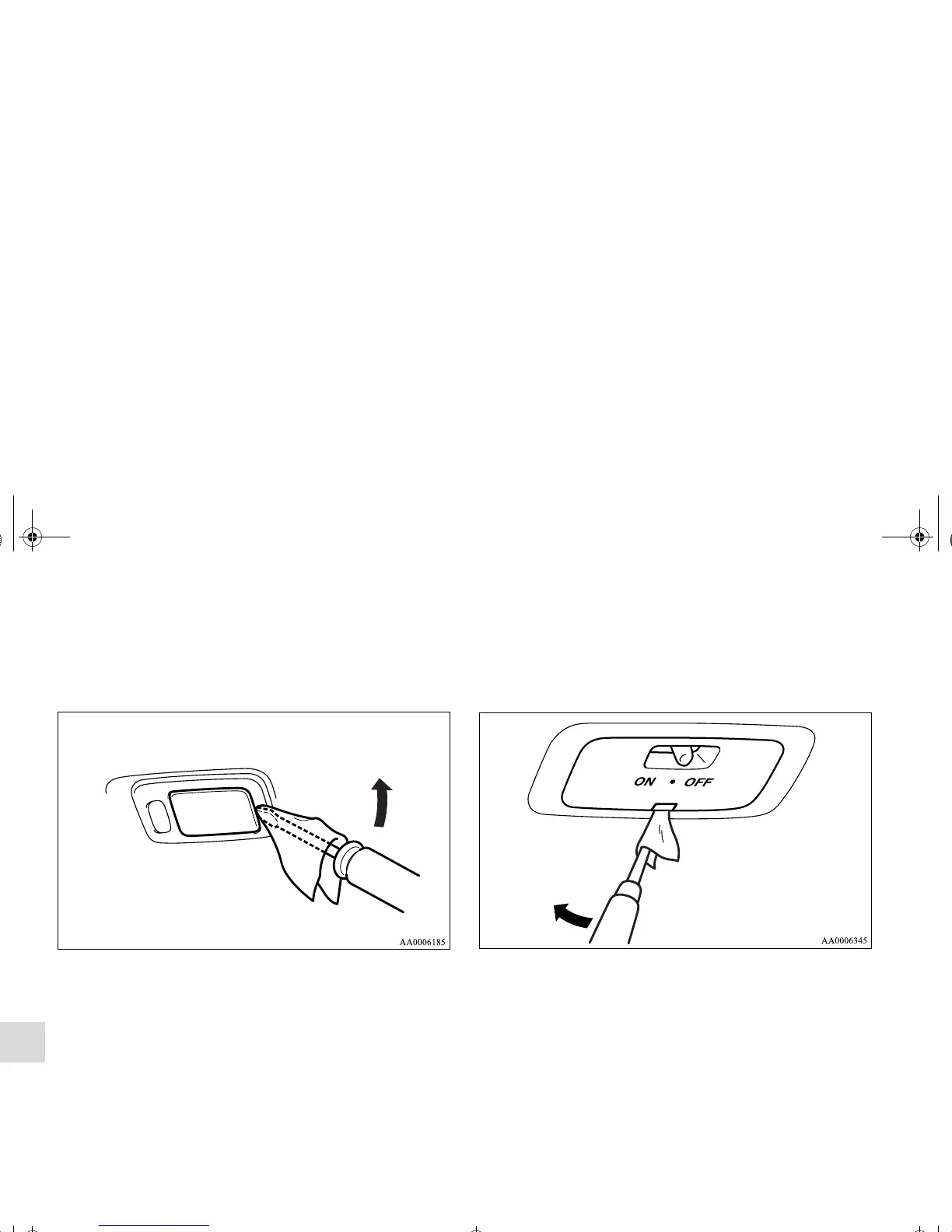

Rear personal lights
N00944700080
1. Insert the tip of a screwdriver at the edge of the lens, pry
gently to remove the lens, and then remove the bulb from
the light holder.
OTE
● Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
2. To install the bulb, perform the removal steps in reverse.
Luggage room light
N00944900079
1. Insert a screwdriver into the notch of the light assembly
and pry gently to remove the lens. Pull the light bulb out
from the light holder.
OTE
● Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
2. To install the bulb, perform the removal steps in reverse.
