How the Supplement Restraint System works
N00407800346
The SRS includes the following components:
The air bag control unit monitors the readiness of the electronic
parts of the system whenever the ignition switch is in the “ON”
or “START” position. These include all of the items listed
above and all related wiring.
The air bags will operate only when the ignition switch is in the
“ON” or “START” position.

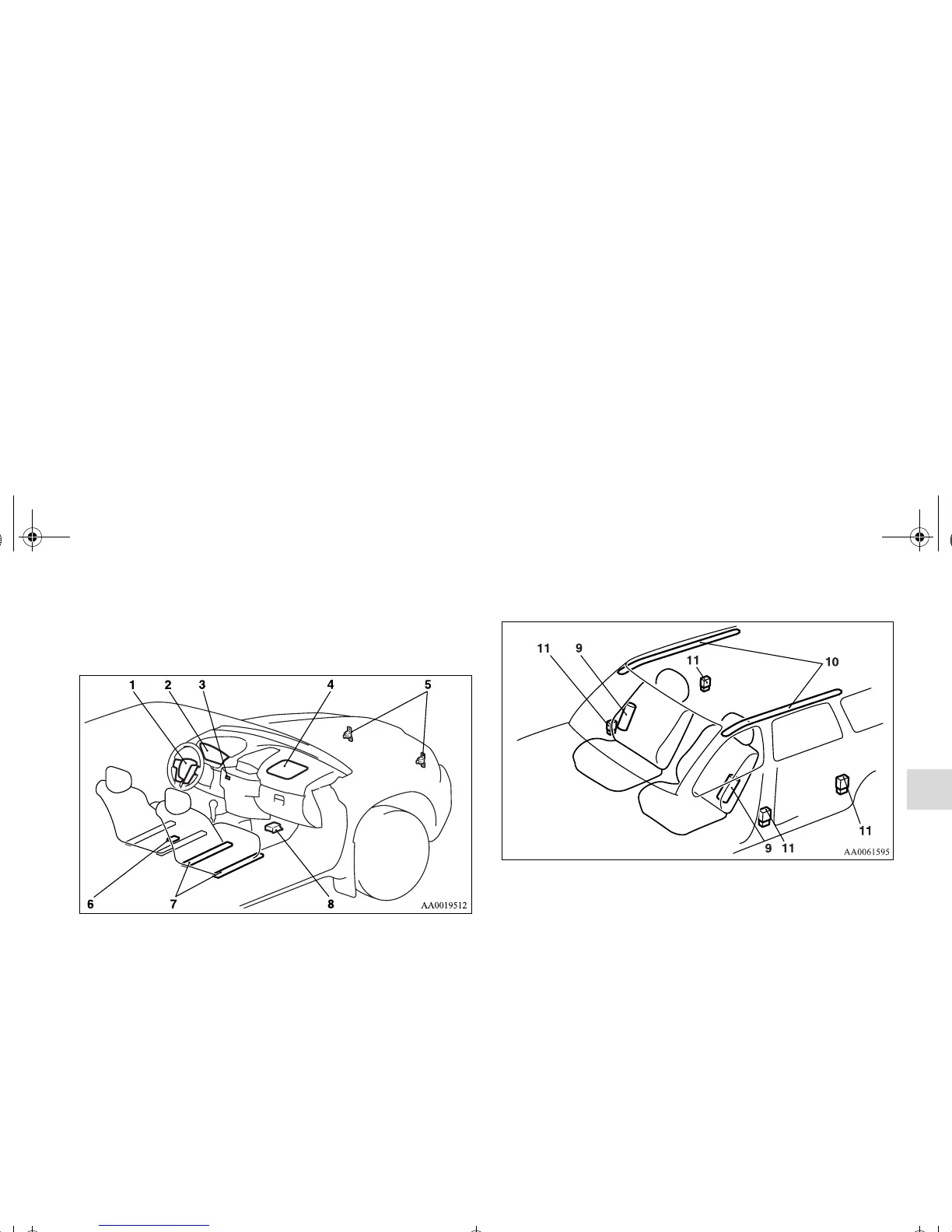

1- Driver’s air bag
2- SRS warning light
3- Passenger’s air bag off indicator
4- Passenger’s front air bag
5- Front impact sensors
6- Driver’s seat position sensor
7- Passenger’s seat weight sensors
8- Air bag control unit
9- Side air bag modules
10- Curtain air bag modules
11- Side impact sensors
