Seat and restraint systems
2-45
2
Driver’s and passenger’s front air bag system
N00407900217

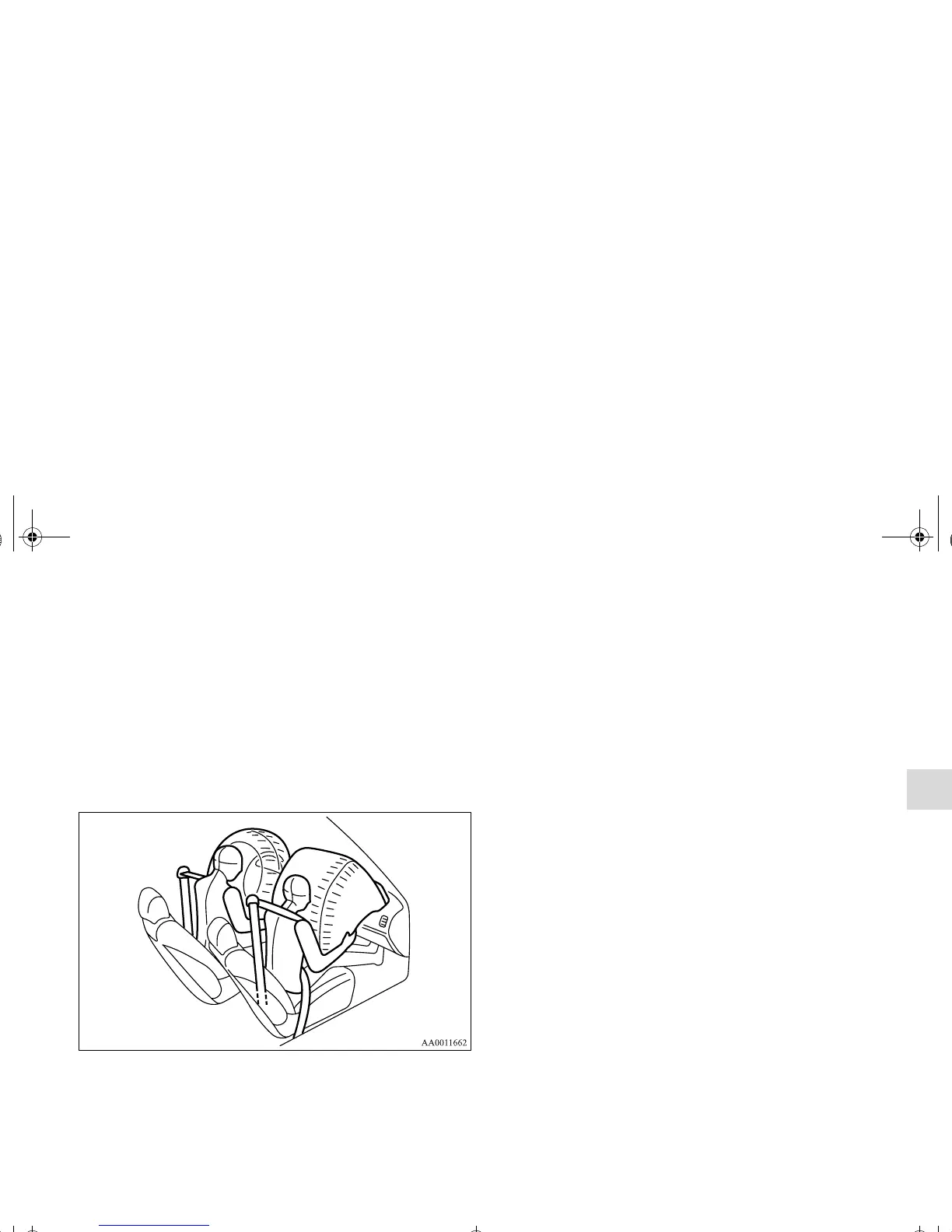

The driver’s air bag is located under the padded cover in the
middle of the steering wheel. The front passenger’s air bag is
contained in the instrument panel above the glove compart-
ment. The driver’s air bag and the front passenger’s air bag are
designed to deploy at the same time. However, the front pas-
senger’s air bag does not deploy when the front passenger seat
is not occupied or when the weight sensor in the front passen-
ger seat senses a weight on the seat of less than approximately
66 pounds (30 kg).
Driver
Front passenger
