F9Q ENGINE -
Cylinder Head
F9Q ENGINE -
Cylinder Head
11A-11-3

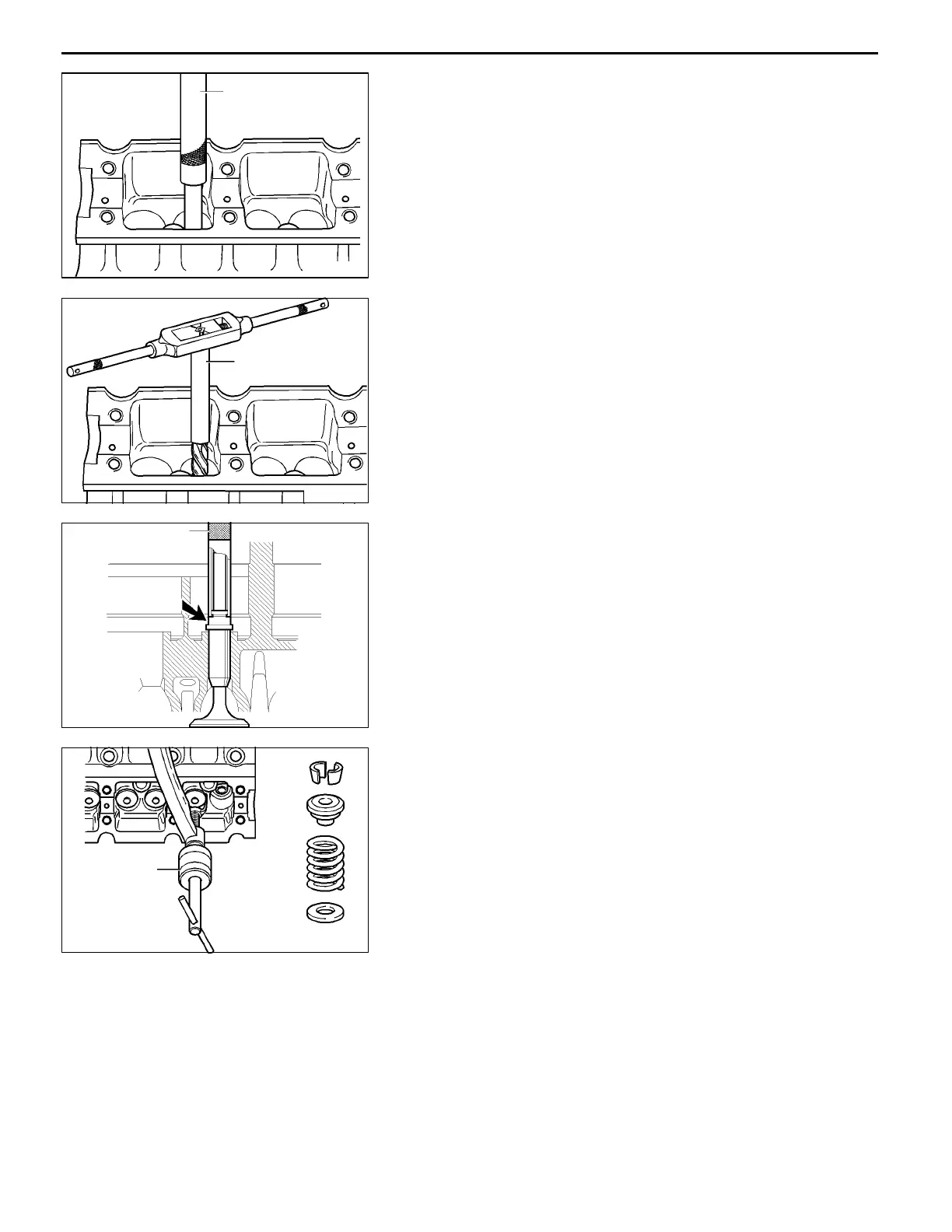

(4) Locate the valve guides with the taper pointing down,
on valve guide installer MB996029.
(5) Press in the valve guides until the installer abuts the
cylinder head.
Caution
D
The pressure exerted on the valve guide must
be at least 9,000 N. If the pressure is lower, the
valve guide must be removed. Ream the valve
guide bore in the cylinder head to the next oversize
and press in the corresponding valve guide.
(6) Clean the valve guide inner bores with reamer MB996024.
"
B
A
VALVE STEM SEAL INSTALLATION
(1) Lubricate the valve guides with engine oil.
Introduce the valves through the valve guides.
Locate the protective plastic cap over the valve stem.
(2) Locate the valve stem oil seal. Press in the valve stem
oil seal vertically until it abuts the cylinder head with valve
stem seal installer MB996031. Remove the protective
cap.
Caution
D
To avoid damaging the valve stem oil seal, the
valves must not be removed again.
"
C
A
RETAINER LOCKS INSTALLATION
(1) Fit valve spring compressor MB996014 on the cylinder
head as shown in the illustration.
(2) Press down the valve spring retainer and fit the retainer
locks.
PWEE0001
E
Jun. 2000Mitsubishi Motors Corporation
REN0071
MB996029
9,000 N
REN0072
MB996024
REN0073
MB996031
REN0074
MB996014
