F9Q ENGINE – Camshaft and Vacuum Pump
11A-10-1
10. CAMSHAFT AND VACUUM PUMP
REMOVAL AND INSTALLATION
2
3
4
1
8
5
6
7
10
9
13 ± 1 Nm
15 ± 1 Nm
8.8 ± 1.5 Nm
12 ± 1 Nm
20 ± 2 Nm

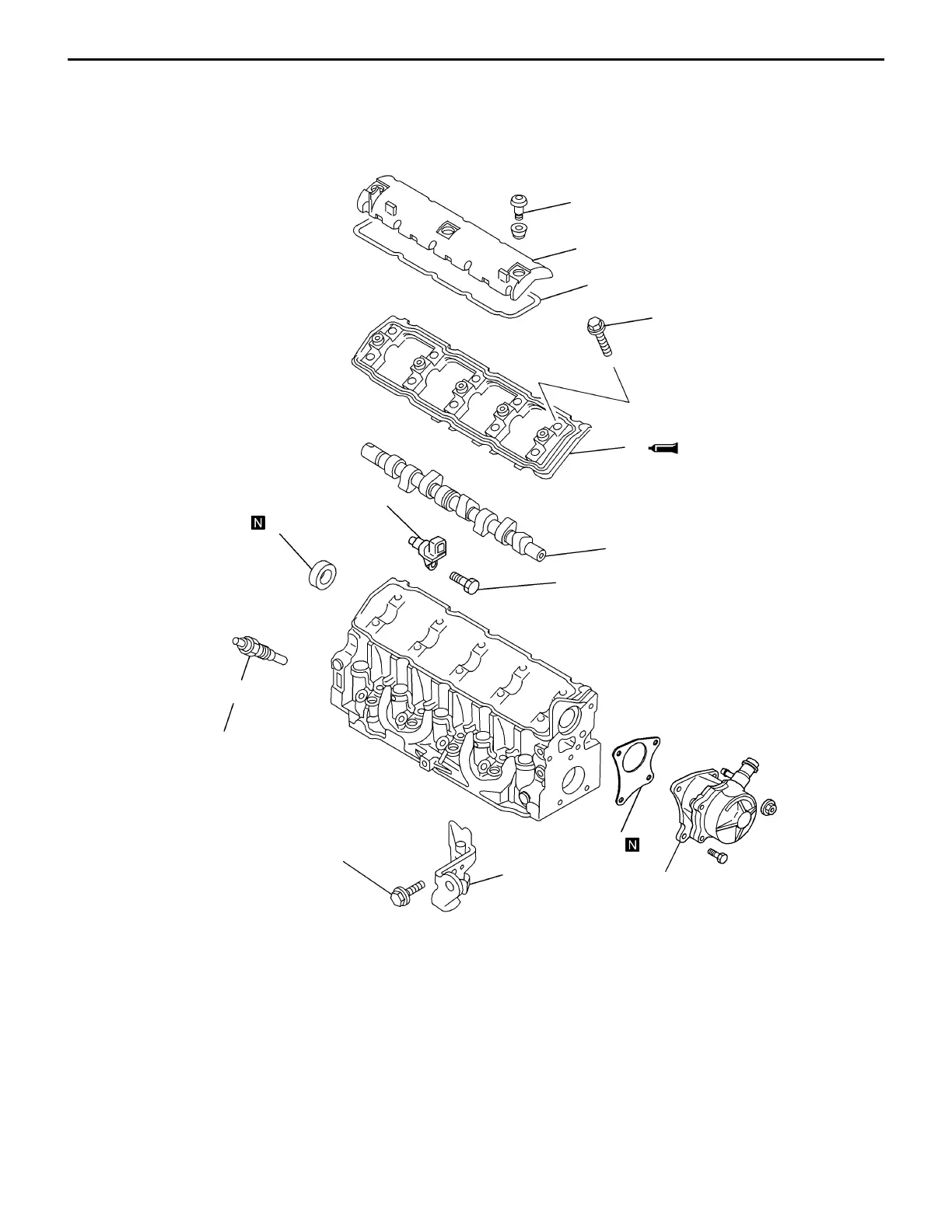

REN0182
Removal steps
1. Engine hanger
2. Glow plug
3. Camshaft position sensor
"CA 4. Vacuum pump
5. Vacuum pump gasket
6. Cylinder head cover
7. Cylinder head cover gasket
"BA 8. Oil seal
AA""AA 9. Bearing cap
10. Camshaft
PWEE0001
E
Jun. 2000Mitsubishi Motors Corporation
PWEE0001-A
E
Mar. 2001Mitsubishi Motors Corporation Revised
