F9Q ENGINE – Oil Pan and Oil Pump
11A-12-1

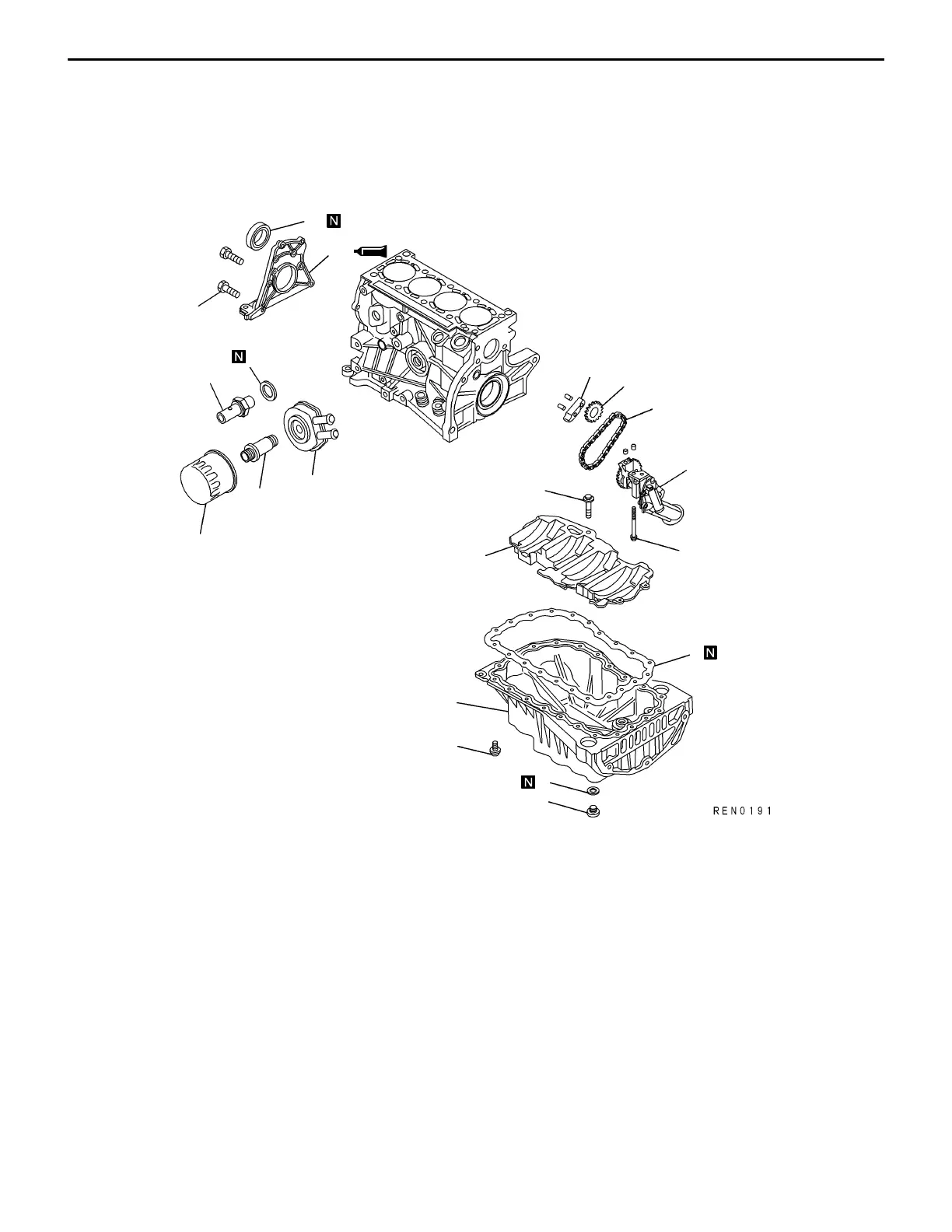

12. OIL PAN AND OIL PUMP
REMOVAL AND INSTALLATION
2
3
4
1
7
5
6
9
8
15 ± 1.5 Nm
25 ± 2 Nm
11
10
12
13
14
16
15
15 ± 1 Nm
14 ± 1 Nm
Removal steps
1. Oil pressure switch
2. Gasket
3. Oil filter
4. Oil cooler adaptor
5. Oil cooler
6. Drain plug
7. Drain plug gasket
"CA 8. Oil pan
9. Oil pan gasket
AA" 10. Oil plate
11. Oil pump
AB""AA 12. Cylinder block plate, front
"BA 13. Oil seal
"AA 14. Chain pad
15. Gear
16. Chain
PWEE0001
E
Jun. 2000Mitsubishi Motors Corporation
PWEE0001-A
E
Mar. 2001Mitsubishi Motors Corporation Revised
