F9Q ENGINE – Oil Pan and Oil Pump
11A-12-3

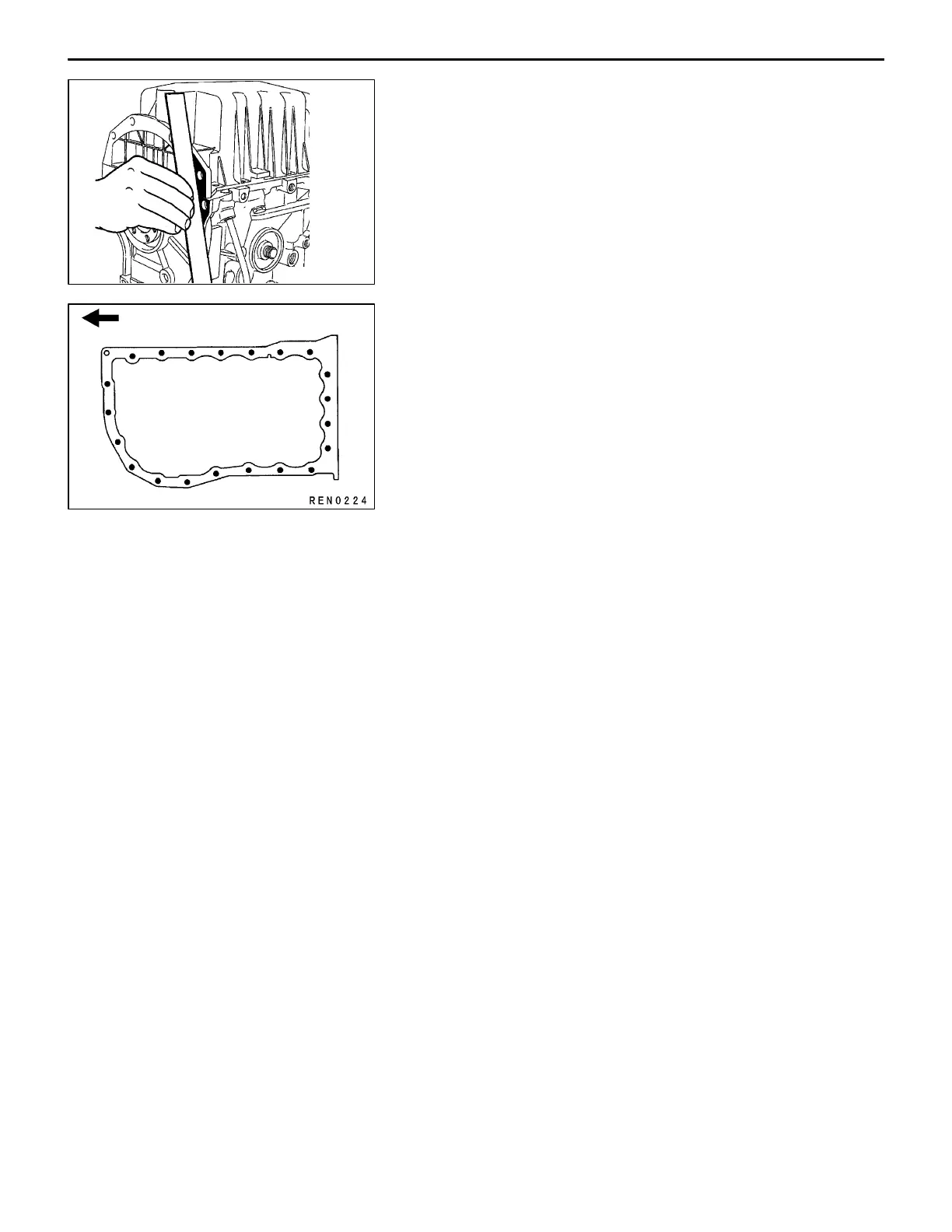

"CA OIL PAN INSTALLATION
(1) Fit the oil pan on the cylinder block with a new gasket
while aligning their flywheel side edges with each other.
Caution
D Be sure to perform the alignment at the flywheel
side. Otherwise, the clutch housing could be
damaged when the engine is combined with the
transmission.
(2) Tighten the oil pan bolts to 8 ± 0.8 Nm in the order shown
in the illustration.
(3) Then tighten them to 14 ± 1 Nm in the same order.
PWEE0001
E
Jun. 2000Mitsubishi Motors Corporation
REN0194
PWEE0001-A
E
Mar. 2001Mitsubishi Motors Corporation Added
Timing belt side
7
6
3
2
9
8
5
4
1
10
11
14
18
21
17
16
20
19
15
12
13
To Next Page
