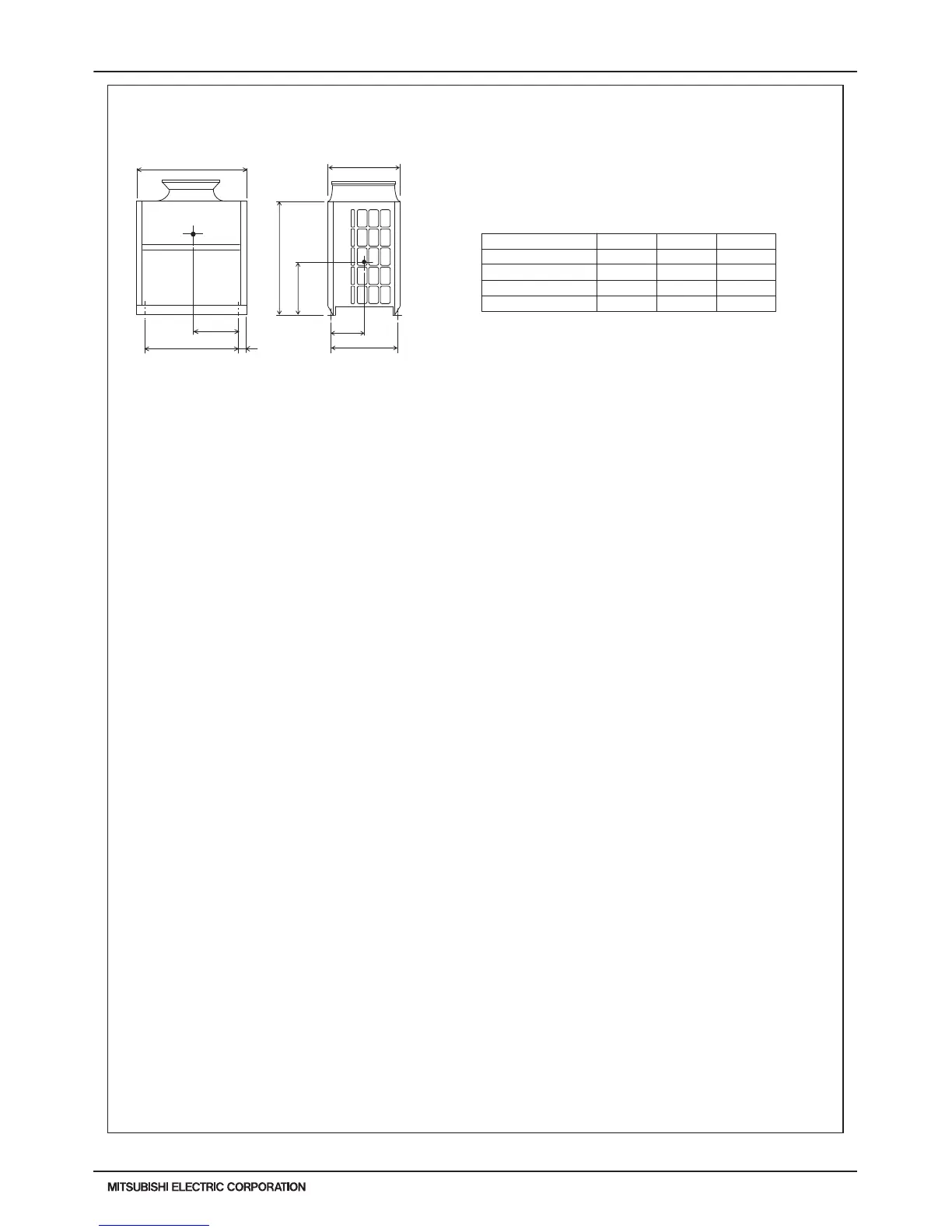

3. CENTER OF GRAVITY
3. CENTER OF GRAVITY
DATA U10
OUTDOOR UNITS 2 - 258
H2i R2
3. CENTER OF GRAVITY
1060
80
1220
X
Y
681
740
1347
Z
PURY-HP72, 96TKMU-A-H (-BS)
PURY-HP72, 96YKMU-A (-BS)
Model X Y Z
Unit : mm[in.]
PURY-HP72YKMU-A
PURY-HP96YKMU-A
460[18-1/8]
447[17-5/8]
447[17-5/8]
435[17-5/32]
320[12-5/8]
311[12-1/4]
310[12-7/32]
302[11-29/32]
609[23]
595[23-7/16]
623[24-17/32]
610[24-1/32]
PURY-HP72TKMU-A-H
PURY-HP96TKMU-A-H
