Engine Part Tightening Torque (Cont’d)

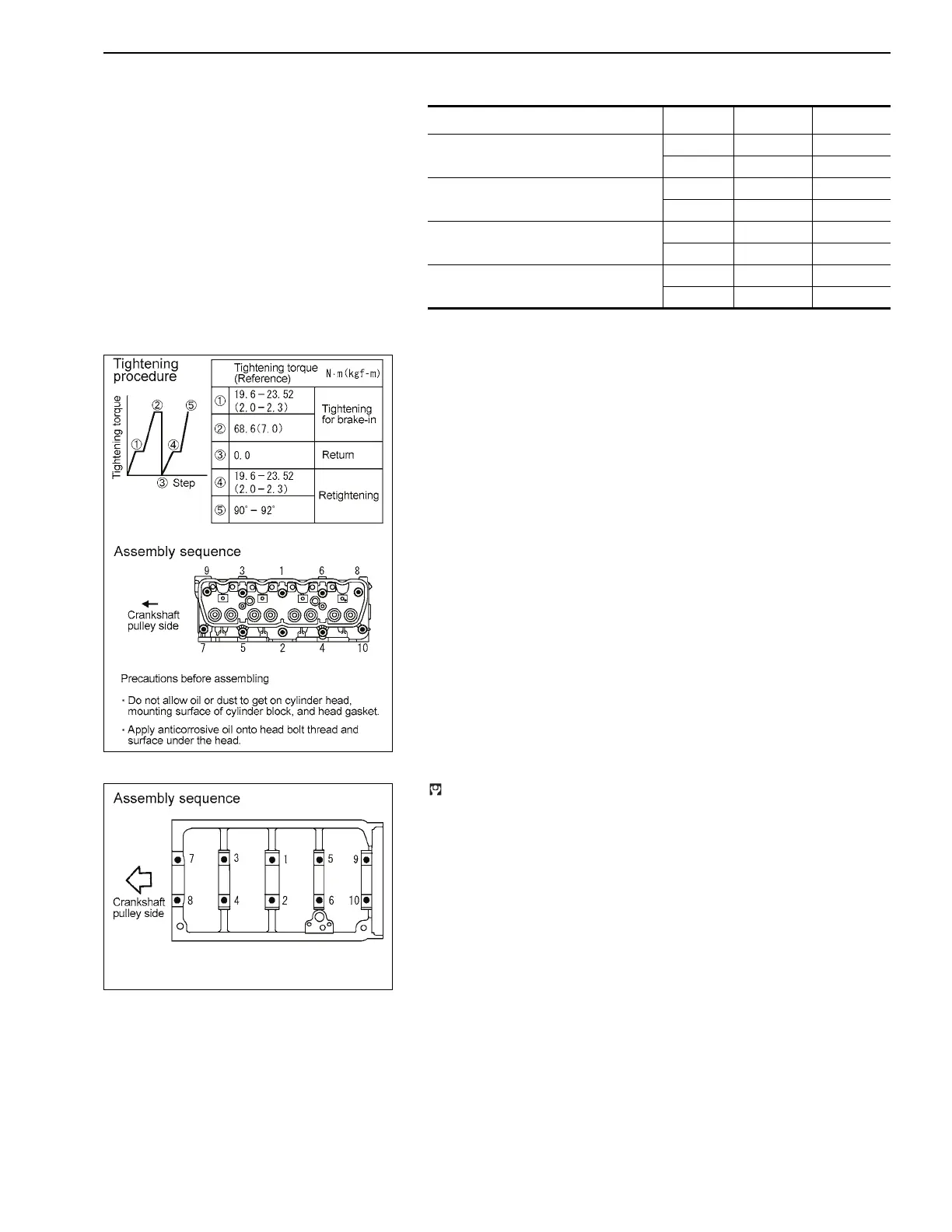

CYLINDER HEAD
Tightening torque for general service is 68.6 N·m (7.0 kgf-m) in the
place of the tightening torque (5) as shown in the figure.
MAIN BEARING CAP
: 83.4 - 93.2 N•m (8.51 - 9.51 kgf-m)
• Apply antirust oil or engine oil to the bolt threads and head
bottom.
• Do not use any power tools such as a pneumatic air tool for
assembly.
Tightening point Unit Standard Max. value
Mass air flow sensor mounting screw
N·m 1.27 1.67
(kgf-m) 0.13 0.17
Fuel tube flare nut
N·m 16.0 23.0
(kgf-m) 1.63 2.35
Crankshaft position sensor plug bolt
N·m 6.37 7.45
(kgf-m) 0.65 0.76
Thermo-housing relief plug
N·m 6.37 7.45
(kgf-m) 0.65 0.76
GI-9
TIGHTENING TORQUE
