ELECTRICAL SYSTEM
12-13

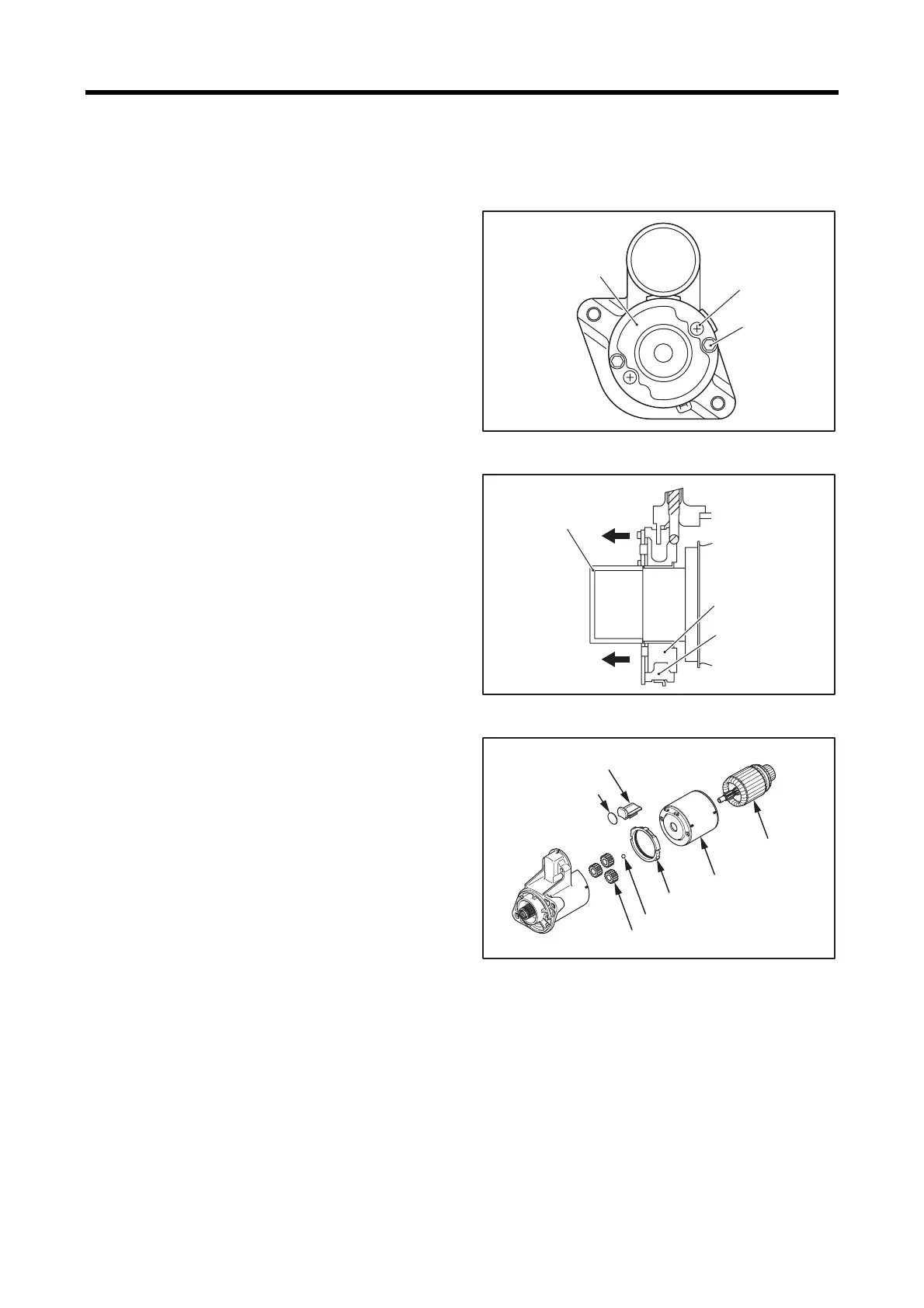

2.3.3 Removing rear bracket
Remove the through bolts and screws of the brush holder,
and then remove the rear bracket.
Removing rear bracket
2.3.4 Removing brush holder and brush assem-
bly
Apply a socket (of the same diameter as the commutator) to
the commutator of the armature. Remove the brush holder
and brush assembly by sliding on the socket.
Removing brush holder and brush assembly
2.3.5 Removing armature and yoke
(1) Remove the armature and the yoke.
(2) Remove the packing from the internal gear.
(3) Remove the packing and plate on the lever support.
(4) Remove the ball from the internal gear.
(5) Remove the planetary gears.
Removing armature and yoke
Screw
Through bolt
Rear bracket
Socket
Brush holder
Brush assembly
Plate
Packing
Planetary gear
Ball
Packing
Yoke
Armature
