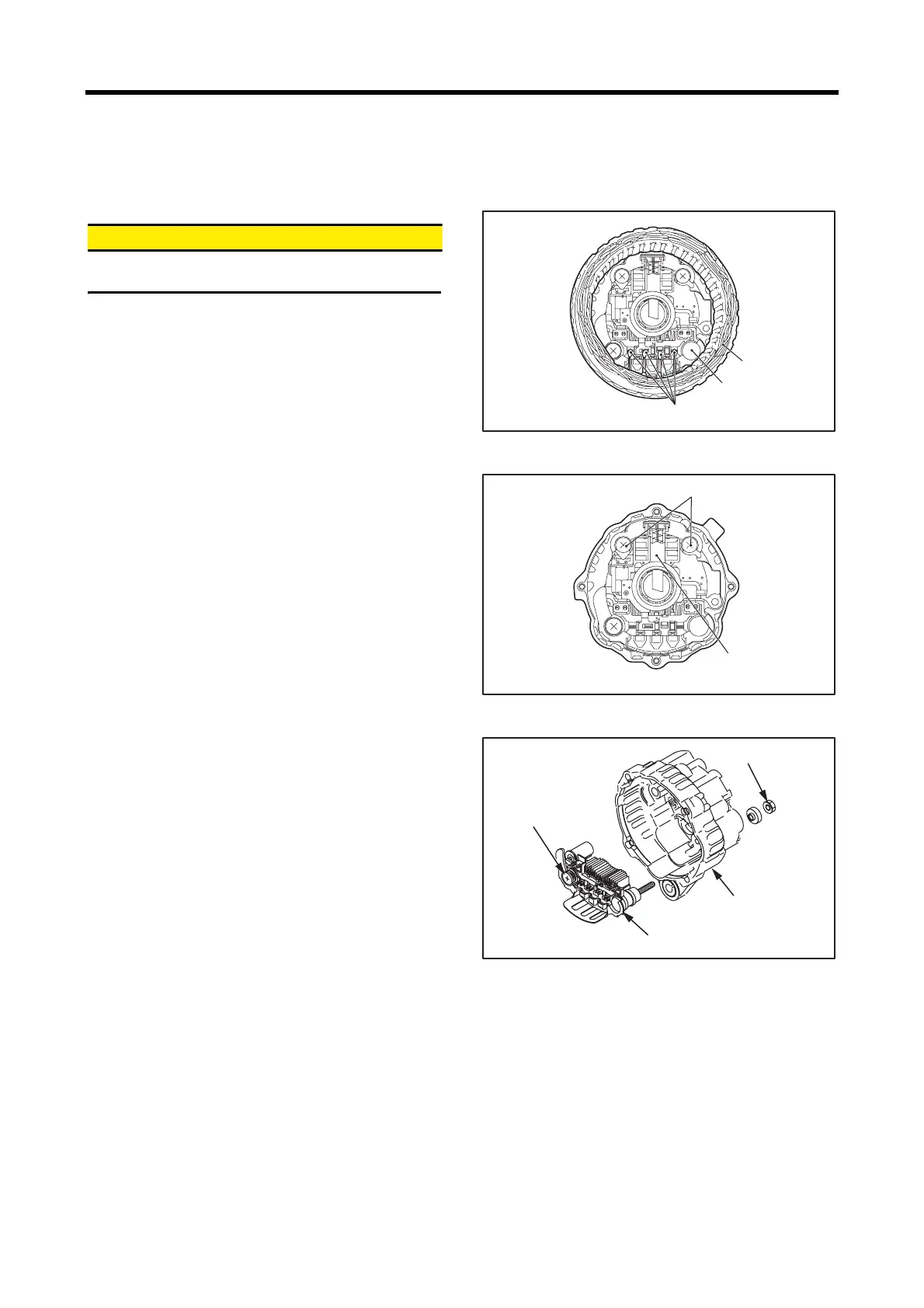

ELECTRICAL SYSTEM
12-41
2.10.5 Removing stator
&$87,21
Unsoldering must be finished as quickly as possible.
Extended heating will damage the diodes.
Cut off the joint of the stator and remove the stator from the
rectifier.
Removing stator
2.10.6 Removing regulator assembly
Remove the screws of the regulator assembly and then
remove the regulator assembly.
Removing regulator assembly
2.10.7 Removing rectifier assembly
(1) Remove the screw and nut from the rectifier.
(2) Remove the rectifier assembly.
Removing rectifier assembly
Soldering
Rectifier
Stator core
Screws
Regulator
assembly
Screw
Rectifier assembly
Rear bracket
Nut
