DISASSEMBLY OF BASIC ENGINE
5-13
3.12 Removing fuel injection pump camshaft
&$87,21
When pulling out the fuel injection pump camshaft, be
careful not to cause damage to the cam portion of the
fuel injection pump camshaft and the cam hole of the
cylinder block.
(1) Remove the sliding shaft and the governor weight.
(2) Remove the camshaft stopper washer.
(3) Remove the fuel injection pump camshaft together with
the fuel injection pump camshaft gear and ball
bearings.

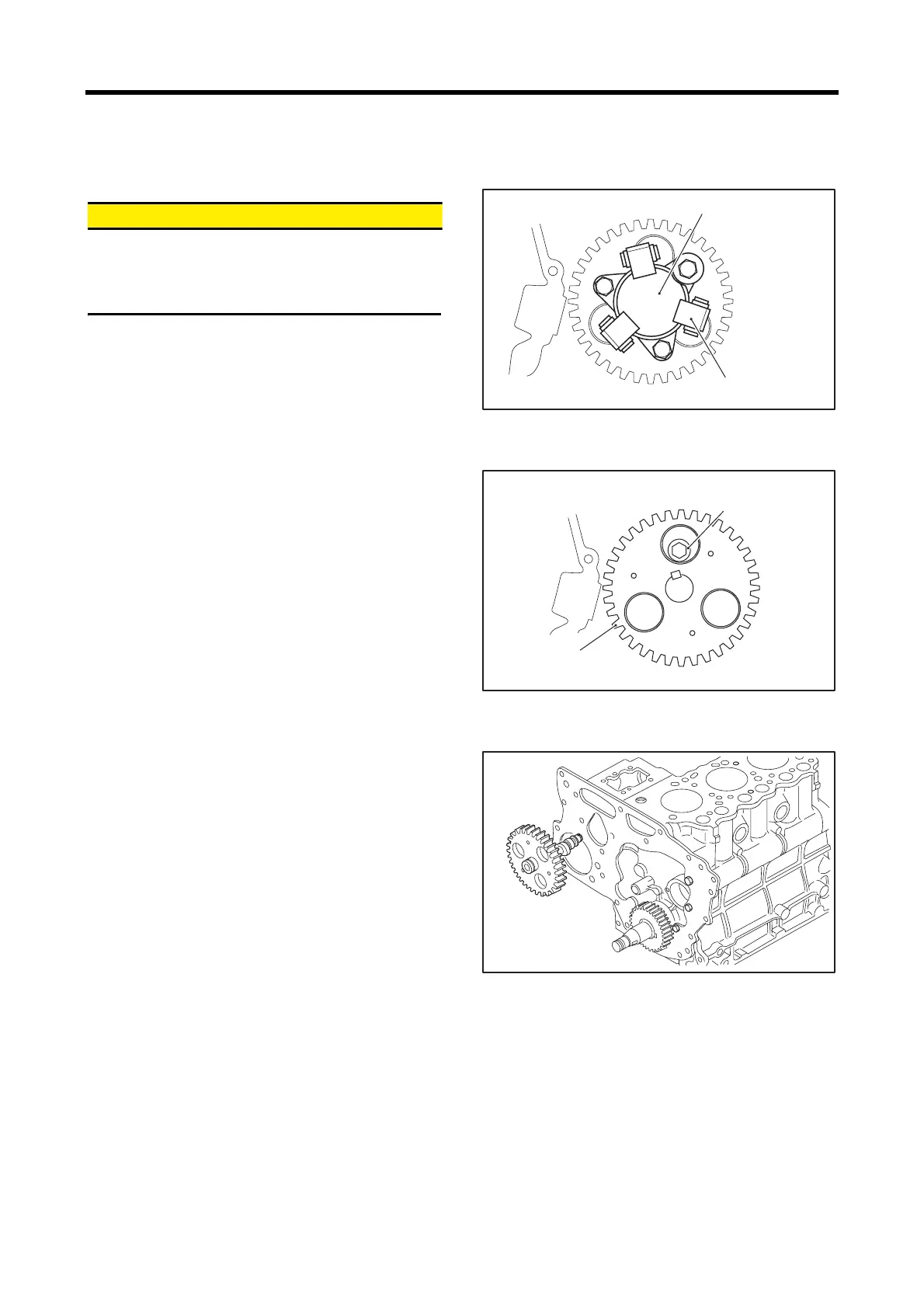

Removing sliding shaft and
governor weight
Removing fuel injection pump
camshaft (1)
Removing fuel injection pump
camshaft (2)
Sliding shaft
Governor weight
Camshaft
stopper washer
Fuel injection pump
camshaft gear
