ELECTRICAL SYSTEM

12-35

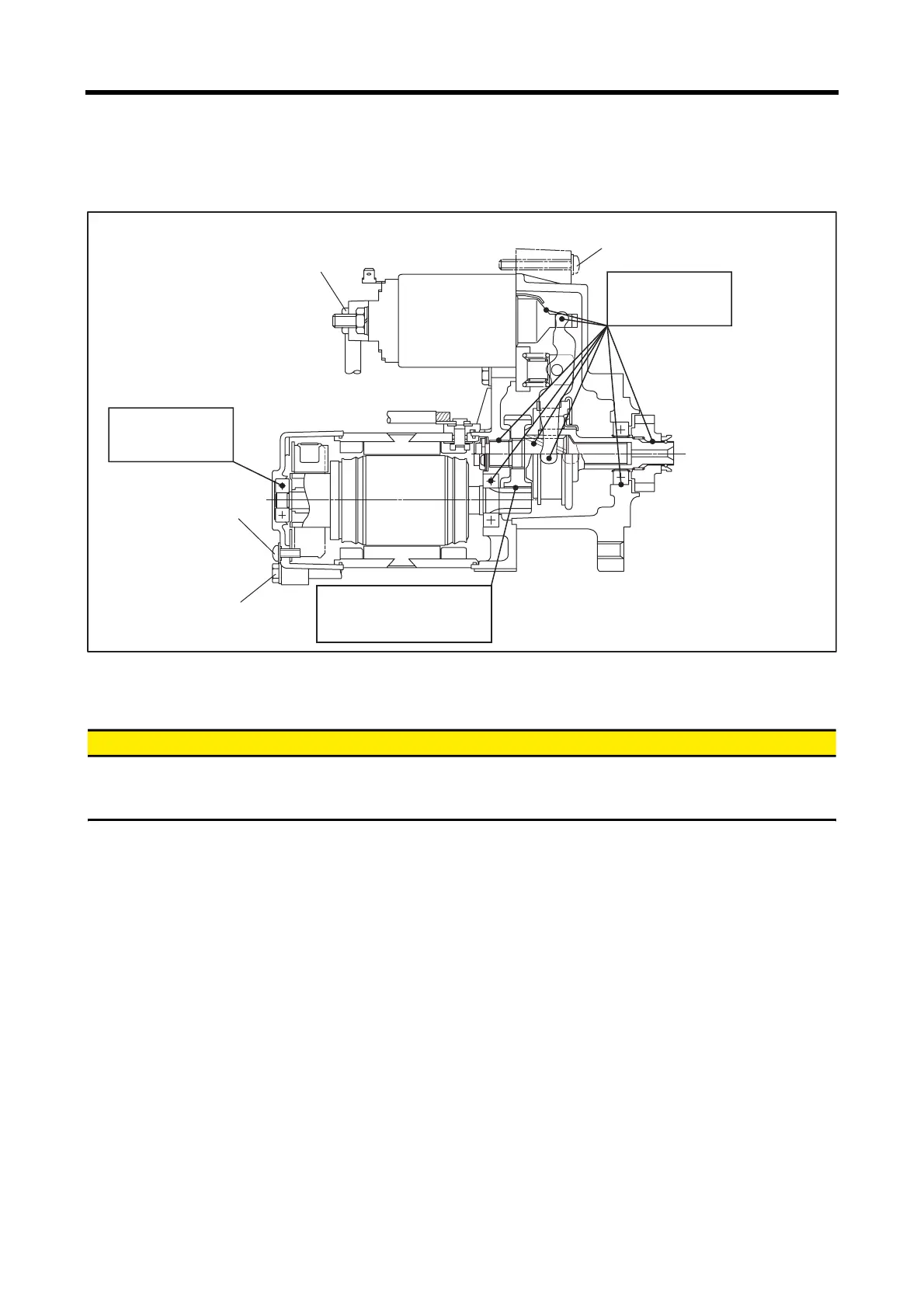

2.9 Reassembling starter (M002T66071 (24V-3.2kW))

Reassembling starter (M002T66071 (24V-3.2kW))

2.9.1 Applying grease

&$87,21

(a) To avoid mixing of different greases, remove old grease before applying new grease.

(b) Make sure that the starter mounting surface, brushes, commutator and other electric current conducting compo-

nents are free from grease.

When overhauling the starter, apply grease to sliding surfaces, gears and bearings in the following:

(1) Parts or areas to which Multemp PS2 (Kyodo Yushi made) or the equivalent is applied

(2) Parts to which Molykote AG-650 (Dow Corning Asia made) or the equivalent is applied

Plunger surface (a small amount) Sliding area between lever and pinion shaft

Lever (at the point of contact with plunger and point of support) Front bearing of armature shaft

Shaft sliding area of pinion shaft Rear bearing of armature shaft

Pinion gear fitting surface Center bracket bearing

Pnion shaft spline

Gear shaft, gear and internal gear of armature

8.8 to 12.7N㨯m

{0.90 to 1.90kgf㨯m}

[7 to 14lbf㨯ft]

2.2 to 4.4N㨯m

{0.24 to 0.45kgf㨯m}

[2 to 3lbf㨯ft]

4.4 to 7.1N㨯m

{0.45 to 0.72kgf㨯m}

[3 to 5lbf㨯ft]

4.1 to 7.6N㨯m

{0.42 to 0.77kgf㨯m}

[3 to 6lbf㨯ft]

Apply Multemp PS2

(Kyodo Yushi made) or

the equivalent.

Apply Multemp PS2

(Kyodo Yushi made) or

the equivalent.

Apply Molykote RAG650 (Dow

Corning Asia made) or the

equivalent.
