ELECTRICAL SYSTEM
12-35
2.9 Reassembling starter (M002T66071 (24V-3.2kW))
Reassembling starter (M002T66071 (24V-3.2kW))
2.9.1 Applying grease
&$87,21
(a) To avoid mixing of different greases, remove old grease before applying new grease.
(b) Make sure that the starter mounting surface, brushes, commutator and other electric current conducting compo-
nents are free from grease.

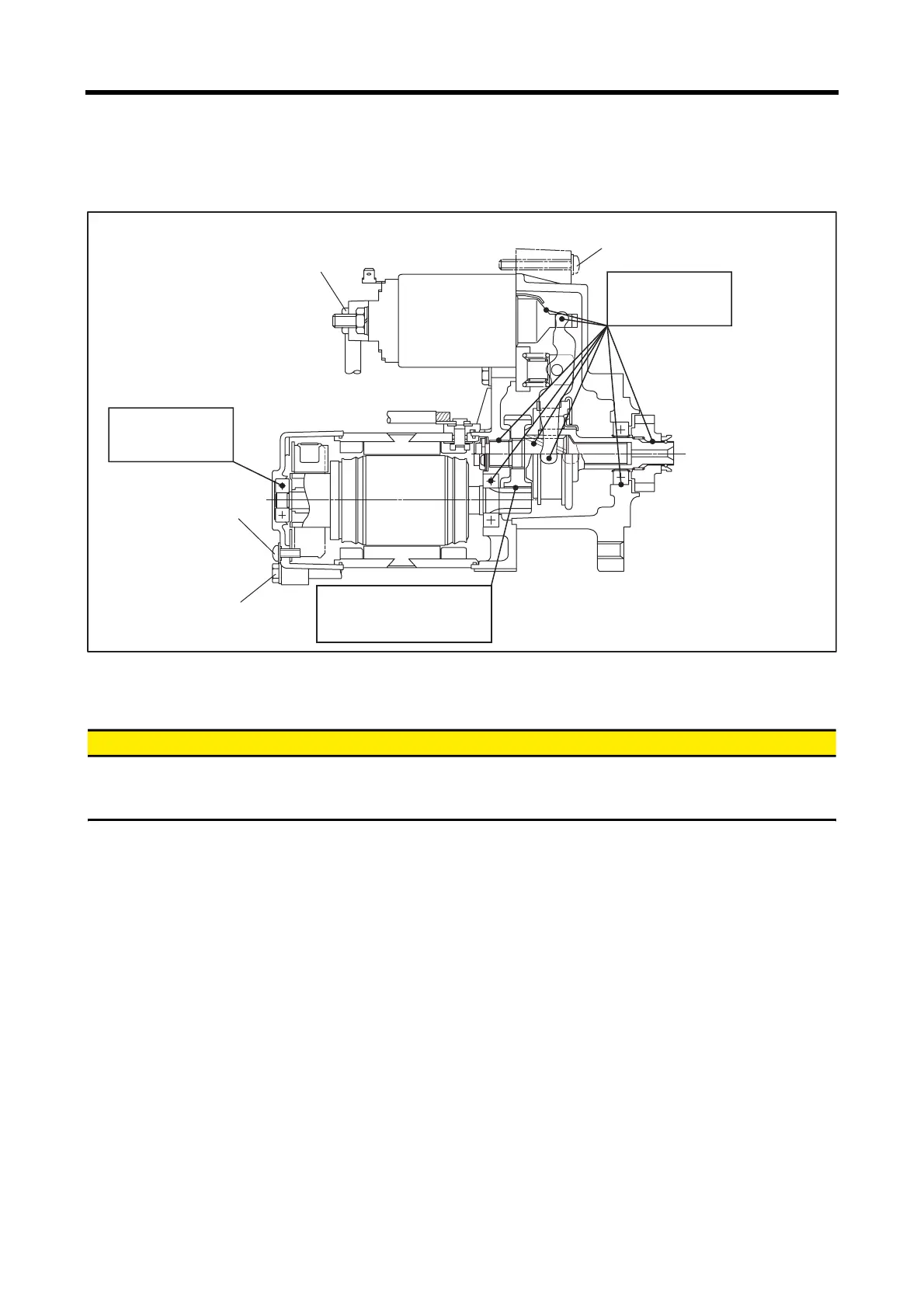

When overhauling the starter, apply grease to sliding surfaces, gears and bearings in the following:
(1) Parts or areas to which Multemp PS2 (Kyodo Yushi made) or the equivalent is applied
(2) Parts to which Molykote AG-650 (Dow Corning Asia made) or the equivalent is applied
Plunger surface (a small amount) Sliding area between lever and pinion shaft
Lever (at the point of contact with plunger and point of support) Front bearing of armature shaft
Shaft sliding area of pinion shaft Rear bearing of armature shaft
Pinion gear fitting surface Center bracket bearing
Pnion shaft spline
Gear shaft, gear and internal gear of armature
8.8 to 12.7N㨯m
{0.90 to 1.90kgf㨯m}
[7 to 14lbf㨯ft]
2.2 to 4.4N㨯m
{0.24 to 0.45kgf㨯m}
[2 to 3lbf㨯ft]
4.4 to 7.1N㨯m
{0.45 to 0.72kgf㨯m}
[3 to 5lbf㨯ft]
4.1 to 7.6N㨯m
{0.42 to 0.77kgf㨯m}
[3 to 6lbf㨯ft]
Apply Multemp PS2
(Kyodo Yushi made) or
the equivalent.
Apply Multemp PS2
(Kyodo Yushi made) or
the equivalent.
Apply Molykote RAG650 (Dow
Corning Asia made) or the
equivalent.
To Next Page
