Mitsubishi LS2-210 User Manual

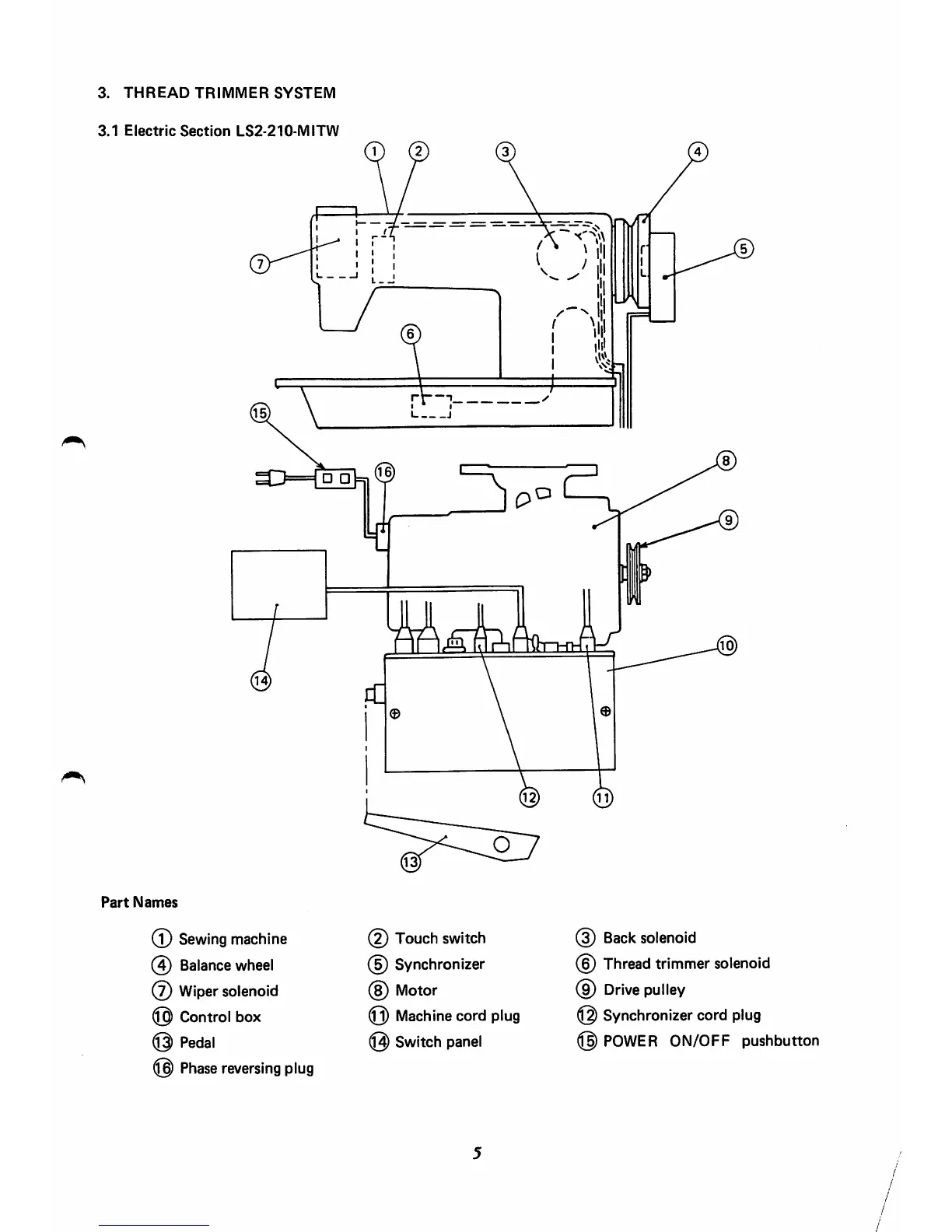

3. THREAD TRIMMER SYSTEM
3.1 Electric Section LS2-210-MITW
Part Names
(T) Sewing machine
@ Balance wheel
(7) Wiper solenoid
@ Control box
@ Pedal
@ Phase reversing plug
(?) Touch switch
Synchronizer
(§) Motor
(Q) Machine cord plug
@ Switch panel
Back solenoid
@ Thread trimmer solenoid
(9) Drive pulley
@ Synchronizer cord plug
@ POWER ON/OFF pushbutton
From the library of: Superior Sewing Machine & Supply LLC

Mitsubishi LS2-210 Specifications

General

Brand	Mitsubishi
Model	LS2-210
Category	Sewing Machine
Language	English
