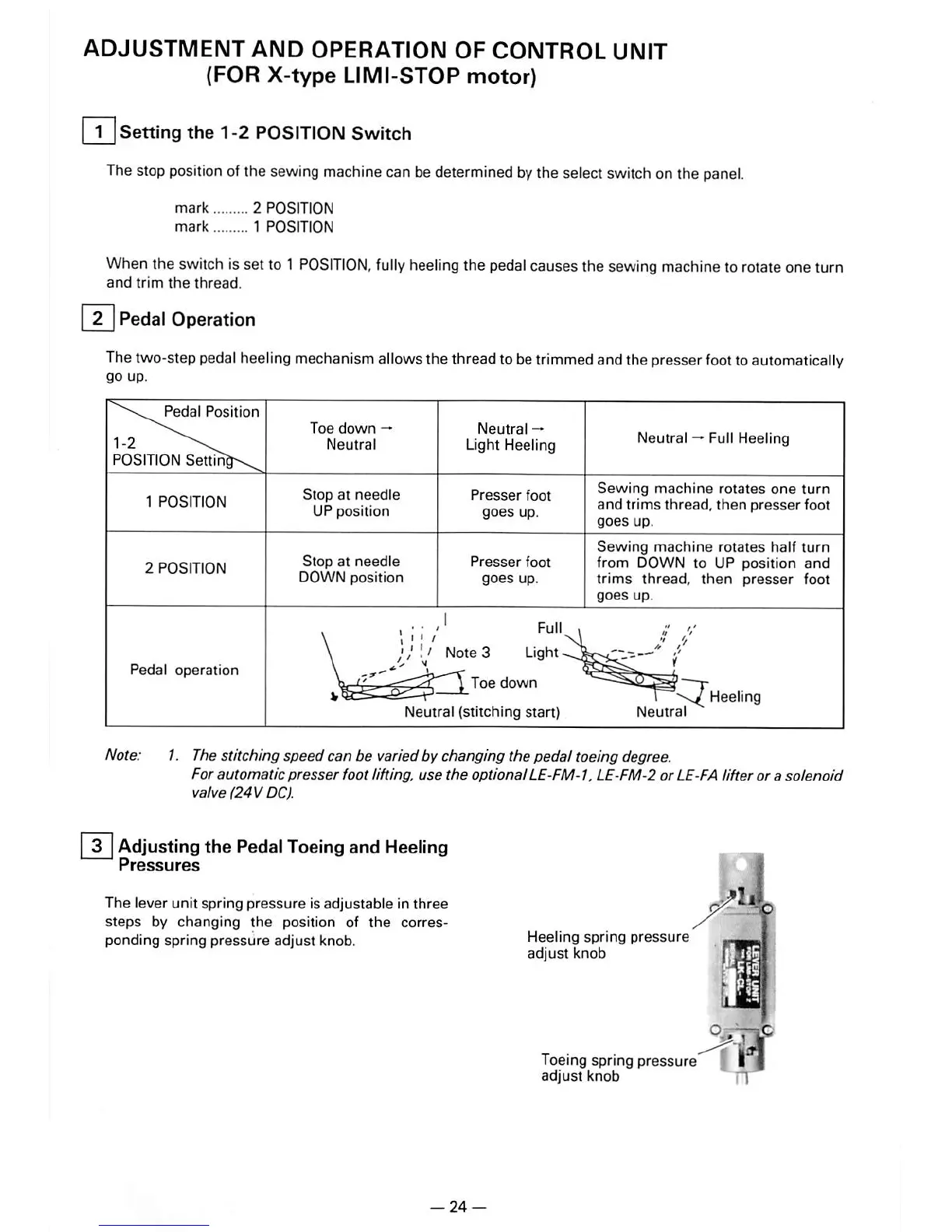

ADJUSTMENT AND OPERATION OF CONTROL UNIT
(FOR X-type LIMI-STOP motor)
n~l Setting the1-2 POSITION Switch
Thestop position ofthe sewingmachinecan be determinedbythe select switchon the panel.
mark 2 POSITION
mark 1 POSITION
Whenthe switchis set to 1 POSITION, fully heelingthe pedalcauses the sewing machineto rotateone turn
and trim the thread.
I2 I Pedal Operation
Thetwo-steppedalheelingmechanismallowsthe thread to betrimmedandthe presser foottoautomatically
go up.
Pedal Position
1-2
POSITION Settin&\
Toe down —
Neutral
Neutral
—
Light Heeling
Neutral —Full Heeling
1 POSITION
Stop at needle
UP position
Presser foot
goes up.
Sewing machine rotates one turn
and trims thread, then presser foot
goes up.
2 POSITION
Stop at needle
DOWNposition
Presser foot
goes up.
Sewing machine rotates half turn
from DOWN to UP position and
trims thread, then presser foot
goes up.
\ '-II /
H f.'
Pedal operation
\ !) Note 3 Light
\f7^^ 511-"""^'"^ down
Neutral (stitching start) Neutral
Note: 1. The stitching speed can be varied by changing the pedal toeing degree.
For automatic presser foot lifting, use the optionalLE-FM-1, LE-FM-2 orLE-FA lifteror a solenoid
valve (24V DC).
I3 [ Adjusting the Pedal Toeing and Heeling
Pressures
The lever unit spring pressure is adjustable in three
steps by changing the position of the corres
ponding spring pressure adjust knob.
Heeling
spring pressure
adjust knob
Toeing spring pressure | •
adjust knob Tl
