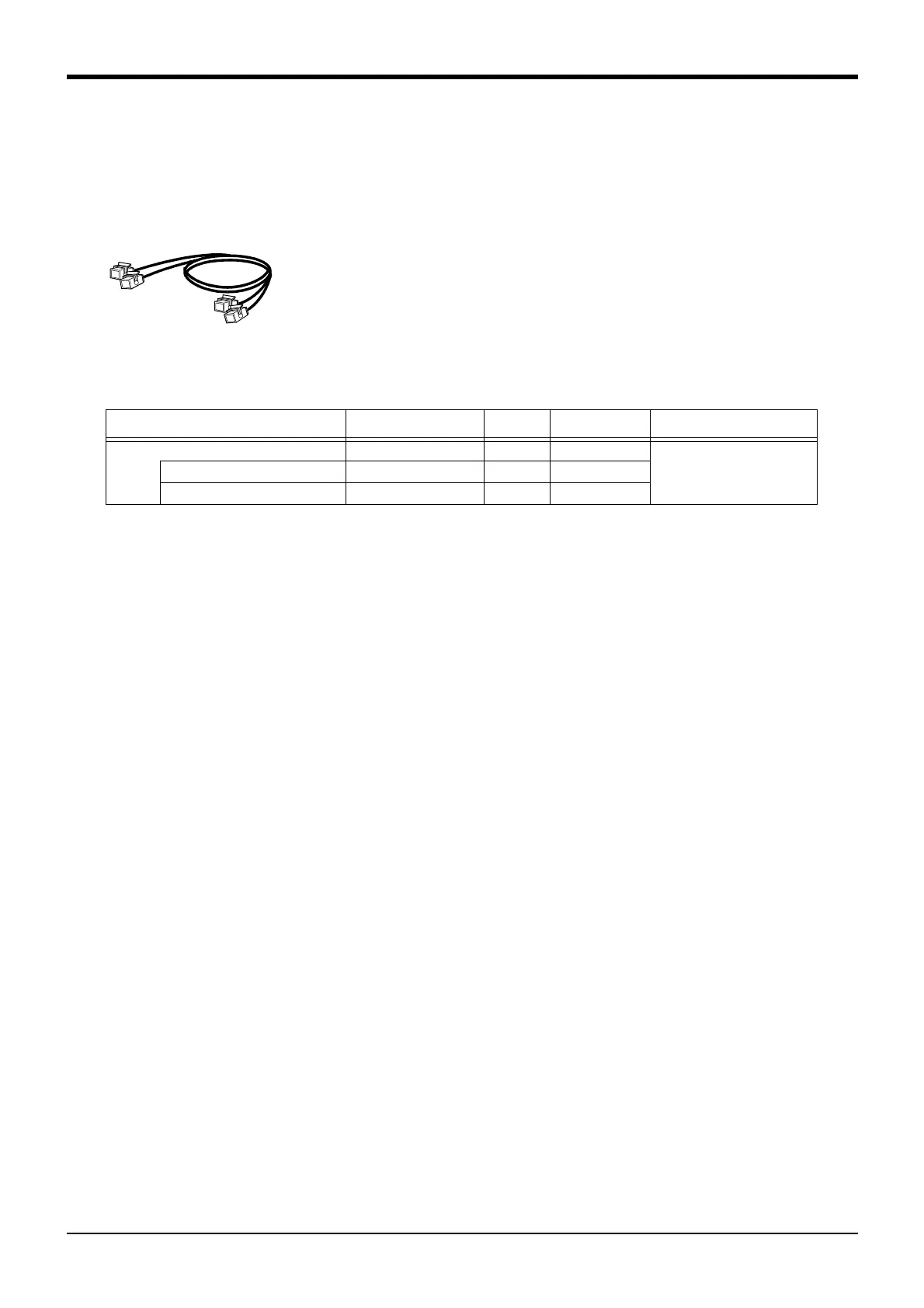

Robot arm
Shipping special specifications, options, and maintenance parts 2-28
(1) Machine cable
Order type: Fixed type 1S-02UCBL-03 (2m)
Outline
This cable is exchanged for the machine cable (5 m for fixed type) that was supplied
as standard to shorten the distance between the controller and the robot arm.
Configuration
Table 2-12 Configuration equipments and types
Note) Standard 5 m (for fixed type) is not attached.
[Caution] Orders made after purchasing a robot are treated as purchases of optional equipment. In this case, the
machine cable (5 m for fixed type) that was supplied as standard is not reclaimed.
Part name Type
Qty. Mass(kg)
Note1)
Note1) Mass indicates one set.
Remarks
Fixed Set of signal and power cables 1S-02UCBL-03 1 set 2.6 2m
Motor signal cable BKO-FA0741H02 (1 cable) -
Motor power cable BKO-FA0768H02 (1 cable) -
