3-55 Outside dimensions/Installation dimensions
3 Controller
3.3.2 Installation dimensions
(1) Installation dimensions of drive unit

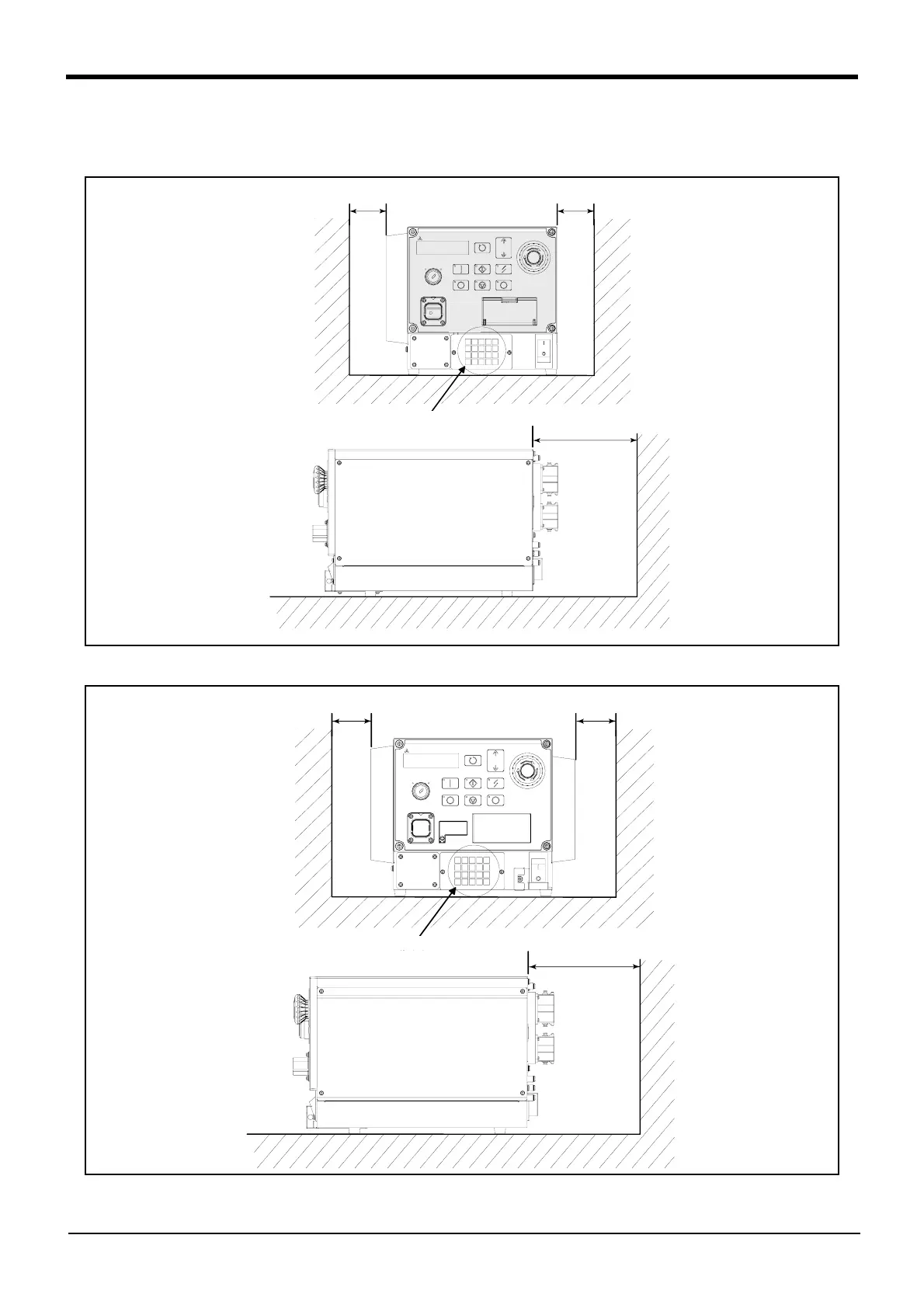

Fig.3-12 ： Installation of controller(DU1A-700 series)
Fig.3-13 ： Installation of controller(DU1A-700 series)
<DU1A-700 series>
Standard specification
170mm以上
20mm50mm
吸気口
Intake vent
170mm or more
170mm以上
20mm50mm
吸気口
<DU1A-700 series>
CE marking specification
Intake vent
170mm or more
