3-63 Emergency stop input and output etc.
3 Controller
Be sufficiently careful and wiring so that two or more emergency stop switches work
independently. Don't function only on AND conditions (Two or more emergency stop
switch status are all ON).

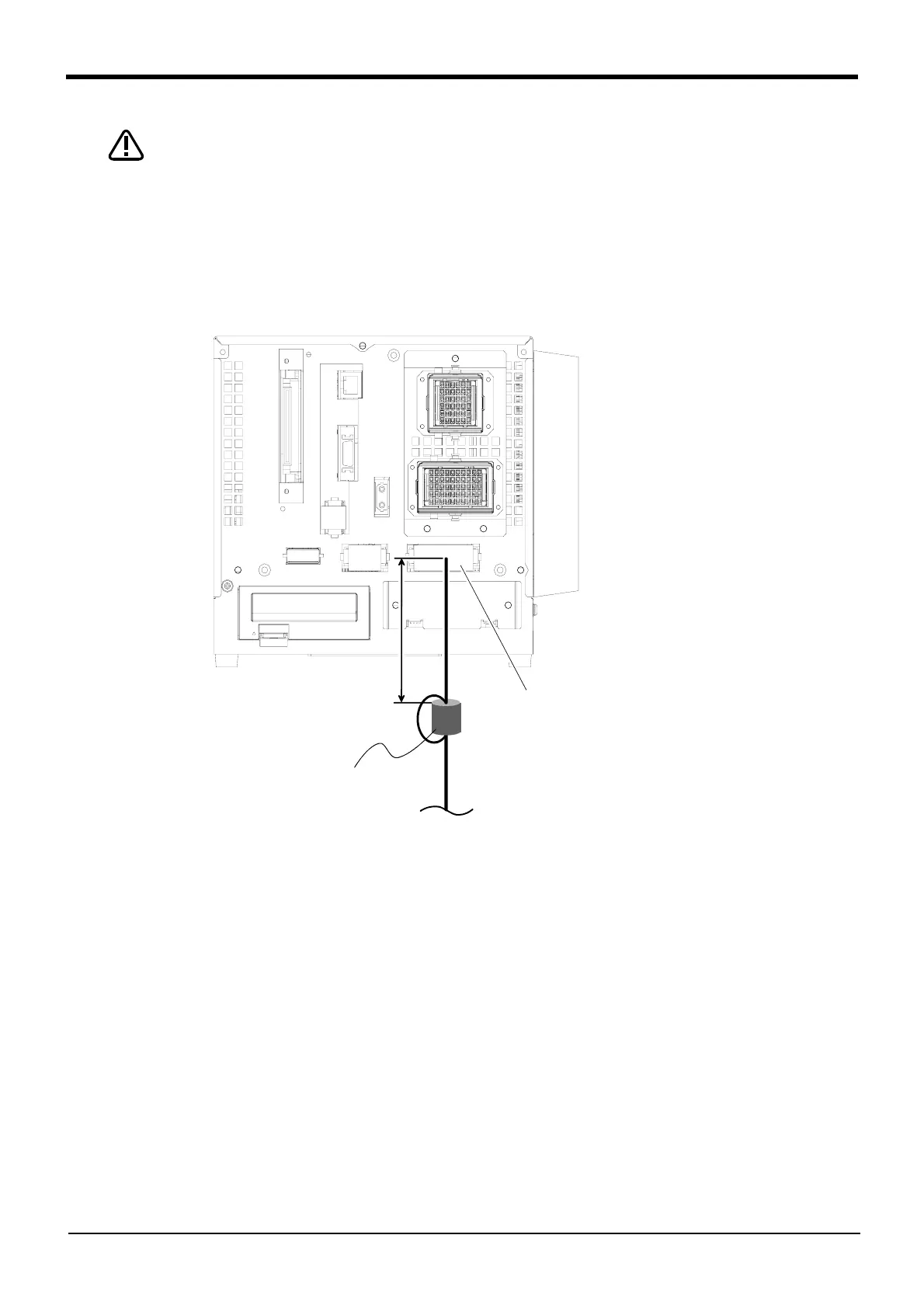

Fig.3-18 ： emergency stop cable connection (DU1A-700)
CAUTION
300mm以 内
EMGINコ ネ クタ
フェライトコア(付属品）
２回通し
<DU1A-700 series>
Pin allotment of EMGIN and the EMGOUT connector is shown in Fig. 3-20.
within 300mm
Ferrite core
(attachments)
Pass twice
* The figure is standard specification.
(The CE marking specification is the same.)
