3-83 Pneumatic hand interface
3 Controller
■ Installation method
This is mounted in the controller.
Attach the pneumatic hand interface (2A-RZ365/2A-RZ375) to the CNHNDOUT/CNHND connector of the hand
interface relay card (2D-TZ315) securely. Refer to separate "Instruction Manual/ Controller setup, basic
operation, and maintenance" for details on the installing method.

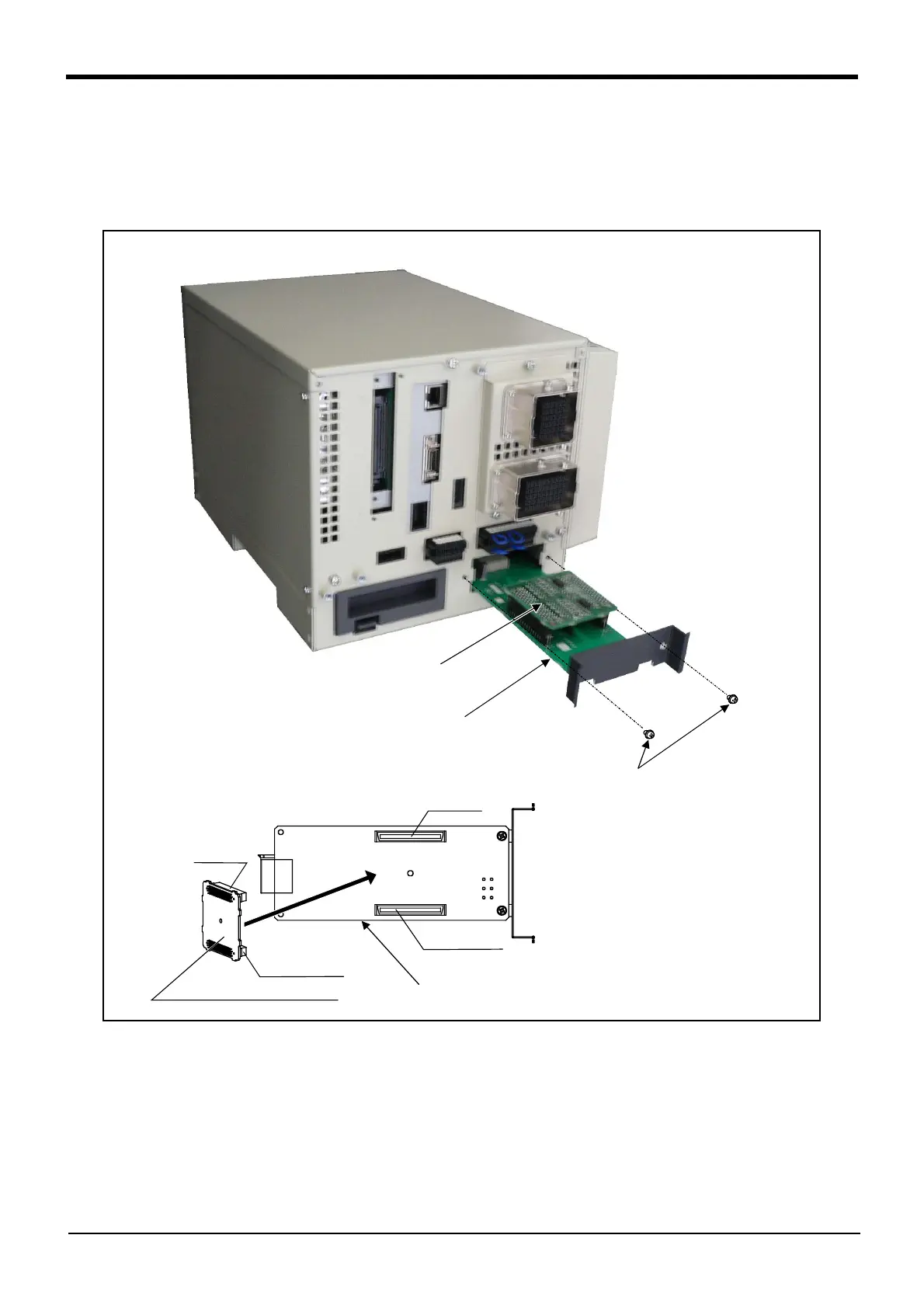

Fig.3-33 ： Installation of the pneumatic hand interface （DU1A-700）
CNHNDOUT
CNHND
Pneumatic hand interface
CNHND
CNHNDOUT
Pneumatic hand interface
（2A
-
RZ365）
Hand interface relay card
（2D
-
TZ315）
M4x2
Hand interface relay card
<DU1A-700>
(2A-RZ365/2A-RZ375)
* The figure is Standard specification.
(The CE marking specification is the
same.)
