Mitsubishi MELSEC-A A1SCPUC24-R2 User Manual

42
(e) Taking rated current or inrush current into consideration when
wiring the power supply, be sure to connect a breaker or an
external fuse that have proper blown and detection.
When using a single programmable controller, a 10A breaker
or an external fuse are recommended for wiring protection.
(f) Note on using the 24 VDC output of the A1S62PN power
supply module.
If the 24 VDC output capacity is insufficient for one power supply
module, supply 24 VDC from the external 24 VDC power supply as
shown below:

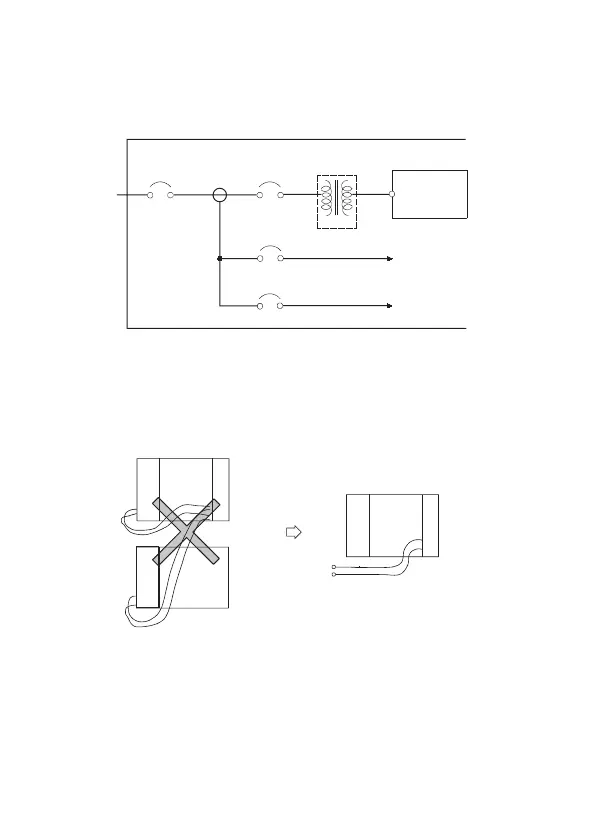

(g) 100 VAC, 200 VAC and 24 VDC wires should be twisted as
dense as possible. Connect the modules with the shortest
distance.
Also, to reduce the voltage drop to the minimum, use the
thickest wires possible (maximum 2mm
2
).
200VAC
controller
Programmable
Main circuit equipment
power supply
Main circuit
On a control panel
I/O equipment
I/O power supply
Transformer
Insulation
power supply
controller
Programmable
block
terminal
Relay
power supply
Main
T1
I/O module
24VDC
24VDC
24VDC
External power supply
Power supply
unit
Power supply
unit
Power supply
unit
I/O module
