50

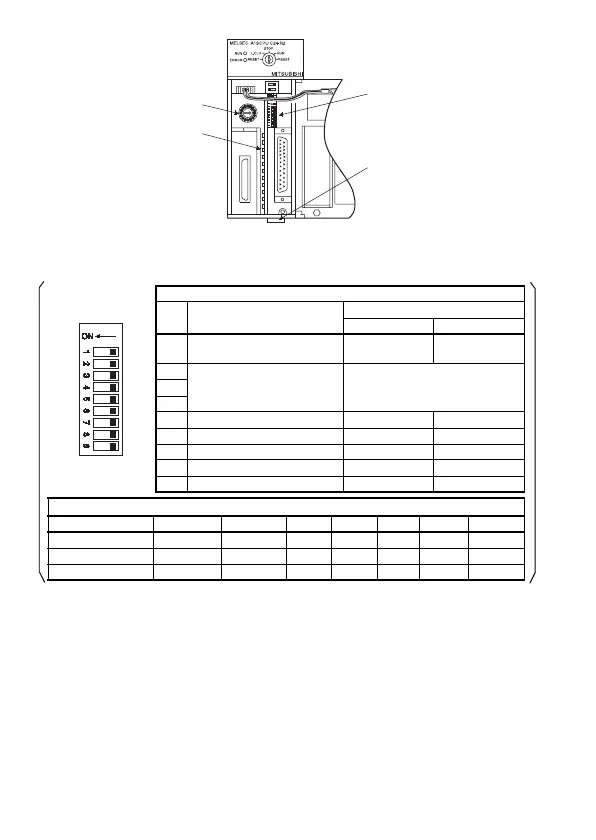

(12) Transmission specification setting switch
Transmission specification settings (factory setting: all OFF)
SW Setting Items
Position of Setting Switch
ON OFF
1
Write during RUN enabled/
disabled setting
Enabled Disabled
2
Transmission speed setting Refer to *13
4
5 Data bit setting 8 bit 7 bit
6 Parity bit setting Set Not set
7 Even/odd parity setting Even Odd
8 Stop bit setting 2 bit 1 bit
9 Sum check setting 7Set Not set
*1 Transmission speed setting
Baud rate (BPS) 300 600 1200 2400 4800 9600 19200
SW05 OFF ON OFF ON OFF ON OFF
SW06 OFF OFF ON ON OFF OFF ON
SW07 OFF OFF OFF OFF ON ON ON
A1SCPUC24-R2
(14)
(13)
(15)
(12)
To Next Page
