8 - 13
LOADING AND INSTALLATION8.

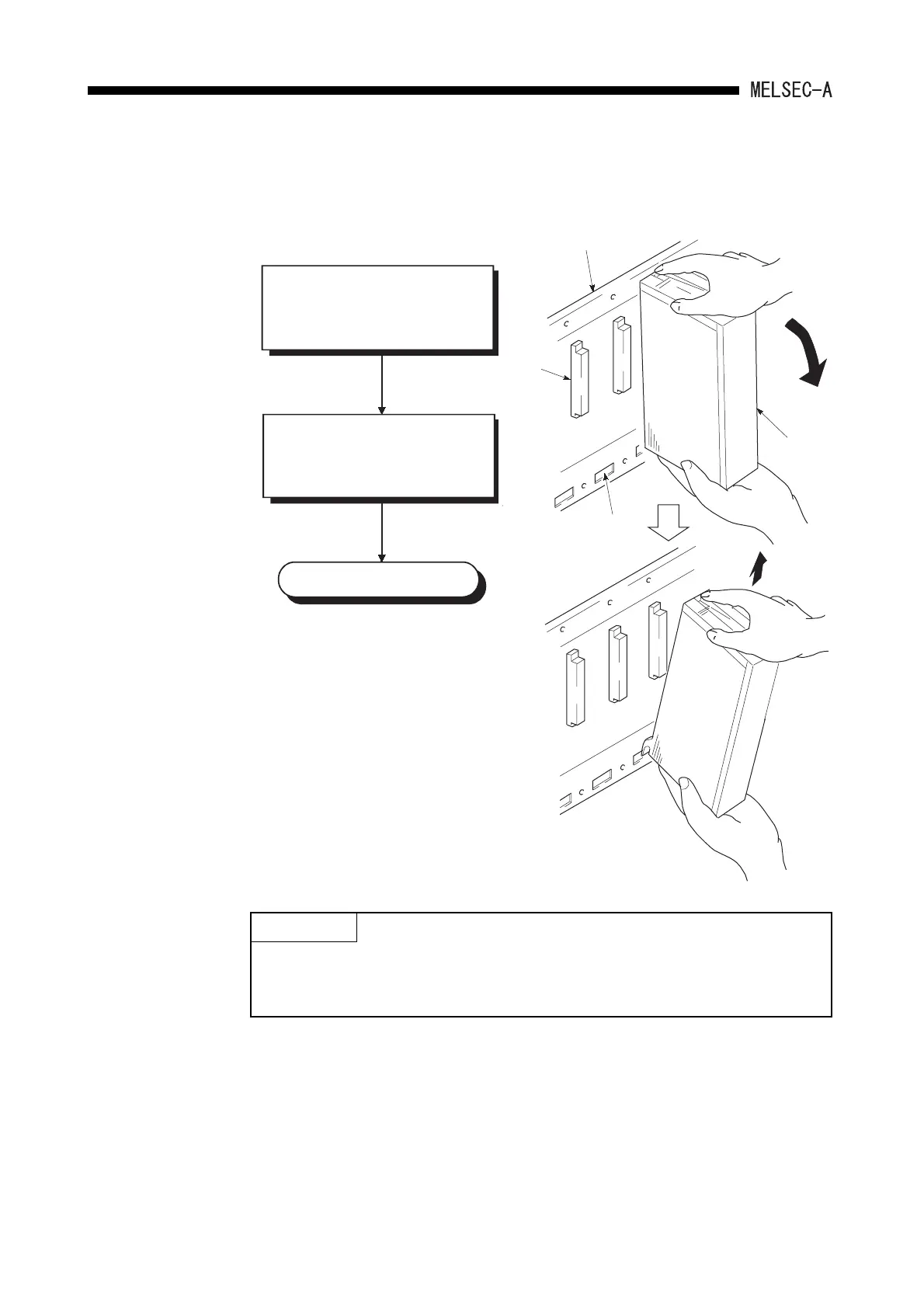

(2) Removal of the module
Removal procedure of the module is explained.
POINT
To remove the module, the module mounting screw must be removed first, then
disengage the module fixing projection from the module fixing hole. If the module
is forcibly removed the module fixing projection will be damaged.
Remove the module installation
screw, then pull out the top of the
module while using the bottom of
the module as the fulcrum.
While lifting the module upward,
disengage the module fixing
projection from the module fixing
hole.
Complete
Base unit
Module
Module fixing hole
Module
connector
