Mitsubishi MSH-A24WV User Manual

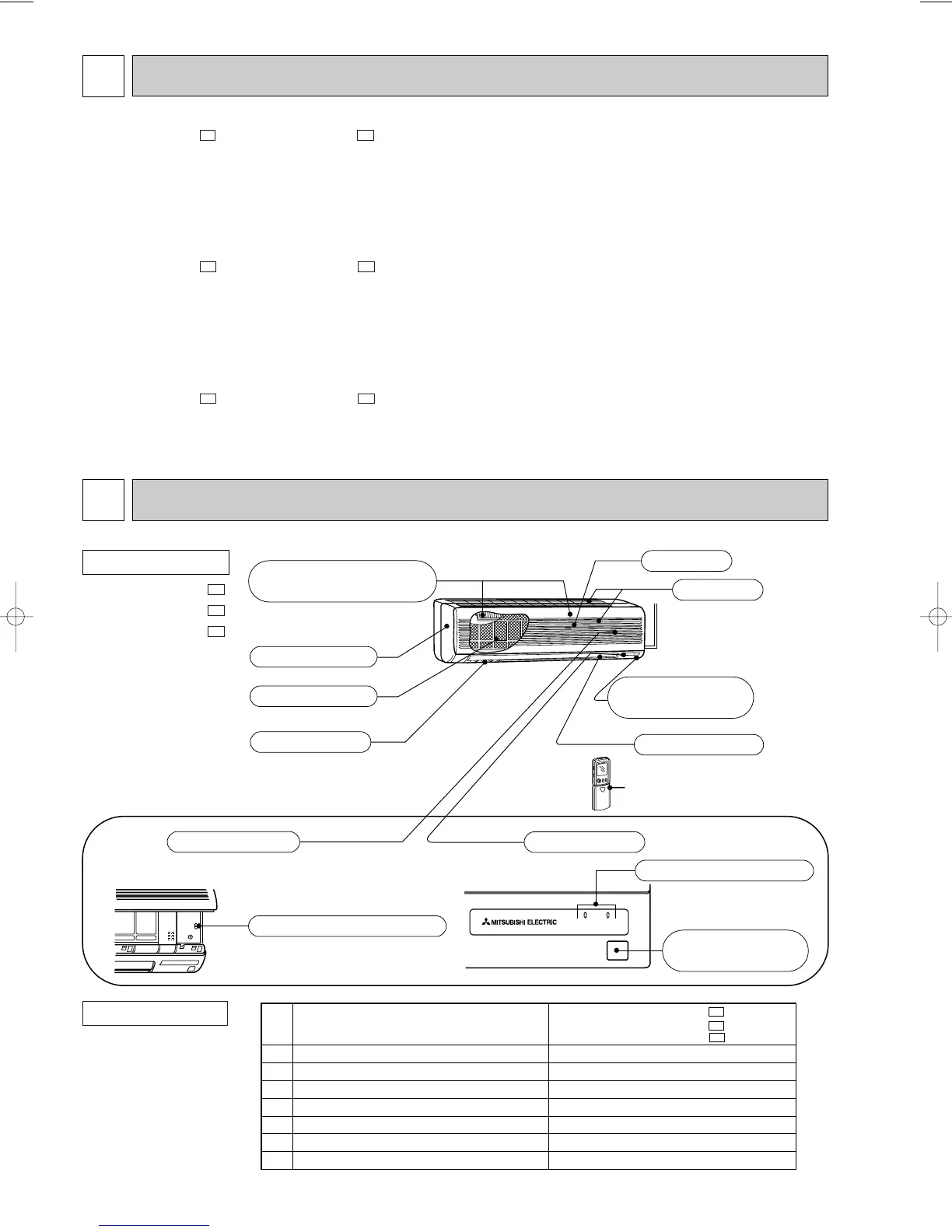

TECHNICAL CHANGES
2
1
PART NAMES AND FUNCTIONS
2
INDOOR UNIT
Grille
(When the grille is opened)
Remote controller
Operation section
Display section
Operation Indicator
Emergency operation switch
Operation indicator lamp
Air inlet
Horizontal vane
Remote control
receiving section
Catechin air filter
Air cleaning filter (option)
(White bellows type)
Vertical vanes
Front panel
Remote control
receiving section
MSH-A18WV -
MSH-A24WV -
MSH-A30WV -
E1
E1
E1
MSH-18RV - ➔MSH-A18WV -
1. Indoor unit model has changed.
2. Rated voltage has changed. (220V-240V ➜ 230V)
3. Remote controller has changed.
•LONG MODE and WIDE MODE have been added.
4. Indoor fan motor has changed.(RA4V27-EF ➜ RC4V32-AA)
5. Indoor heat exchanger has changed.
6. Diameter of connect pipe has changed.(Liquid:[8 ➜ [6.35)
7. Air cleaning filter has changed to catechin air filter.
MSH-24RV - ➔MSH-A24WV -
1. Indoor unit model has changed.
2. Rated voltage has changed. (220V-240V ➜ 230V)
3. Remote controller has changed.
•LONG MODE and WIDE MODE have been added.
4. Indoor fan motor has changed.(RA4V27-EE ➜ RC4V32-AA)
5. Indoor heat exchanger has changed.
6. Diameter of connect pipe has changed.(Liquid:[8 ➜ [6.35)
7. Air cleaning filter has changed to catechin air filter.
MSH-30RV - ➔MSH-A30WV -
1. Diameter of connect pipe has changed.(Gas:[15.88 ➜ [12)
2. Rated voltage has changed. (220V-240V ➜ 230V)
3. Power supply cord has been added.
4. Air cleaning filter has changed to catechin air filter.
E1E1
E1E2
E1E2
ACCESSORIES
Indoor unit
1
2
3
4
5
6
7
Installation plate
Installation plate fixing screw 4 o 25 mm
Remote controller holder
Fixing screw for 3 o 3.5 o 1.6 mm (Black)
Battery (AAA) for remote controller
Wireless remote controller
Felt tape (Used for left or left-rear piping)
1
7
1
2
2
1
1
MSH-A18WV-
MSH-A24WV-
MSH-A30WV-
E1
E1
E1
OB321-1.qxp 03.11.13 4:03 PM Page 2
