Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.

NR-261UM-07LAN4,-07-5WS

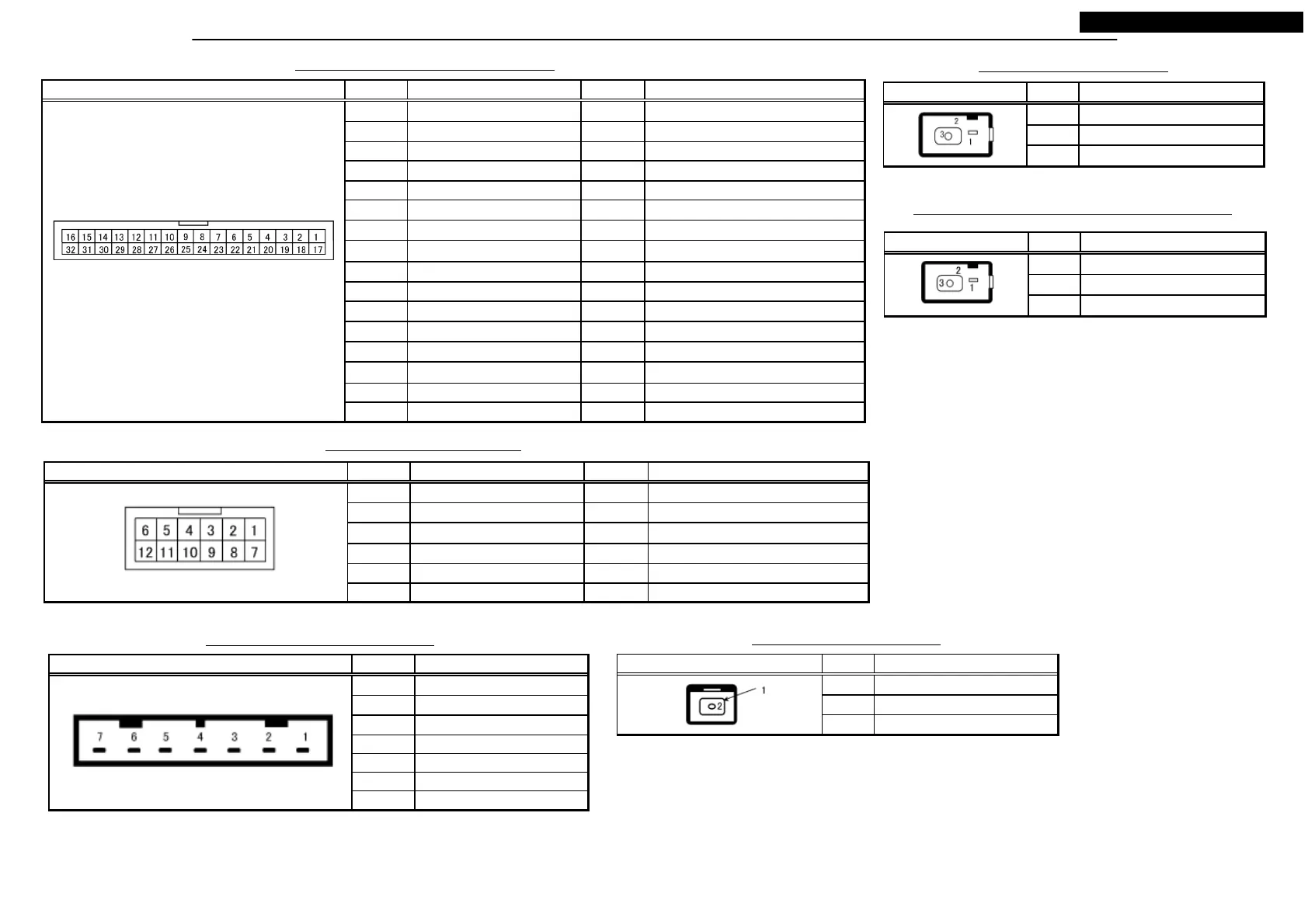

CONNECTORS

*Connector figures are view where it faced the unit.

*Attention of pin numbering different from schematic diagram.

P703 PinNo. Signal Name PinNo. Signal Name

1 - 17 -

2 - 18 -

3TEL MUTE 19 -

4 STEERING REMOTE 20 SHIELD (STEERING REMOTE)

5 - 21 SHIELD (CAN-BOX DATA)

6 - 22 -

7 - 23 -

8 SHIELD (VIDEO-2L/R) 24 VIDEO2 DETECT

9 VIDEO2-R 25 VIDEO2-L

10 VIDEO2-IN 26 SHIELD (VIDEO2-IN)

11 HFM SIGNAL (-)-GND 27 -

12 HFM SIGNAL (+)-R 28 HFM SIGNAL(+)-L

13 - 29 -

14 CAN-BOX DATA RX 30 CAN-BOX DATA TX

15 - 31 CAN-BOX DATA CLK

16 - 32 -

VTR & Remote Control Connector P32

P705 PinNo. Signal Name PinNo. Signal Name

1CAMERA DETECT 7 -

2 SHIELD (CAMERA) 8 -

3 - 9 -

4 C AMERA SIGNAL 10 -

5GND (RC) 11 -

6VCC (RC6.5V) 12 -

Rear Camera Connector 12P

P1G1 PinNo. Signal Name

1SIRIUS-R

2 S-GND (SIRIUS-L/R)

3SIRIUS-L

4BUS(-)

5BUS(+)

6AMP POWER ON

7 ANTENNA-POWER

External Equipment Connector 7P

P2Z0 PinNo. Signal Name

1 GND-GPS

2 GPS ANTENNA SIGNAL

GPS Antenna Connector 2P

P603 PinNo. Signal Name

1 TMC DETECT IN

2 TMC ANTENNA GND

3 TMC ANTENNA SIGNAL

TMC Antenna Connector 3P

P001 PinNo. Signal Name

1 TMC DETECT OUT

2 ANTENNA OUT GND

3ANTENNA OUT

TMC Antenna Distribution Output Connector 3P
