Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
NR-261UM-07LAN4,-07-5WS

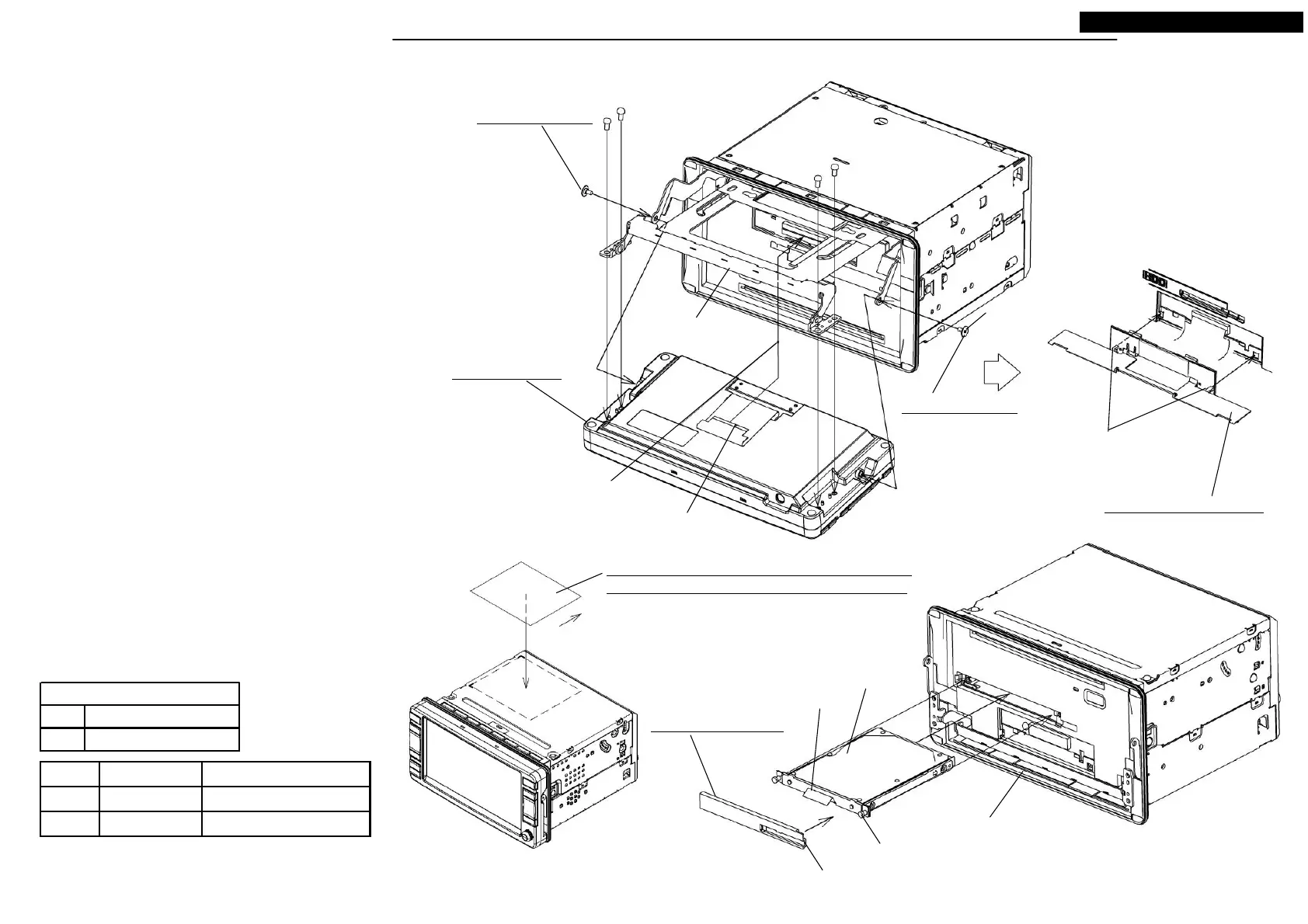

DISASSEMBLING PROCEDURES
M084(1): NAME-CARD(NR-261UM-07LAN4)/
M085(2): NAME-CARD(NR-261UM-07-5WS)
Ⓑ x 4
M024: PIN-MONI
M024: PIN-MONI
M068: ASSY-COVER-F
M051: PANEL-HDD
0.4 +0.15/-0.05PIN-MONIM024
Tighten torque(N・ｍ）Screw/NameNo.
Ⓑ 0.7 +0.2/-0.1M3X6
● Disassembling procedures
In reverse of assembling procedures.
● Assembling procedures
1.Insert the S7-HDD to the S2-CHASSIS, and screw the two screws.
2.Set M051.
3.Pull out the slide part of the S2-CHASSIS, and screw M086 with
the four screws (Ⓑ), and M024.
4.Insert the FPC of M086 to the S2-CHASSIS.
5.Set back the slide after M068 set.
S2-CHASSIS
S7-HDD
Two screws
Fold and set.
Set this hook at first.
Slide
Continuity side
Lock after FPC inserted.
Do not break hexagon socket.
Top
M086: S2-MONI
(1) NR-261UM-07LAN4
(2) NR-261UM-07-5WS
Mod el
Latch the hook at right and left,
then push the top. (After
assembling, check if M068
and the panel is seamless.)
To Next Page
