NR-261UM-07LAN4,-07-5WS
DISASSEMBLING PROCEDURES
● Disassembling procedures
In reverse of assembling procedures.

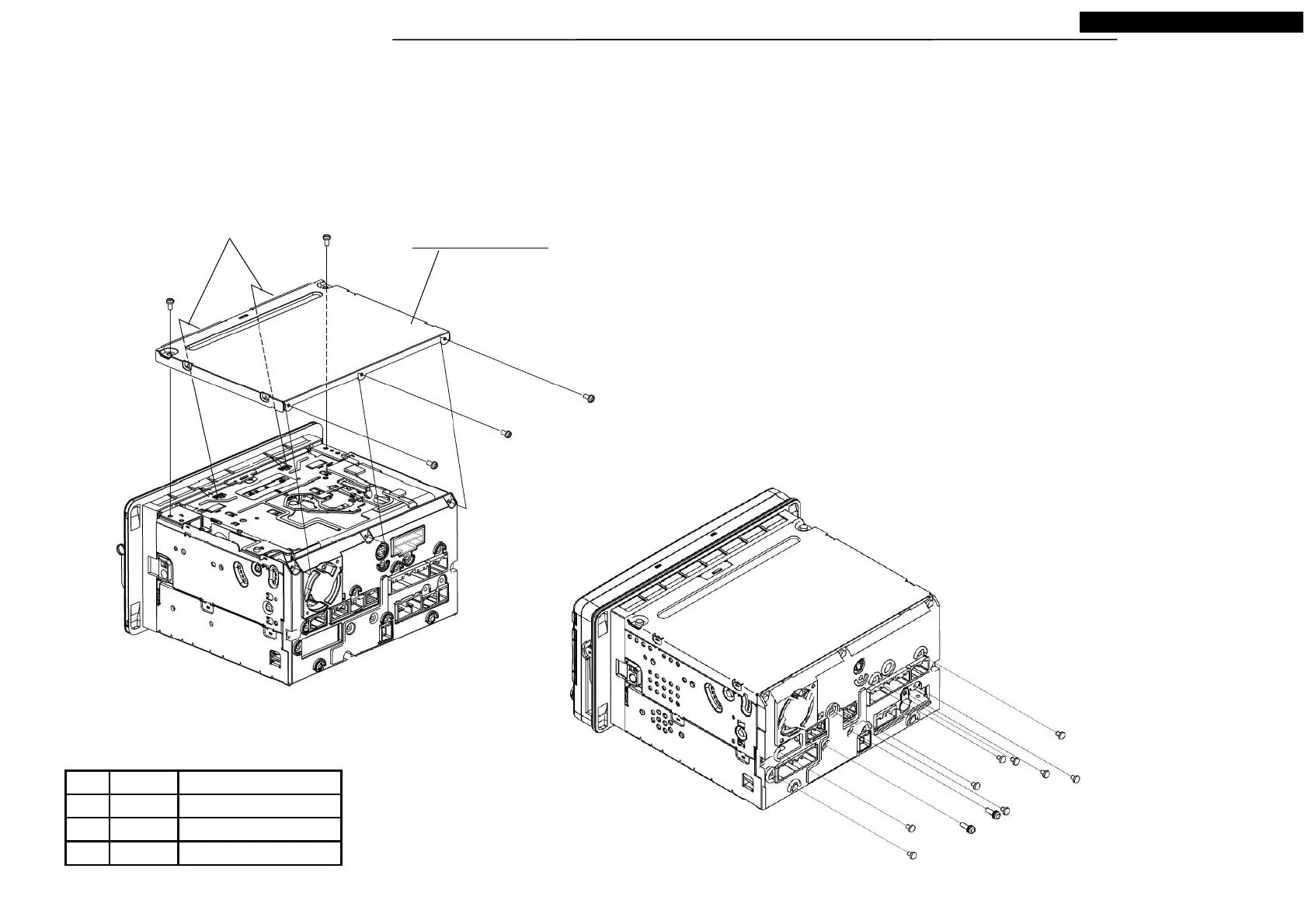

● Assembling procedures
1.Screw M016 with the two screws(Ⓐ) and the three screws(Ⓒ).
2.Screw the nine screws(Ⓒ) and the two screws(Ⓚ).
Ⓒ x 9
Ⓚ x 2
Ⓐ x 2
Ⓒ x 3
M016: COVER-TOP
M3X6 0.4 +0.2/-0.1Ⓐ
Refer in the fig.2.6X4Ⓒ
Tighten torque(N・ｍ）ScrewNo.
Ⓚ 0.7 +0.2/-0.1M3X10
Tighten torque(N ・m) : 0.3 +0.05/-0.05
Tighten torque(N ・m) : 0.4 +0.2/-0.1
Latch the two hooks.

Mitsubishi NR-261UM-07LAN4 Specifications

General

Brand	Mitsubishi
Model	NR-261UM-07LAN4
Category	Car Navigation system
Language	English
