Features and controls
3-159
3

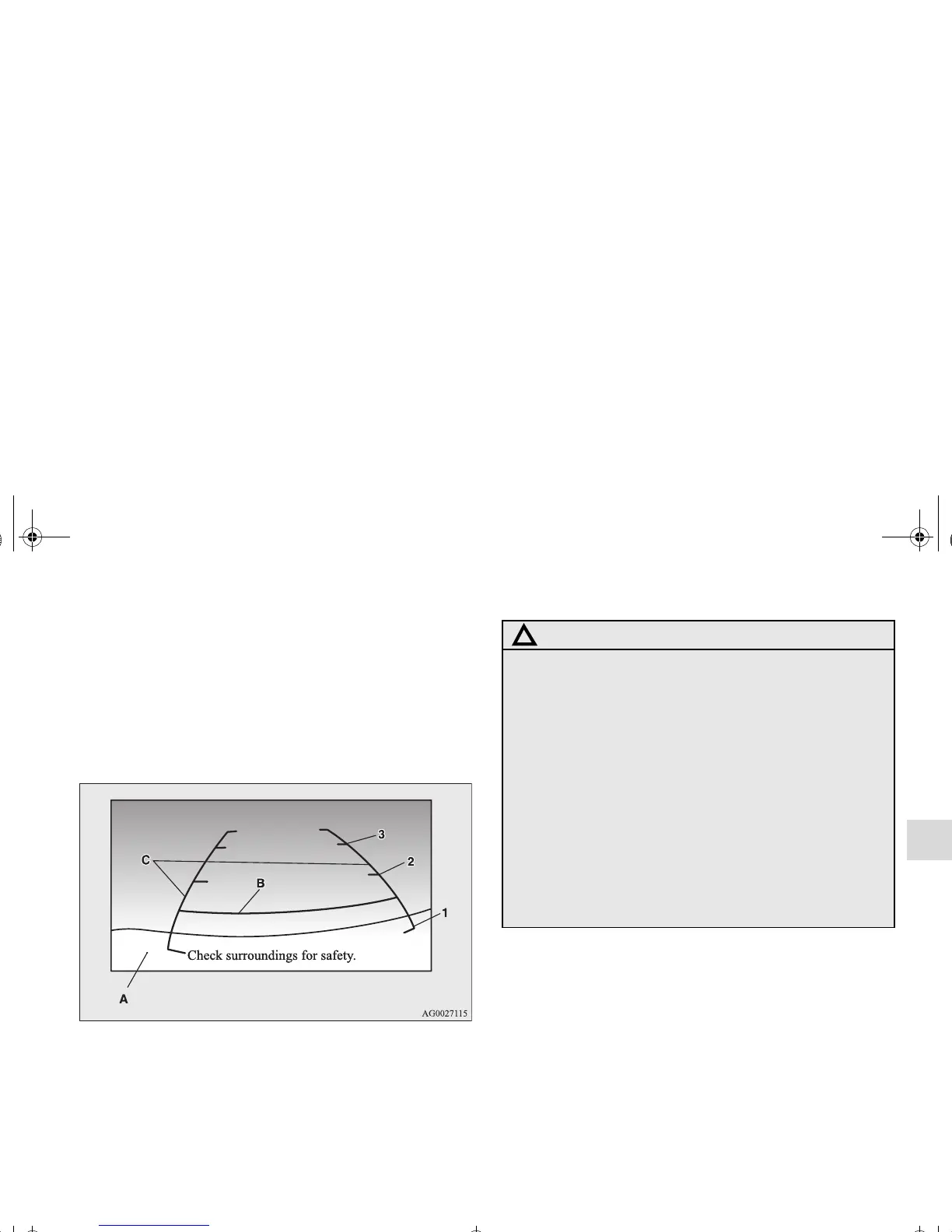

Reference lines on the screen
Reference lines and upper surface of the rear bumper (A) are
displayed on the screen.
● Red line (B) indicates approximately 20 inches (50 cm)
behind the rear bumper.
● Two Green lines (C) indicate approximately 8 inches (20
cm) outside of the vehicle body.
● Short transverse lines (1 to 3) indicate distance from the
rear bumper.
1: Approximately at the rear edge of the rear bumper
2: Approximately 39 inches (100 cm)
3: Approximately 79 inches (200 cm)
CAUTION
!
● The rear-view camera uses a wide-angle lens. As a
result, images and distances shown on the screen are
not exact.
● Actual distance may be different from distance indi-
cated by the lines on the screen, depending on the
loading condition of the vehicle and road surface
condition.
The reference lines for distance and vehicle width
are based on a level, flat road surface. In the follow-
ing cases, objects shown on the screen will appear to
be farther off than they actually are.
• When the rear of the vehicle is weighed down with
the weight of passengers and luggage in the vehi-
cle. (Case 1)
• When there is an upward slope at the back.
(Case2)
BK0150600US.book 159 ページ ２０１２年３月３０日 金曜日 午前１０時４３分
