How the Supplemental Restraint System works
N00407800434

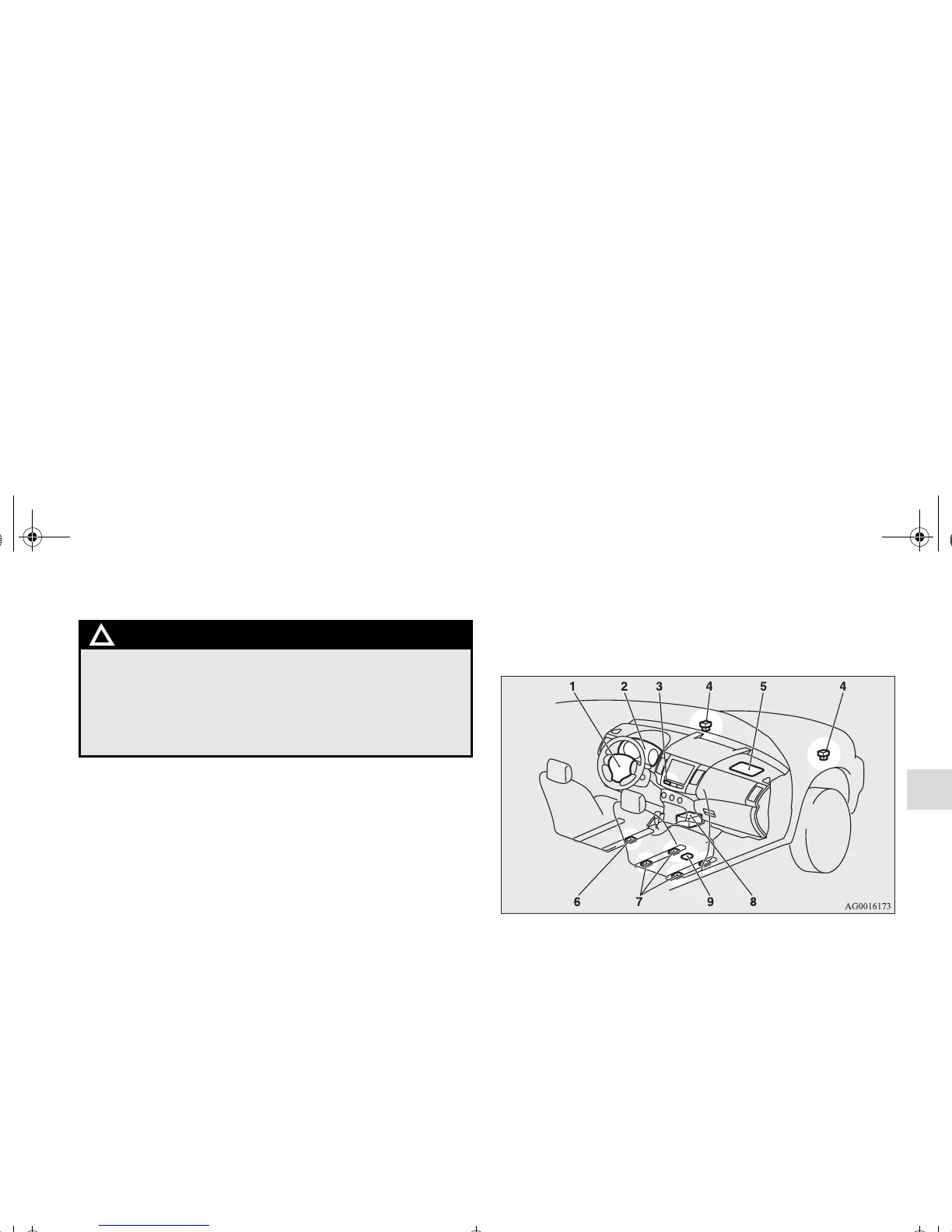

The SRS includes the following components:
WARNING
!
● Older children should be seated in the rear seat with
their seat belt properly worn, and with an appropri-
ate booster seat (including a booster cushion) if
needed.
Refer to “Children who have outgrown child
restraint systems” on page 2-60.
1- Airbag module (Driver)
2- SRS warning light
3- Passenger’s airbag off indicator
4- Front impact sensors
5- Airbag module (Passenger)
6- Driver’s seat position sensor
7- Passenger’s seat weight sensors
8- Airbag control unit
9- Weight control unit
