22- High coolant temperature warning lamp
- (red) ® p. 5-52
23- Low coolant temperature indication
lamp (blue) ® p. 5-49
24- Diesel preheat indication lamp (diesel-
powered vehicles) ® p. 5-49
25- Active Stability Control (ASC) indica-
tor* ® p. 6-68
26- Active Stability Control (ASC) OFF in-
dicator* ® p. 6-68
27- Anti-lock brake system (ABS) warning
lamp ® p. 6-65
28- Supplement Restraint System (SRS)
warning lamp ® p. 4-36
29- Check engine warning lamp ® p. 5-51
30- Seat belt warning lamp ® p. 4-13
31- Tyre pressure monitoring system warn-
ing lamp* ® p. 6-101
32- Brake warning lamp ® p. 5-50
33- Multi information display ® p. 5-20

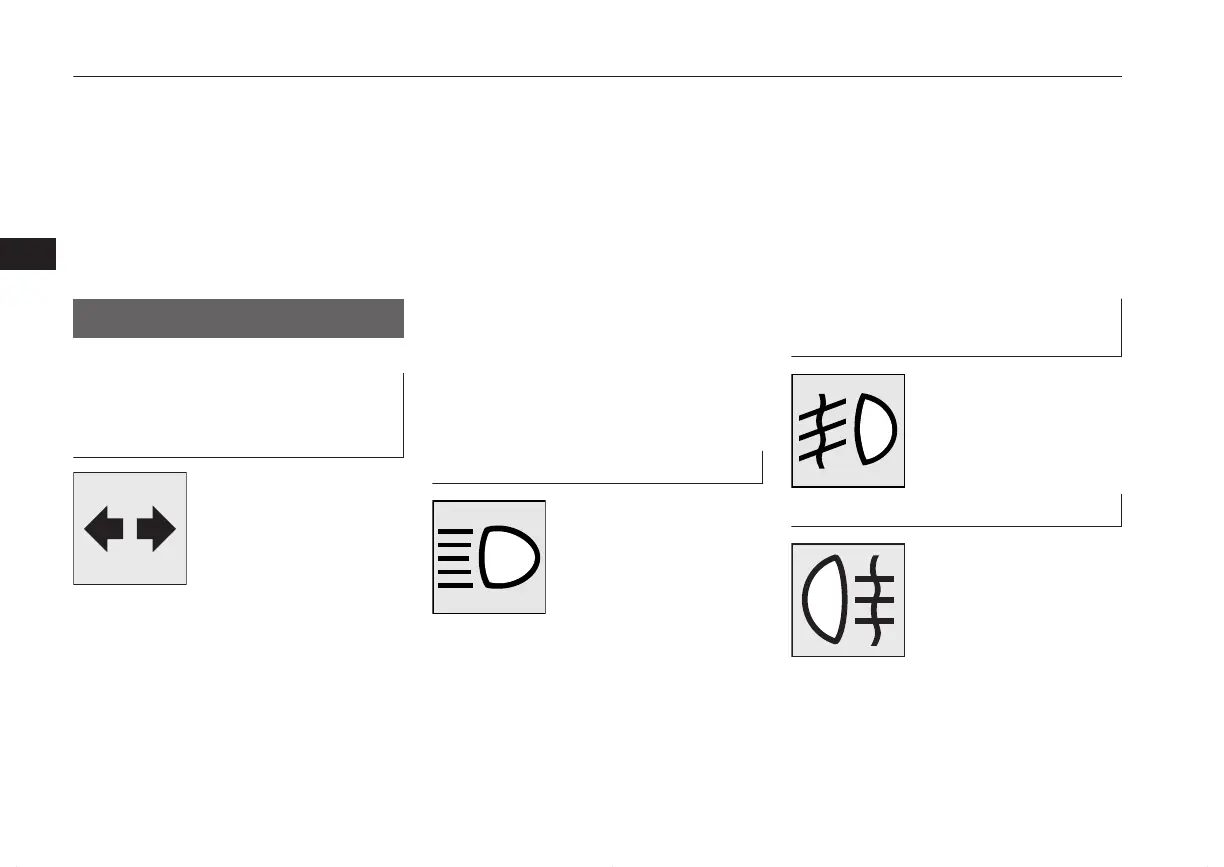

Indication lamps
E00501600100
Turn-signal indication lamps/
Hazard warning indication
lamps
E00501701515
These indication lamps blink
in the following situations.
l
When the turn-signal
lever is moved to acti-
vate a turn-signal lamp.
Refer to “Turn-signal
lever” on page 5-61.
l
When the hazard warning flasher switch
is pressed to activate the hazard warning
lamps.
Refer to “Hazard warning flasher
switch” on page 5-62.
l
When the hazard warning lamps auto-
matically activate due to sudden braking
while driving. (Vehicles equipped with
the emergency stop signal system) Refer
to“Emergency stop signal system” on
page 6-63
High-beam indication lamp
E00501800173
This indication lamp illumi-
nates when the high-beam is
used.
Front fog lamp indication
lamp*
E00501900493
This lamp illuminates while
the front fog lamps are on.
Rear fog lamp indication lamp
E00502001241
This lamp illuminates while
the rear fog lamp is on.
Indication lamps
5-48
OGFE16E1
Instruments and controls
5
