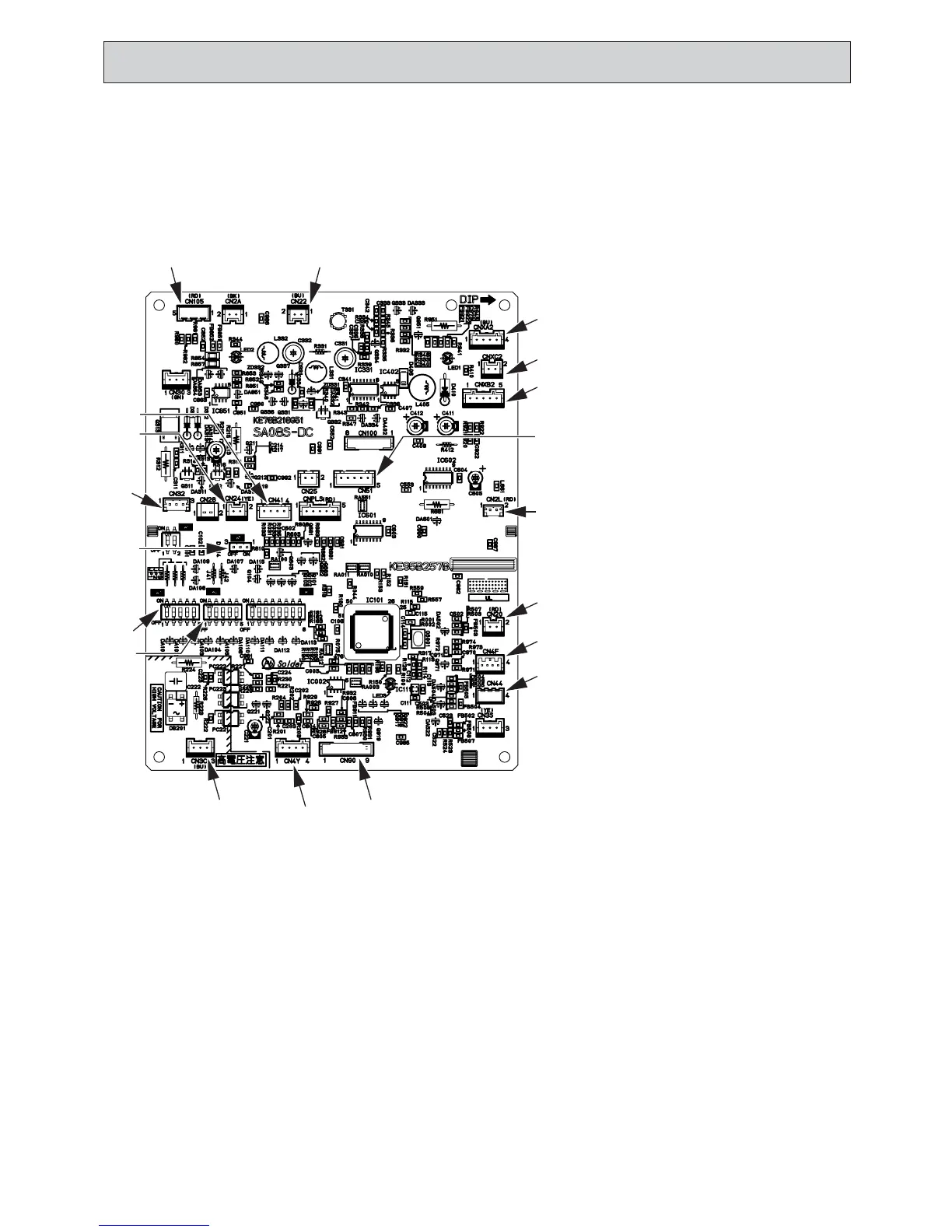

10-5-2. Indoor controller board
PEAD-A24AA4
PEAD-A30AA4
PEAD-A36AA4
PEAD-A42AA4
SWE Emergency operation
SW1 Model selection
SW2 Capacity setting
CN105 Radio frequency interface
CN32 Remote start/stop adapter
CN22 For MA remote controller cable con-
nection
(10 - 13 VDC (Between 1 and 3.))
CN51 Centralized control
CN41 JAMA standard HA terminal A
CN44 Thermistor
(liquid/condenser/evaporator
temperature)
CN4F Float thermistor
CN20 Thermistor (Inlet temperature)
CN24 Heater control (12VDC)
CN4Y For fan control
CN3C Indoor-outdoor transmission
(0 - 24VDC)
CN90 Wireless remote controller
CNXA2
Connect to the indoor controller board
CNXB2
Connect to the indoor controller board
CNXC2
Connect to the indoor controller board
CNXA1
Connect to the indoor power board
CNXB1
Connect to the indoor power board
CNXC1
Connect to the indoor power board
CN22CN105
CN41
CN24
CN32
SW1
SW2
CN2L
SWE
CN51
CN3C
CN90
CN4Y
CN44
CN4F
CN20
CNXB2
CNXC2
CNXA2
