4. Thermistor (Condenser/evaporator)
(Liquid pipe)
1. Remove the drain pan according to the proce-
dure in section [3].
2. Removing the Heat exchanger cover
(1) Remove the four fixing screws on the heat
exchanger cover (F) to remove it.
3. Removing the thermistor
(1) Remove the thermistor (G) from the thermistor
holder (H) on the copper tube.
Thermistor size
Liquid pipe: ø8mm
Condenser/evaporator: ø6mm

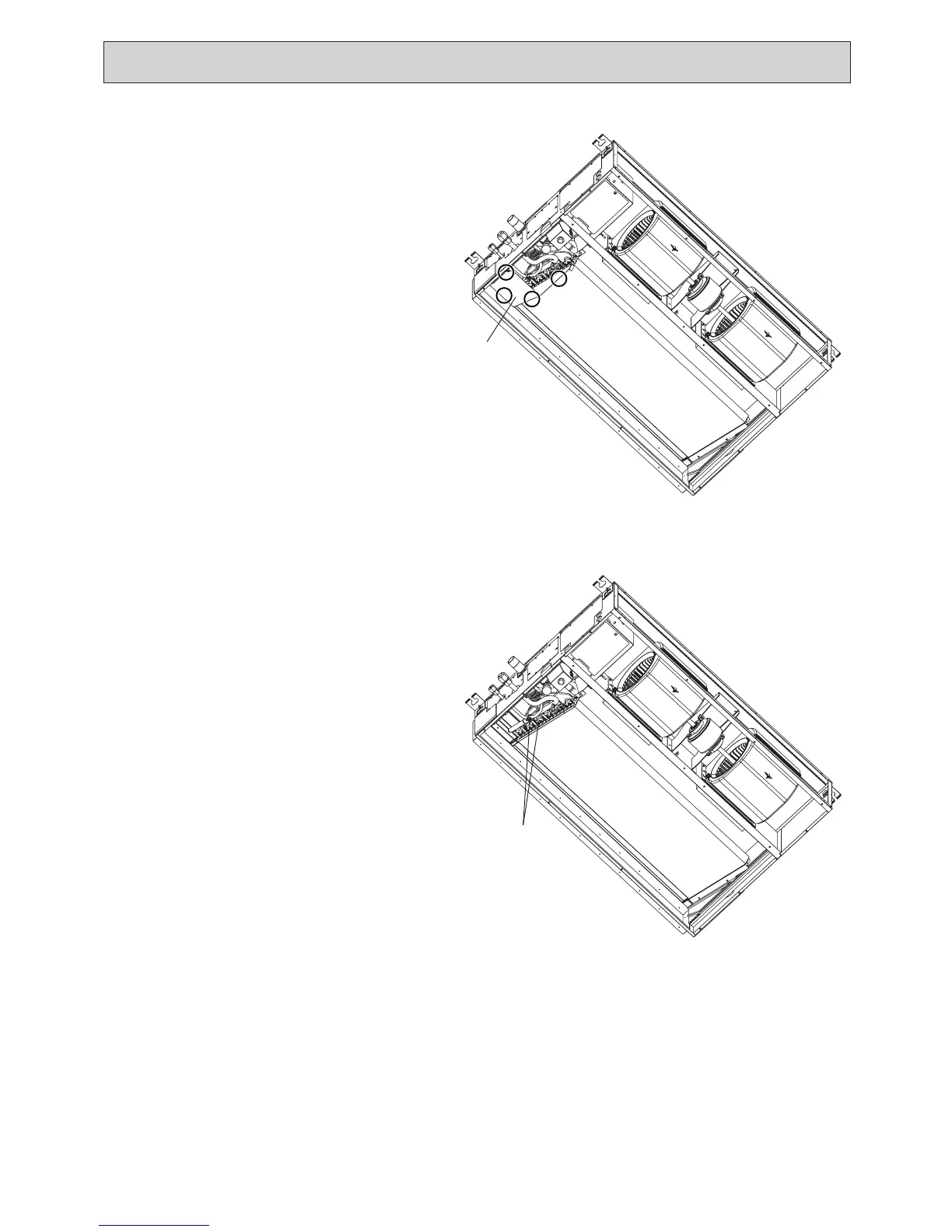

Fig. 6
Fig. 7
Exercise caution when removing heavy parts.
