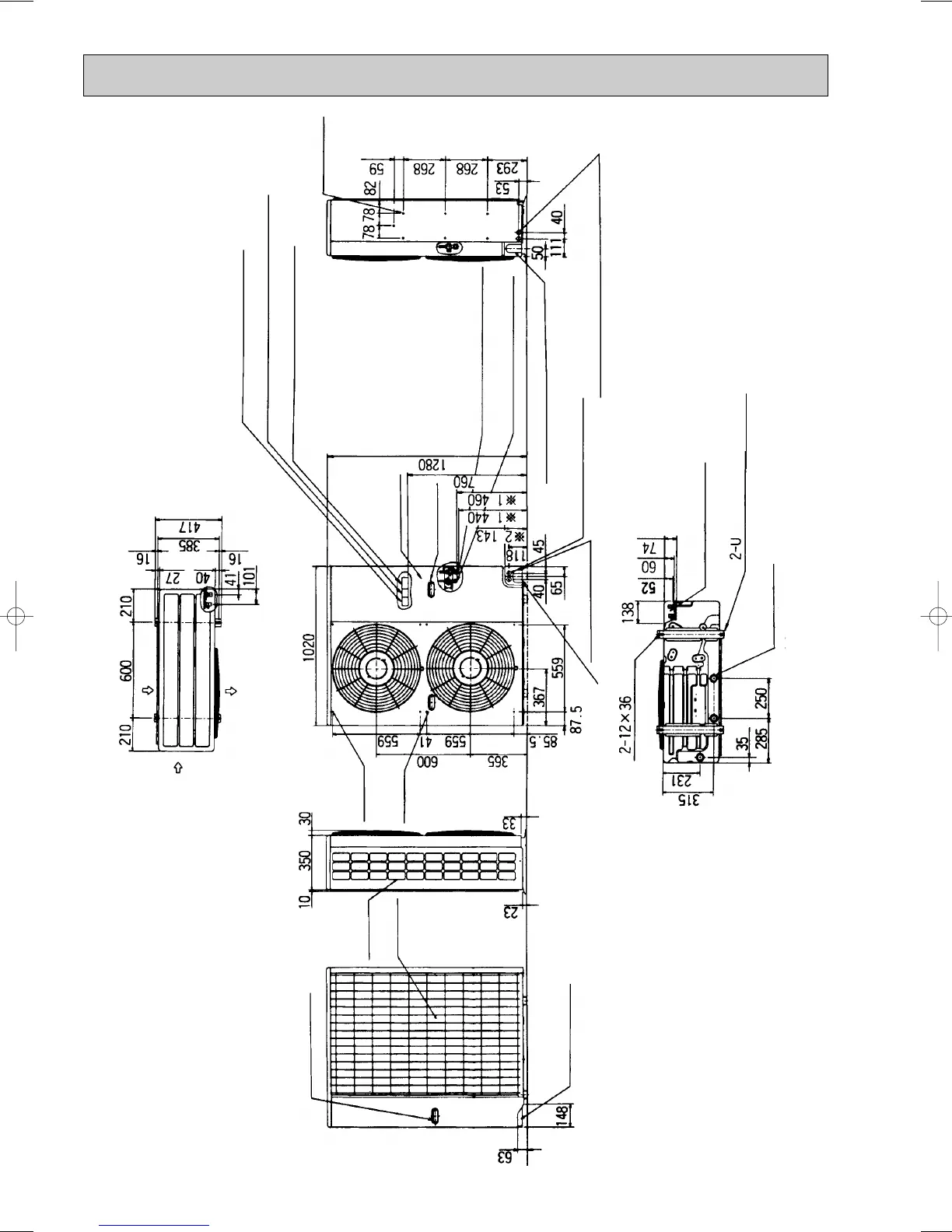

Air intake
Air outlet
Terminal block for transmission
Terminal block for central control
Terminal block for power source
Handle for moving
Rear piping hole
Side air intake
Rear air intake
Optional parts
installation hole
Handle for
moving
Piping cover
Oval holes
(standard bolt M10)
Knock out hole for
front piping
Knock out holes for
power line 2-{27
Gas refrigerant-pipe
connection {19.05 (3/4F)
Liquid refrigerant pipe
connection {9.52 (3/8F)
Knock out hole for right piping
Bottom piping hole
shaped notched holes
(standard bolt M10)
Drain hole
(3-{33 hole)
Optional parts
(base branching
pipe) installation
hole
Knock out holes for power line 2-{29
1...Indicates the dimensions of the cutoff valve connector.
2...Make sure that the panel can be easily removed for maintenance
when a piping cover is used for aesthetic reasons.
unit : mm
PUMY-125VM
PUMY-125VM1
PUMY-125VM2
PUMY-125YM
PUMY-125YM1
PUMY-125VMA
PUMY-125VMA1
PUMY-125YMA
