Mitsubishi PUMY-71VM - Page 92

92

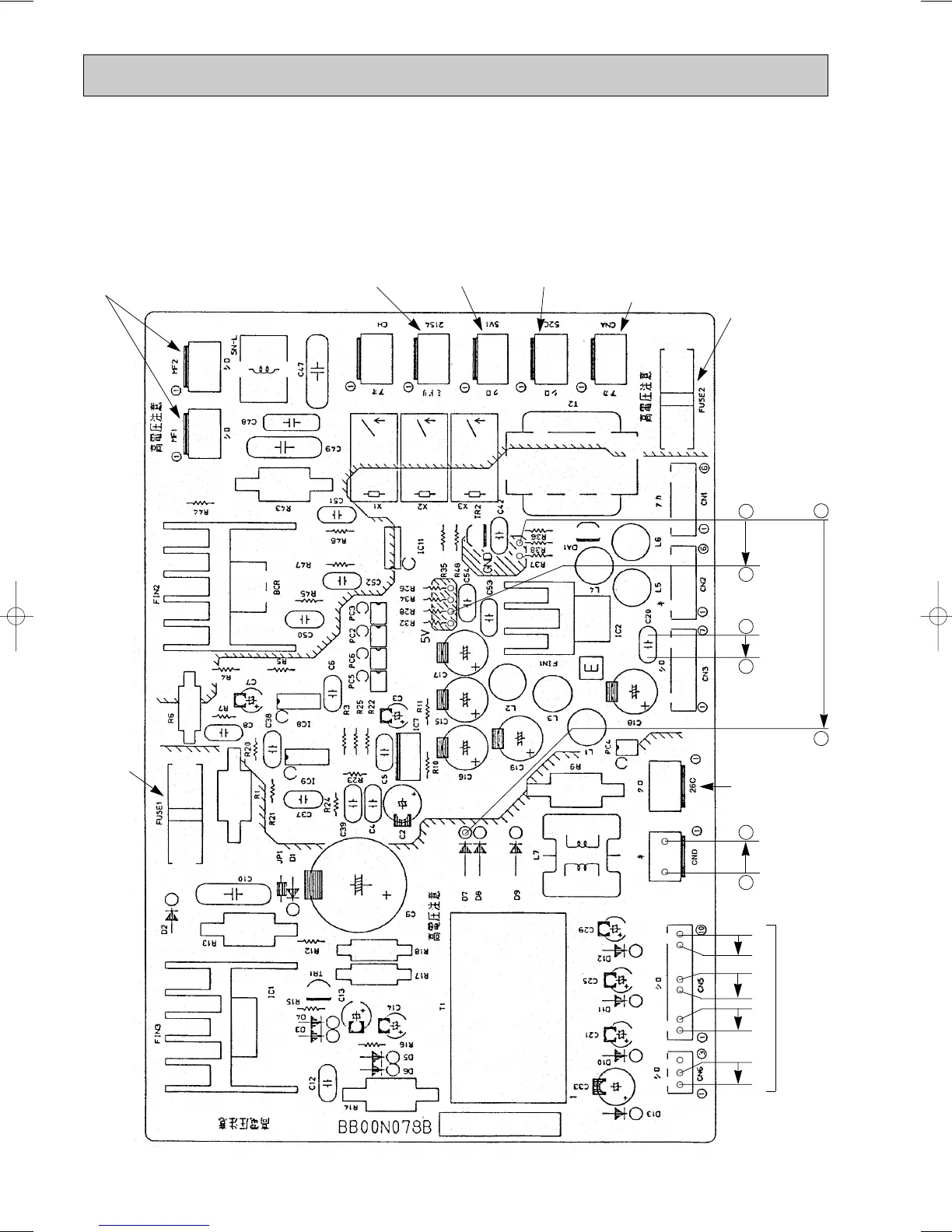

8-8-2. Outdoor power supply board
PUMY-71VM PUMY-125VM
PUMY-71VM1 PUMY-125VM1
PUMY-71VM2 PUMY-125VM2
MF1, MF2
Connect to
fan motor
FUSE1
FUSE
250V AC
2A
21S4
4-way coil
52C
52C Relay
SV1
Solenoid coil
CNA
Power supply
(220-230V AC)
FUSE2
FUSE
250V AC
6A
–
+
5V DC
4.75–5.25V
–
+
30V DC
27.3–30V
12V DC
11.5–15.6V
–
+
26C
Thermal switch
<Compressor>
Bus-bar
voltage
280V DC
–
+
IPM
drive
power
supply
13-17V
CN5
CN6
11
22
11
22
55
66
99
00
