94

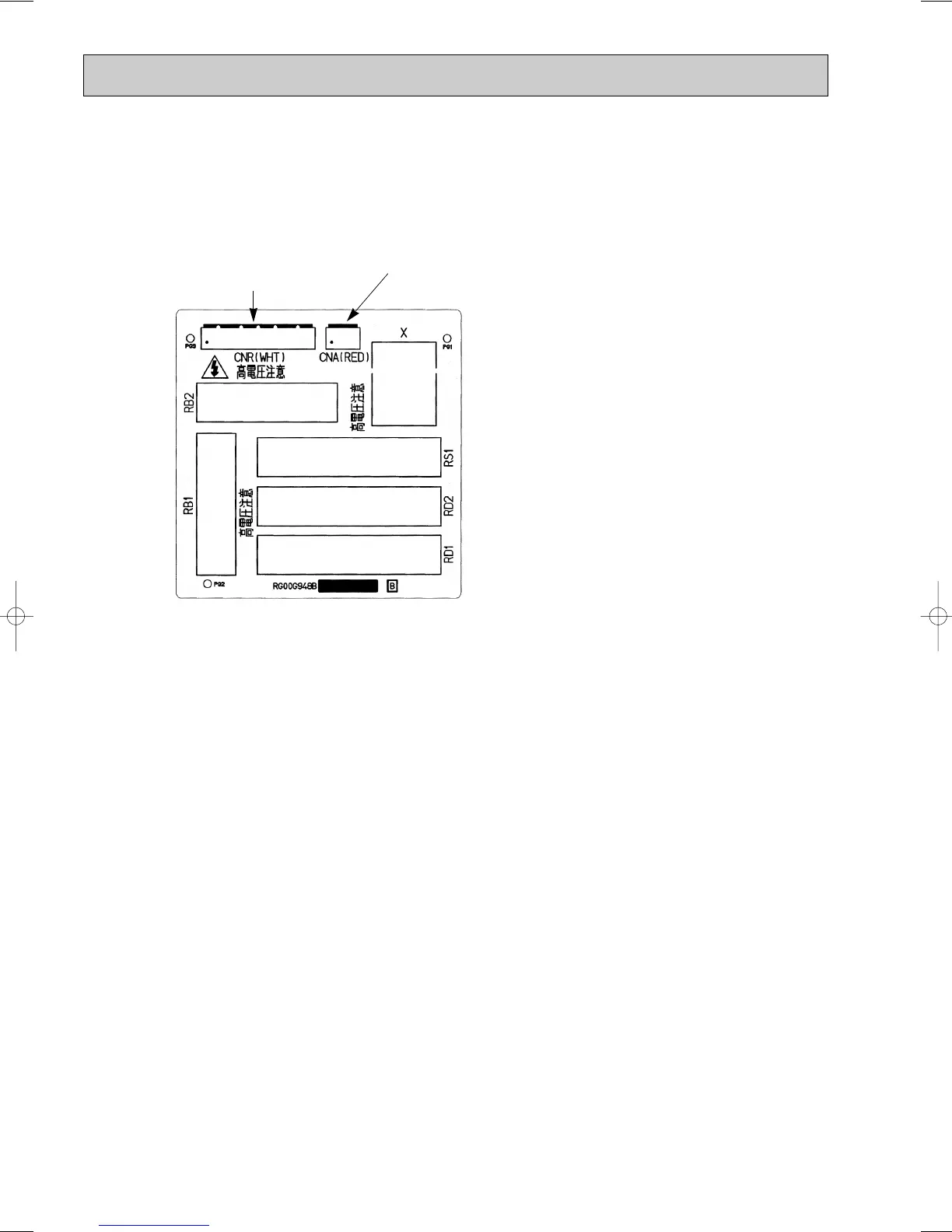

8-8-4. Outdoor resistor board
PUMY-125YM
PUMY-125YM1
PUMY-125YMA
CNR
Connect to the outdoor
power supply board (CNR)
CNA
220-240V AC
Connect to the noise filter (CNA)
OC183E--4.qxp 10.5.6 0:54 PM Page 94
