8
COMMUNICATION WITH INTELLIGENT FUNCTION
MODULE
8.1 Communication Between CPU Module and Intelligent Function Modules
8.1.1 Initial setting and auto refresh setting by GX Configurator
8 - 4
1
Overview
2
Performance
Specification
3
Sequence Program
Configuration and
Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files
Handled by CPU Module
6
Functions
7
Communication using
built-in Ethernet ports of
CPU module
8
Communication with
Intelligent Function
Module
(b) Auto refresh setting
For the auto refresh setting, designate the device at the CPU module to store the
following data.
• Digital output of Q64AD
• Maximum/minimum values of Q64AD
•Error code
The auto refresh setting of Q64AD is designated on the following auto refresh
setting screen of GX Configurator (Figure 8.2).
The designated auto refresh setting data is stored in the intelligent function
parameters of the CPU module.

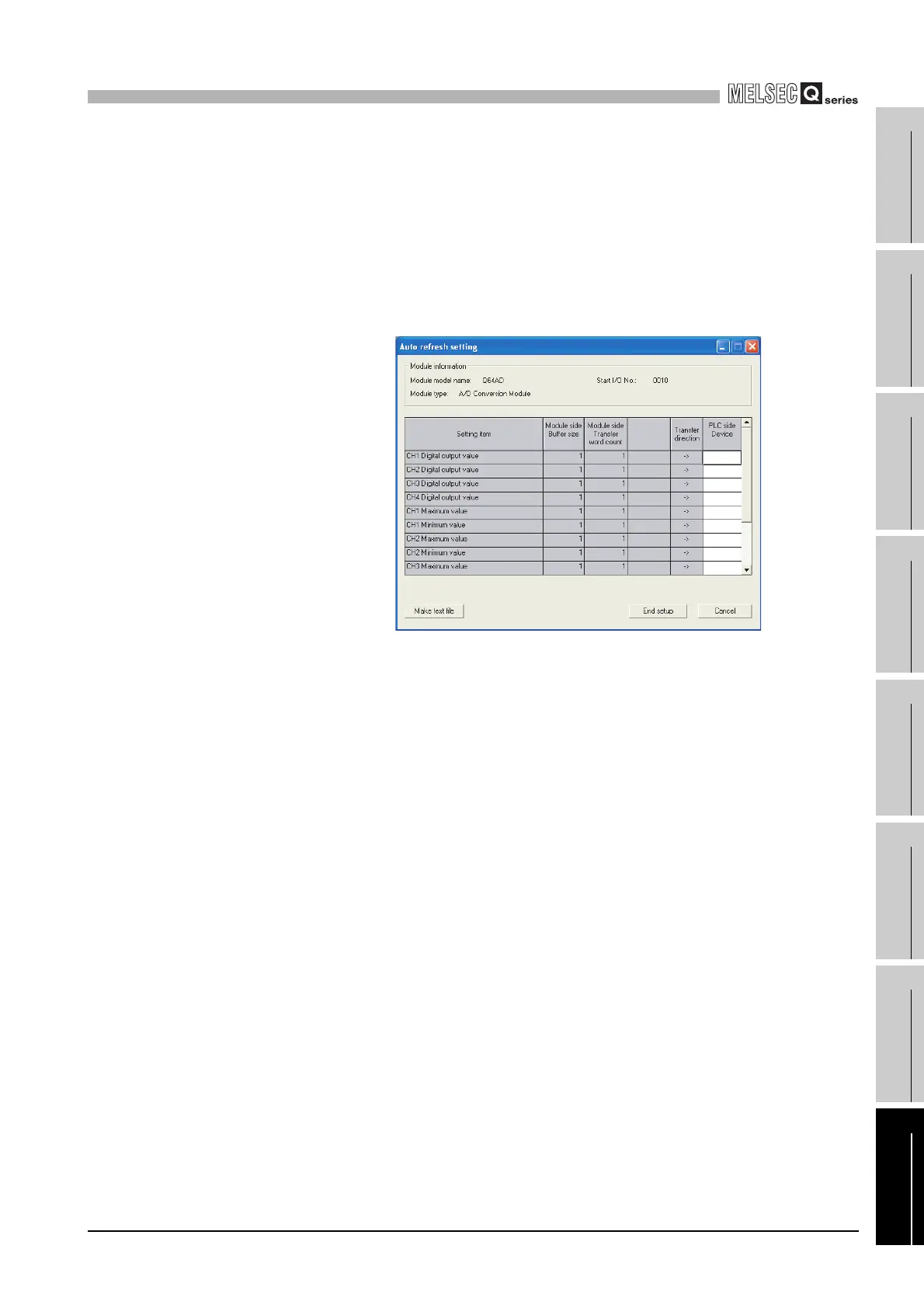

Figure 8.2 Auto refresh setting screen
To Next Page
